Home > Products > Refrigeration Equipment > Ammonia Pump

Good quality Hermetic liquid pump CAM2 6 AGX6 5

FOB Price:

Get Latest Price

Min.Order Quantity:

1 Set/Sets

Supply Ability:

1000 Set/Sets per Year

Port:

Qingdao

Place of Origin:

Liaoning, China (Mainland)

Payment Terms:

L/C,D/P,T/T,Western Union

Brand:

Hermetic

Products Model:

CAM2/6/AGX6.5

Products Details
Company Profile

Quick Details

Brand Name: Hermetic

Model Number: CAM2/6/AGX6.5

Place of Origin: Liaoning, China (Mainland)

Packaging & Delivery

Packaging Details: Standard plywood carton
Delivery Detail: 30 days after payment

Specifications

Product Description

Product Application

Hermetic canned motor pumps ,CAM2 and CNF aeries are designed especially for refrigeration application .CAM2 series are multistage while CNFseries are single stage pumps and both CAM2and CNF are horizontal construction with axial suction branch and radial discharge branch.

Refrigerant Canned Motor Pump Data Sheet
Motor type	Rated power		Speed (r/min)	Rated Voltage(V)	Frequency	Rated current	Power factory cos	Ins.class	Enclosures
Motor type	P1	P2	Speed (r/min)	Rated Voltage(V)	Frequency	Rated current	Power factory cos	Ins.class	Enclosures
AGX3.0	4.6	3	2675	380	50	8.0	0.87	H	IP55
AGX4.5	6.4	4.5	2692	380	50	11.1	0.88	H	IP55
AGX6.5	9.3	6.5	2700	380	50	16.8	0.84	H	IP55
AGX8.5	11.5	8.5	2837	380	50	22.1	0.79	H	IP55

Main Features

1)The material of the slide bearing sleeve for hermetic refrigeration pumps is 2Cr13,with hardened working surface .

2)Slide bearing bush material is metal-impregnated carbon,coded FH82A.

3)In Hermetic Refrigeration pumps,only high-pressure inner circulation is applied. compact constitution,reduce pipeline's setting.

4)This kind of hi-pressure inner circulation can ensure in the rotor space certain pressure.it is an effective method to avoid cavitation when the temperature of the liquid increases.

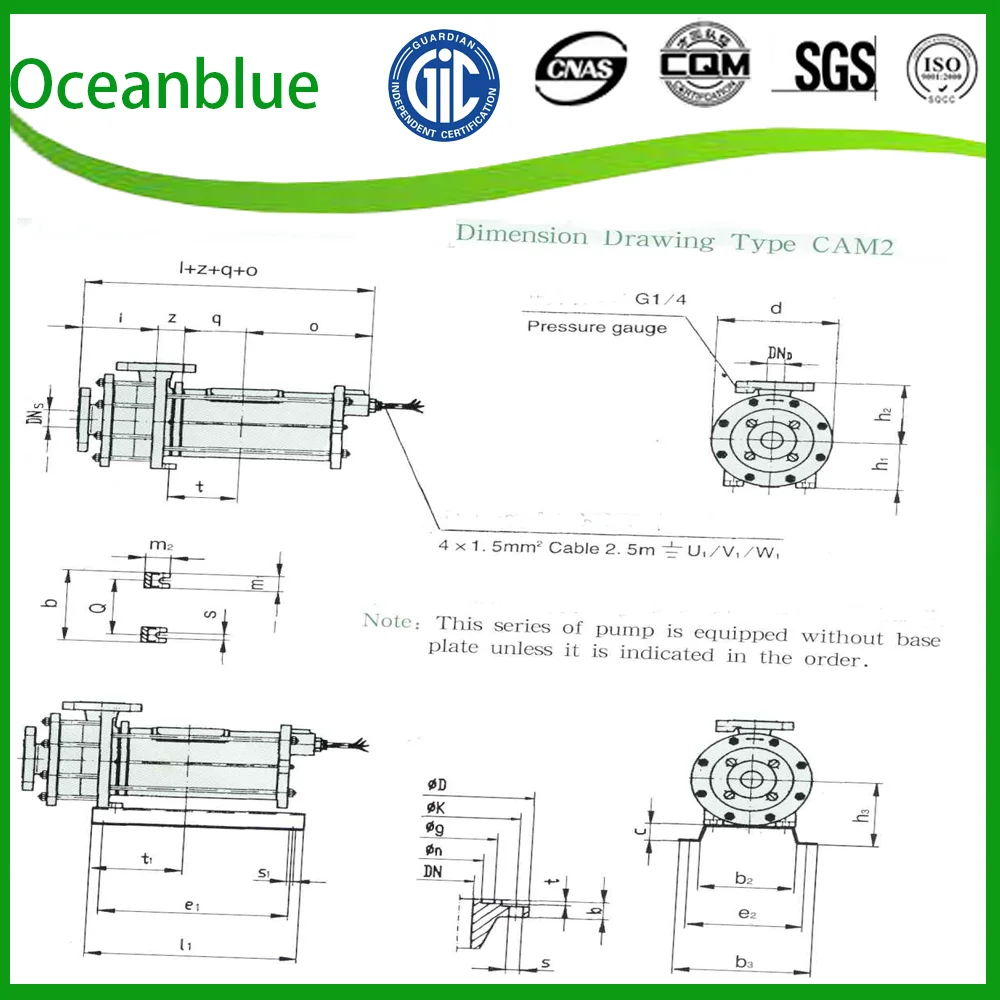

Dimension Drawing

Product details

Packing & Delivery

Case draw
