Electric heated glass doors with energy saving aluminium frame for display refrigeration equipment

Electric heated glass doors with aluminium frame for display freezer refrigeration equipment.

Feature:

1. Electrothermal fogremoving double hollow glass.

2. Heated glass door eliminates condensation.

3. 90 degree backstop and self-return device, high torsion self closing freezer door.

4. Thermal insulation function, good temperature control to keep food fresh.

5. Snap-in door gasket for easy replacement.

6. LED tube in the frame.

7. Safety glass door.

8. Energy-efficient glass door.

9. Environmentally-friendly glass door.

10. Quick and simple installation.

Detailed information of refrigerator glass doors:

	Description	Photo

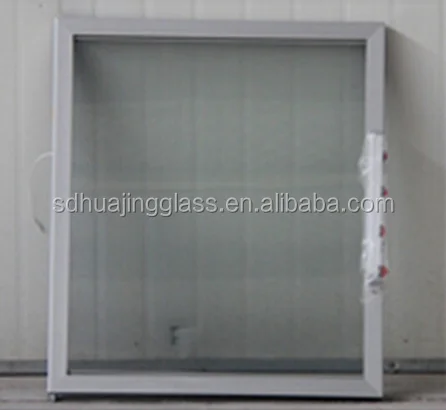

Anti-fog glass door         Glass door size:  760mm (W) * 1800mm (H)	Power supply: 220V/50HZ 3 layer glass with 1 electric heating LOW-E glass Temperature: from -15deg.cels to -30deg.cels Three glasses are tempered glass Self-closing system Gasket with magnet 90 degree hold-open function

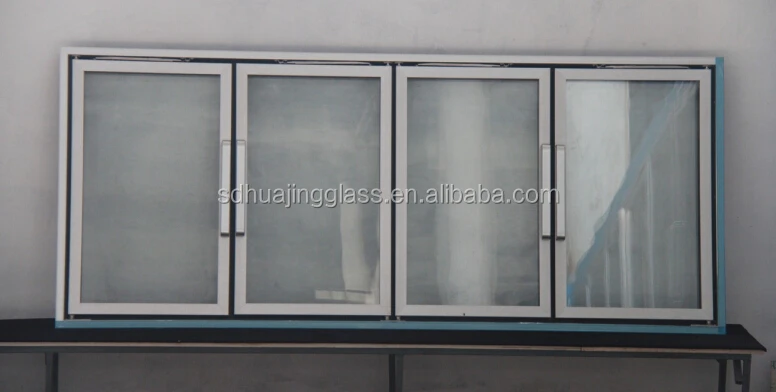

4 doors per framework   Glass door frame work size: 3130mm (W)*1857mm(H)	Power supply: 220V/50HZ Aluminium alloy frame 4 glass doors per framework With led light system and heating wires With aluminium alloy handle 90 degree hold-open function
5 doors per framework     Glass door frame work size: 3903mm (W)*1857mm(H)	Power supply: 220V/50HZ Aluminium alloy frame 5 glass doors per framework With led light system and heating wires With aluminium alloy handle 90 degree hold-open function

Doors:

Above zero C degree (for cooler)

Standard combination:

Outer glass:       4mm tempered

Air space:           15mm  air gap

Inner glass:        4mm Low-e coated

Alternative combination:

Outer glass:       4mm tempered

Air space:           15mm (Argon filled)

Inner glass:        4mm Low-e coated

Below zero C degree (for freezer -18 to -25 C)

Standard combination:

Outer glass:       4mm tempered Low-e coated with heather

Air space:            20mm (Dry air or Argon filled)

Intermediate glass:  3.2mm tempered

Inner glass:        4mm tempered

Detailed pictures of glass door:

Company information:

ShanDong HuaJing Household Appliances Glass Co.,Ltd

1.  Completely design, R&D, manufacturing, trade and logistic system

2.  More than 60 high-precision production equipments

3.  Excellent team, advancing corporate culture

4.  Ultra-clean dust-free workshop, trict quality testing, safe packaging

5.  Cover an area of 90,000 square meters( workshop area 35,000square meters) with more than 200 workers.

6.  OEM & ODM welcomed, We can produce according to your requirement with specification provided ,OEM order is acceptable and warmly welcomed, as per your requests in color, style, logo and size.

Packing:

Note: inner EPE foam pack each door, and then plywood case or strong wooden cartons to pack outside to keep the glass doors not damaged during the whole shipping.

Our certificate:
