220V 12V 24V 4 20ma on off type 5 wire electric actuator

FOB Price:

US 20-500 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

30000 Piece/Pieces per Month

Port:

Tianjin

Place of Origin:

Tianjin, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal

Brand:

Products Model:

CTB

Products Details
Company Profile

Quick Details

Brand Name: TF

Model Number: CTB

Place of Origin: Tianjin, China (Mainland)

Packaging & Delivery

Packaging Details: carton,wooden box
Delivery Detail: 3-5 work days,8-14 work days,20-30 work days

Specifications

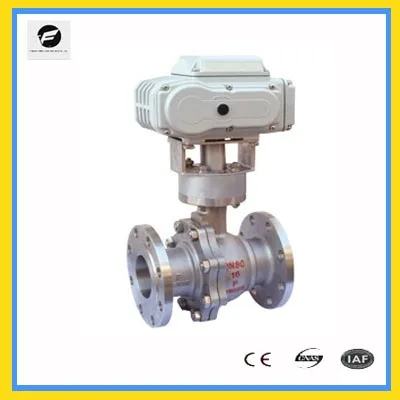

Product Name :4-20ma on-off type 220v 24V 12v quarter turn electric Motorized Valve Actuator with signal feedback

Product Class:CTB Series Valve actuator 4-20ma on-off type 24v dc quarter turn mini electric actuator

4-20ma on-off type 220v quarter turn mini electric actuators for valves

4-20ma on-off type 220v 24v quarter turn mini electric valve actuator

4-20ma on-off type 12v 24v ac220 quarter turn mini electric actuator

on-off type 4-20ma Motorized 12v damper actuator

220V 12V 24V 4-20ma on-off type 5 wire electric actuator

Product No. :4-20ma on-off type 220v 24V 12v quarter turn electric Motorized Valve Actuator with signal feedback

Product Content : 220 v 24V dn150 Cast Iron electric butterfly valve

Product Name :CTB-010 Cast Iron butterfly valve

Product Class:CTB-010

It is widely applied to the fields of petroleum, chemical plant, paper making, spinningmill and sewage farm.4-20ma on-off type 220v 24V 12v quarter turn electric Motorized Valve Actuator with signal feedback

Main technical parameters

Power: 24vdc, 230vac
1) Nominal size: DN 15-300mm
2) Nominal pressure: ANSI 150-600lbs
3) Flange standards: ANSI
4) Leakage class: ANSI VI
5) Body's material: WCB/SS

Characteristics:
1) Quick open
2) Temperature range: -40~+180°C

Selection Table parameters:

	CTB-005	CTB-010	CTB-016	CTB-025	CTB-050	CTB-100	CTB-200
Power Supply	AC220V,AC380V,DC24
Torque	50NM	100NM	200NM	40NM	500NM	1000NM	2000NM
Open/close time	10-30s	15-30s	10-30s	10-30s	10-30s	10-30s	10-30s
Open/close time	10-30s	15-30s	15-30s	15-30s	15-30s	15-30s	15-30s
Power	10W	23W	40W	80W	90W	100W	100W
Current	210mA	250mA	400mA	750mA	800mA	900mA	900mA
Motor	10W/F	23W/F	40W/F	80W/F	90W/F	100W/F	100W/F
Protection	Thermal protection
Input signal	4-20mA.DC
Input signal	1.5V.DC
Output signal	4-20mA.DC
Rotation angle	90,70°
Ambient temperature	-25-60°C
Pressure value	1500VAC/s
Weight	2.3KG	4.0KG	7.3KG	8KG	8.4KG	12KG	12KG
Installation angle	Any angle
Waterproof	IP65
Box material	ALUMINIUM
Manual operation	Attached to the handle
Limit	Electrical machinery

Contact :

Contact: Miss Cherry Yue

Email: tf.coc(at)tfjt.com

Phone:+8615922024814 (wechat / whatsapp)

Skype:cherryyue0328(at)yahoo.com

Tianjin Tianfei High-Tech Valve Co., Ltd. is a professional manufacturer, specialized in electric valve, motorized valve and electric actuator in China with more than 9 years' experience.

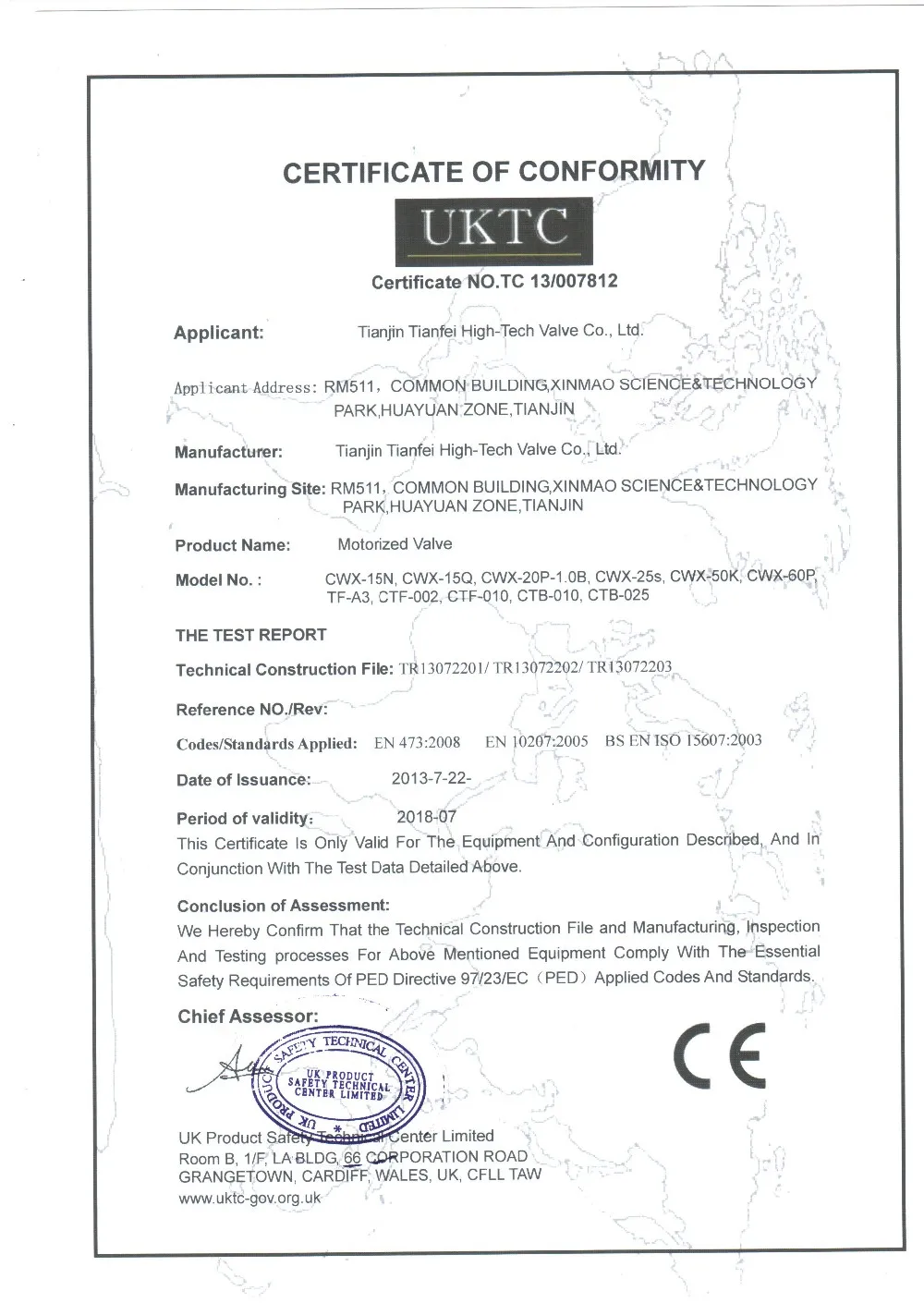

Especially, the high-quality products -- mini electric water valve "CWX-15Q" has long using life in more than 100,000 times with CE certification. The main markets are in America, Russia and the United Kingdom. Also we hope to find a way to cooperate with all new clients from the world.
