2-way DN50 stainless steel 304 motor electric valve 24VAC and 220VAC for washing machines,water heaters,industrial humidifier

FOB Price:

US 75.00 / Piece

Min.Order Quantity:

1 Piece

Port:

Place of Origin:

0~ 60 degree celsius

Payment Terms:

Brand:

2-5 wires

Products Model:

IP67

Products Details
Company Profile

Quick Details

Standard or Nonstandard Standard: Standard
Standard or Nonstandard: Ball
Structure Ball: Medium Pressure
Structure: electric/motorized /motor
Pressure Medium Pressure: Stainless Steel
Pressure: Medium Temperature
Power electric/motorized /motor: Pure water,water,50% glycol,Oil,Air
Power: 1/2’ to 4’
Material Stainless Steel: Tianjin, China (Mainland)
Material: CTF010
Temperature of Media Medium Temperature: TF
Temperature of Media: General
Media Pure water,water,50% glycol,Oil,Air: DC12V,DC24V, AC220V,
Media: 500mA
Port Size 1/2’ to 4’: 100NM
Port Size: 1.6Mpa
Place of Origin Tianjin, China (Mainland): 0~ 60 degree celsius
Model Number CTF010: IP67
Brand Name TF: 2-5 wires

Specifications

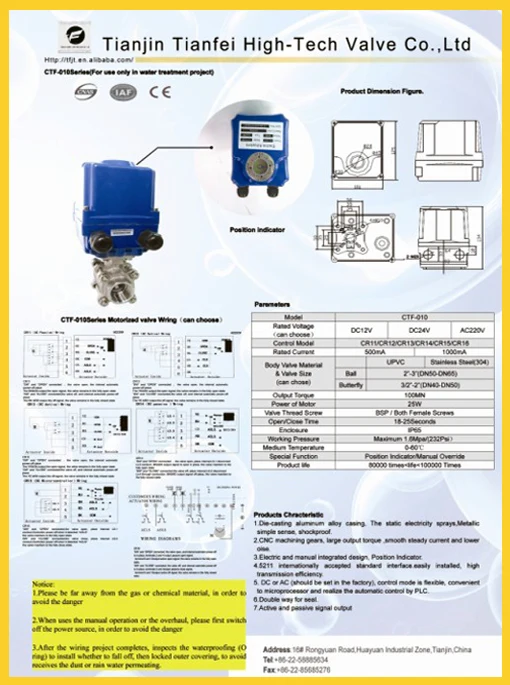

2-way DN50 stainless steel 304 motor electric valve 24VAC and 220VAC for washing machines,water heaters,industrial humidifier

New alloy material shell

Metal gear, large output torque
Active  and  Passive signals output
Voltage :  AC 220V / 50Hz
With manual function, with open/clsoe indicator.
Power : 14W
Working current: 500mA
Actuator code:  CTF series

Voltage:DC12V,DC24V, AC220V,
Torque output: 25 NM- 100NM
Working Pressure: 0-1.6 Mpa(16bar)
Temperature:0 to 100 Degree Celsius
Size Scope: ball valve,15-65(mm); butterfly valve 40-125(mm)
Open/Close time: 10 -- 25sec
Number of wires: 2-5 wires
Protection class : IP67

Series CTF actuators with its smart design, wonderful shape, are suitable for many kinds of vavles. It has proved its superior quality for its stable nature, and good quality. These actuators are return type and suitable to DC or AC (will be set in the factory), can be controlled by outside cut off. This actuator run low cost and does not need to be maintained.

DC or AC (should be set in the factory), control mode is flexible, convenient to microprocessor and realize the automatic control by PLC.
Manual/electrically operated integrated design, Simply to operate.
Large output torque, inner protecting overheated device, working stable and reliable.
Low noise, good leak-proof. Through the coupling, the valve will be installed and operated easily.

Tianjin Tianfei High-Tech Valve Co., Ltd. is a professional manufacturer, specialized in electric valve, motorized valve and electric actuator in China with more than 9 years' experience.

Especially, the high-quality products -- mini electric water valve "CWX-15Q" has long using life in more than 100,000 times with CE certification. The main markets are in America, Russia and the United Kingdom. Also we hope to find a way to cooperate with all new clients from the world.

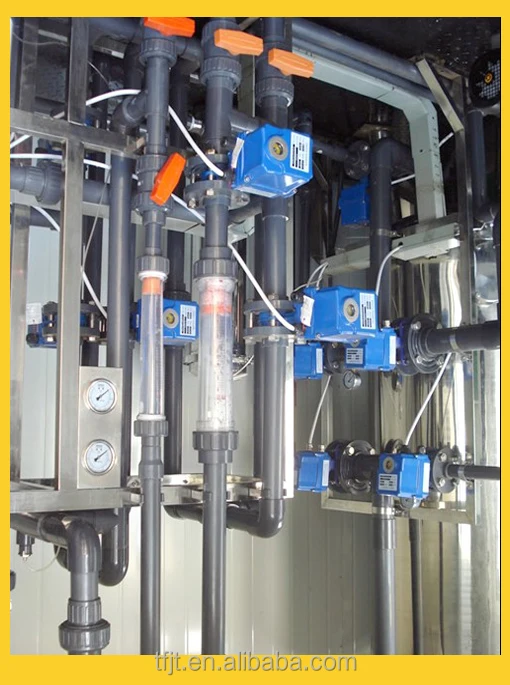

TF's products can be used in diversified fluid control, including air, gas, water, etc. Electric actuators are suitable for installing ball valves and butterfly valves. Our electric valves and actuators can be applied to water treatment, HAVC, automatic control system, drinking water, air handling unit and fan coil and solar application, etc.

We would like to grow business with you. Contact us, let's talk more!
