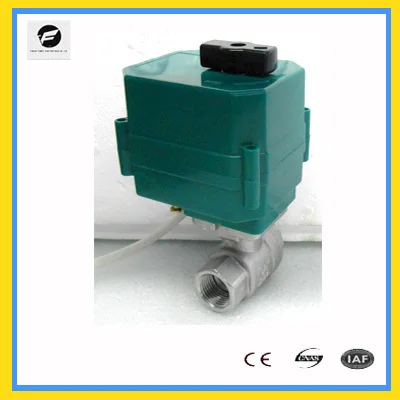

stainless steel 304 316 electric control drking water ball valve with maunal override function ISO5211 with 3 6v 12v 24v 220v

stainless steel 304/316 electric control drking water ball valve with maunal override function ISO5211 with 3-6v 12v 24v 220v

Parameter

Actuator rotation: 90/180 degree
Actuator Motor:Reversible synchronous motor
Ball Type:T or L flow(for 3-way valve)
Color:Various
Control mode:2,3,5 wires(CR01/02/03/04/05/06)
Control Way:on/off,open autimatically when power-of,3-wires control,5-wires for signal feedback
Enclosure:IP65
Low Working Current:80mA~150mA
Medium temperature: 0-100°C
Open/close time:<12sec
Output torque:10N.m
Power Consumption:<25W
Pipe Connection:G/BSP,ANSI/NPT
Pressure:1.0Mpa/150psi/PN10
Product life: 100,000 times
Rotation direction: Double acting
Size: 1/4"-2'
Special function:Position indicator,signal feedback,manual override,fail safe(auto-return) function
Voltage:DC3-6V,DC5V,DC12V,DC24V,AC/DC9-24V,AC110V,AC120V,AC220V,AC230V
Valve body Material: Stainless steel (304, 316), Brass(Hpb58-3/59,Ni plated Barss
Valve End:BSP(British Standard)&NPT(ASSI) Thread
Working pressure: 1.0Mpa/10bar/150psi
Working Medium:Pure water,water,50% glycol,Oil,Air

Features:

1.All-metal reducing gear
2.Available for 3-6VDC,12VDC,24VDC,110V/120VAC work volatge
3.Electrical limit and machinery limit design,accurate position,avoid gear with switch.
4.Excellent sealing performance what sealing class is IP65
5.Float ball structure,no leakage,especially suitable for heavy pollution conditions.
6.Good substitution for solenoid or pneumatic valve.
7.High flow capability, 3 times flow rate more than traditional zone valves
8.High protection class,can be worked in moist conditions.
9.Large output torque, which suitable for the pipe system with much scaling.
10.Long service life 70,000 to 100,000 circles
11.Low working current, only 60 to 80mA
12.Mini dimension suits for small equipment
13.Multi-angle assembling,easy to install.suitable for both vertical and horizontal installation
14.Optional manual lever for convenient operation when power is off
15.Patent technology of scale prevention design which can postpone the scaling time.
16.Small volume, compact structure, small and exquisite outlooks, various assembling methods with manual control and switch indication.
17.Smart shape,perform reliably,brass gear,PPO parts,large output torque.
18.Smooth flow, no block up
19.Tight close, no leakage
20.The power is cut off when the valve reaches the on/off position
21.The actuator cover adopts close structure which is resistive to humidity and ensures reliable operation for motor
22.This ensures long life service for the actuator

Material of main parts:

Actuator: heat-resistant ABS
Body: brass or stainless steel
Ball: brass or stainless steel
Sealing: PTFE, silicon rubber ball seat, EPDM and NBR stem seat, NBR o-rings
Stem: brass or stainless steel

Situable for/Applications:

1.Air-warm valve.HVAC and fire works.
2.IC card meters,heat energy meters
3.Irrigation equipment,drinking water equipment,solar water heaters,washing machines,water heaters,industrial humidifier.
4.HVAC
5.Multiple voltage and control mode, applicable to a variety of occasions.
6.Replacing solenoid valve, particularly when solenoid cannot work reliably
7.Solar thermal,under-floor,rain water,irrigation,plumbing service,hot water heating and solar glycol loop,ideal for off-grid system.
Domestic/potable water,Irrigation system,cooling/heating system,Low voltage plumbing system
8.Small equipment for automatic control
9.Water equipment,auto-control watersystem,industrial mini-auto equipment, Small equipment for automatic control
10.Water treatment
Model Number
CWX-15/CWX-1.0/CWX-60/CWX-25
