CWX25S 3 way DC5V 1/2" and 3/4" stainless steel electric motor valve with manual override

FOB Price:

US 15.00 / Piece

Min.Order Quantity:

1 Piece

Port:

Place of Origin:

Payment Terms:

Brand:

Products Model:

Products Details
Company Profile

Quick Details

Specifications

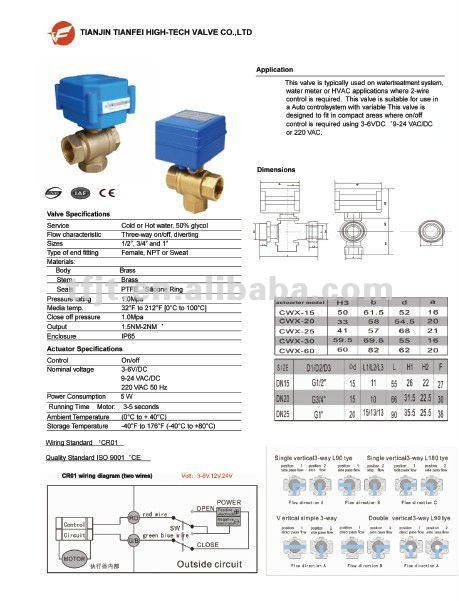

CWX25S 3 way DC5V 1/2" and 3/4" stainless steel electric motor valve with manual override

Features:

Mini dimension suits for samll equipment

Metal gear
Extra long life: 100000 times Min.

Low working current,less 100mA
Protection : IP65

Manual override function is safe and easy

Suitable to :

Water treatment

Quick open/close condition
Water drinking equiments
The Circumstantce Pnematic valve can not worked

HVAC

Technical paremeters:

Size: 1/2'' to 3/4 inches

Material: stainless stell(304,316),brass

Max working pressure:1.0MPa

Actuator rotation:90 degree

Body: Brass SS

Voltage: DC3V-6V 9V-24VDC AC9V-24V

Torque output: 1.5Nm

Working Presure: 0-10 Bar

Temperature: 0 - 100 degree celsius

Size Scope: 15mm~20mm

Open/Close time: 3 seconds

Number of Wires: 2-5 wires

Protection Class : IP65

mini motorized valve,actuated valve,automatic valve,control valve,motor operated valve,motor actuated valve,hydraulic valve.

Tianjin Tianfei High-Tech Valve Co., Ltd. is a professional manufacturer, specialized in electric valve, motorized valve and electric actuator in China with more than 9 years' experience.

Especially, the high-quality products -- mini electric water valve "CWX-15Q" has long using life in more than 100,000 times with CE certification. The main markets are in America, Russia and the United Kingdom. Also we hope to find a way to cooperate with all new clients from the world.

TF's products can be used in diversified fluid control, including air, gas, water, etc. Electric actuators are suitable for installing ball valves and butterfly valves. Our electric valves and actuators can be applied to water treatment, HAVC, automatic control system, drinking water, air handling unit and fan coil and solar application, etc.
