BSP 1 25mm electric motor valve with 3 6V 12V 24V controlled for water HAVC air conditional Heating

BSP 1 25mm electric motor valve with 3 6V 12V 24V controlled for water HAVC air conditional Heating

FOB Price:

US 12-36 / Piece

Min.Order Quantity:

10 Piece/Pieces

Supply Ability:

15000 Piece/Pieces per Month

Port:

New Port,Tianjin

Place of Origin:

Tianjin, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

Tianfei

Products Model:

CWX-15Q

Products Details
Company Profile

Quick Details

Brand Name: Tianfei

Model Number: CWX-15Q

Place of Origin: Tianjin, China (Mainland)

Packaging & Delivery

Packaging Details: Carton,Wooden Box
Delivery Detail: 3-5 work days,8-14 work days,20-30 work days

Specifications

BSP 1'' (25mm) electric motor valve with 3-6V,12V,24V controlled for water,HAVC,air conditional,Heating

motorized valve apply for HVAC,heating,air conditional,water meter,solor,small automatic water control equipment. Replacing solenoid valve, particularly when solenoid cannot work reliably

Features:

   Mini dimension suits for samll equipment
   Metal gear
   Voltage : DC3-6V,12V,24V,220V
   Open/close time: 3 sec
   Extra long life: 100000 times Min.
   Low working current,less 100mA
   Protection : IP65

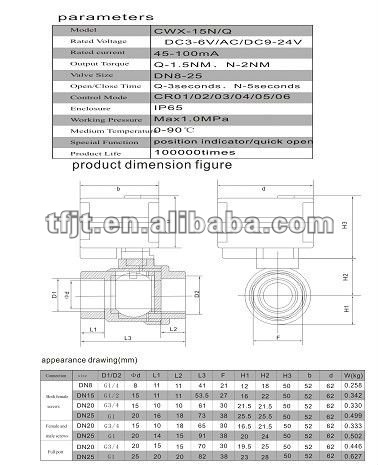

Technical paremeters:

Size: 1'',DN25, 25mm
Material: brass

Max working pressure:1.0MPa

Actuator rotation:90 degree

Body: Brass
Torque output: 1.5Nm

Working Presure: 0-10 Bar

Temperature: 0 - 100 degree celsius
Open/Close time: <5 seconds

Number of Wires: 2-5 wires

Protection Class : IP65

Pls choose one work volt and one wiring No. at follwing diagrams

Tianjin Tianfei High-Tech Valve Co., Ltd. is a professional manufacturer, specialized in electric valve, motorized valve and electric actuator in China with more than 9 years' experience.

Especially, the high-quality products -- mini electric water valve "CWX-15Q" has long using life in more than 100,000 times with CE certification. The main markets are in America, Russia and the United Kingdom. Also we hope to find a way to cooperate with all new clients from the world.

TF's products can be used in diversified fluid control, including air, gas, water, etc. Electric actuators are suitable for installing ball valves and butterfly valves. Our electric valves and actuators can be applied to water treatment, HAVC, automatic control system, drinking water, air handling unit and fan coil and solar application, etc.

We would like to grow business with you. Contact us, let's talk more!
