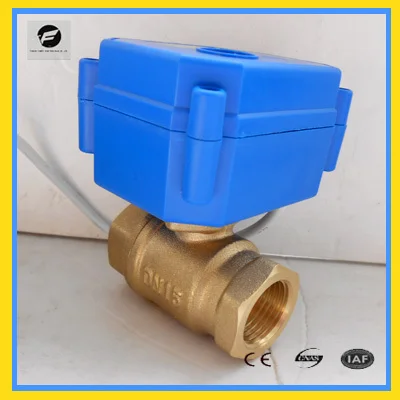

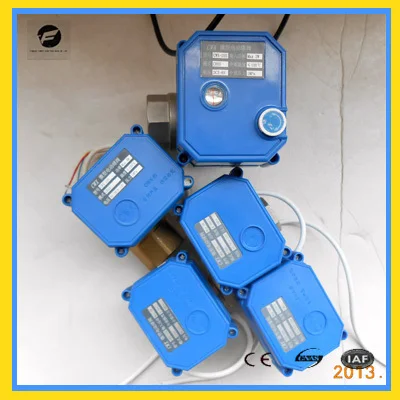

CR01 wiring diagram 2 Way electric ball Valve for Water Treatment water leakage detector system

FOB Price:

US 8-20 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

20000 Piece/Pieces per Month

Port:

Tianjin China

Place of Origin:

Tianjin, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal

Brand:

CWX

Products Model:

CWX15N/Q

Products Details
Company Profile

Quick Details

Brand Name: CWX

Model Number: CWX15N/Q

Place of Origin: Tianjin, China (Mainland)

Packaging & Delivery

Packaging Details: Packaging Detail: Inner packaging: paper box:1~2PC/Paper Box Outer packaging: cartonbox , 30-80PCS/CTN
Delivery Detail: Delivery Detail: 3-5 work days for PO<2000USD via Express

Specifications

Electric ball valve features: excellent capacity of water stoppage, large water flow rate, zero dirt block, low torque, nice design and easy installation.

Description:

Valve Size:	BSP1/2"
Valve Material	SS304
Circulation Medium:	Water,Air
Max Working Pressure:	1.0Mpa
Liquid Temperature	0-90 degrees C
Work Volt:	DC24V
Max Torque:	1.5Nm
Rated Current:	45-100mA
Open/Close Time:	3-5seconds
Working Life:	100,000 Circles
Protection Class:	IP65
Valve Body Material:	SS304
Actuator Material:	Heat-resistant ABS
Sealing Material:	PTFE,silicon rubber ball seat,EPDM and NBR stem seat,NBR o-rings
Manual Override:	No
Actuator Rotation:	90 degrees C
Cable Length:	0.5m
Wiring Control Method:	CR01 CR02 CR03 CR04 CR05

Material:

Valve Body: Hpb58-3 and S304 ;
Valve Seal: Stem: EPDM with double O-ring ;
Ball: PTFE+EPDM with double O-ring;
Actuator enclosure: PC+10GF;
Actuator revolving shaft: POM;

Specifications:

Actuator motor: Reversible synchronous motor
Power supply: AC220V, AC110V, AC24V
Output torque: 1.5~6N.m
Power consumption: <5W
Control way: on/off
Pipe connection: G/BSP/NPT
Media temperature range: 2°C~90°C
Ambient temperature: -5°C~60°C
Running time: 3-5S/50Hz, 3-5S/60Hz
Ambient humidity: <90%
Pressure grade: PN16
Protect rank: IP65

Tianjin Tianfei High-Tech Valve Co., Ltd. is a professional manufacturer, specialized in electric valve, motorized valve and electric actuator in China with more than 9 years' experience.

Especially, the high-quality products -- mini electric water valve "CWX-15Q" has long using life in more than 100,000 times with CE certification. The main markets are in America, Russia and the United Kingdom. Also we hope to find a way to cooperate with all new clients from the world.

TF's products can be used in diversified fluid control, including air, gas, water, etc. Electric actuators are suitable for installing ball valves and butterfly valves. Our electric valves and actuators can be applied to water treatment, HAVC, automatic control system, drinking water, air handling unit and fan coil and solar application, etc.
