CWX-15n DC12V 1/2" 2way mini electric control valve for water sensor system brass 110vac

FOB Price:

US 11.00 / Piece

Min.Order Quantity:

1 Piece

Port:

Place of Origin:

Payment Terms:

Brand:

Products Model:

Products Details
Company Profile

Quick Details

Specifications

CWX-15n DC12V 1/2" 2way mini electric control valve for water sensor system

brass 110vac

Specifications

1 size:1/4"-1" brass/stainless steel 304
2 voltage:3-6V,12V,24V,220V
3 pressure:1.0mpa 16bar 175psi

Product Description

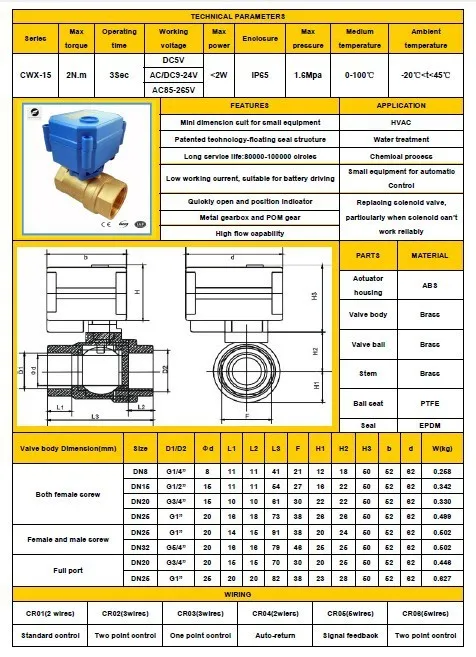

Technical Parameters:

Product size	NPT/BSP 1/2'', NPT/BSP 3/4", NPT/BSP 1'' (Optional)
Maximum working pressure	1.0MPa
Circulation medium	Fluid, Air
Rated voltage	DC5V, DC12V, DC24V, AC/DC9-35V(Optional)
Wiring control methods	2 wires, 3 wires, 4 wires, 5 wires
Working current	≤500MA
Open/close time	≤5 Sec
Life time	70000 times
Valve Body material	Brass, Nickel plated Brass, 304 Stainless steel (Optional)
Actuator material	Engineering Plastics
Sealing material	EPDM & PTFE
Actuator rotation	90°
Max. torque force	2 N.M
Cable Length	0.5m,1.5m (Optional)
Environment temperature	-15°C~50°C
Liquid temperature	2°C~90°C
Manual override	No
Indicator	Yes
Protection class	IP65

Specifications

2 Way Electric solenoid control Valve; water solenoid valve; electric valve, mtorized valve, ball valve, water valve, brass valve for chilled water, dringking water, hvac system, solar system; 230VAC NPT, BSP thread Mini Motorized Ball Valve, Size from 1/4" to 1". AC/dc 5V, 12V, 24V, 110V, 220V. 2-way and 3-way, brass, stainless steel, CPVC 2 way automatic valve electric actuator 3VDC for chilled water
Features:
Mini dimension suits for small equipment
Patented technology-floating seal structure
Long service life 700,000 to 100,000 circles
Low working current, only 60 to 80mA
IP67 and F type are available
Manual override function is safe and easy
Applications:
HVAC
Water treatment
Small equipment for automatic control
Replacing solenoid valve, particularly when solenoid cannot work reliably
Technical parameters:Material of main parts:
Size: 1/2 to 1 inches
Material: stainless steel (304, 316), brass, PPO
Voltage: 5, 12, 24, 110 to 220V AC/DC
Working pressure: 1.0 or 1.6mPa
Actuator rotation: 90 degree
Rotation direction: double acting
Power: maximum 5W
Manual override: available
Actuator: heat-resistant ABS
Sealing: PTFE, silicon rubber ball seat, EPDM and NBR stem seat, NBR o-rings .
Body: brass or stainless steel
Ball: brass or stainless steel
Stem: brass or stainless steel

Company Information

mini motorized valve,actuated valve,automatic valve,control valve,motor operated valve,motor actuated valve,hydraulic valve.

Nominal Size	Pressure	Body	Medium temperature	Enclosure
DN25	0-1.0Mpa	Brass ball valve	-20°C< t <100°C	IP65
Work voltage	Input power	Working current	nominal torque	Open/Close time
DC12V	Max. 4W	60-80mA	2N*M	5 second

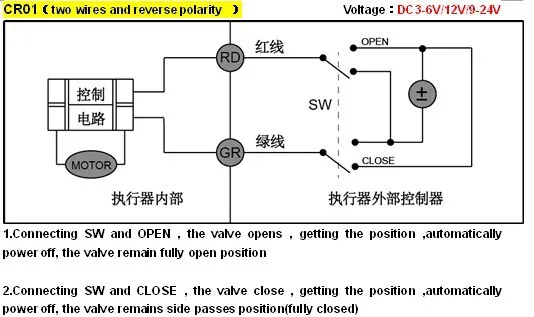

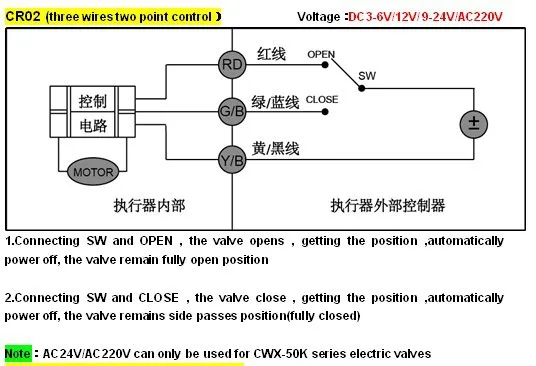

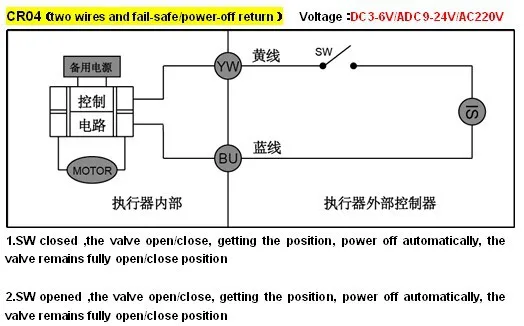

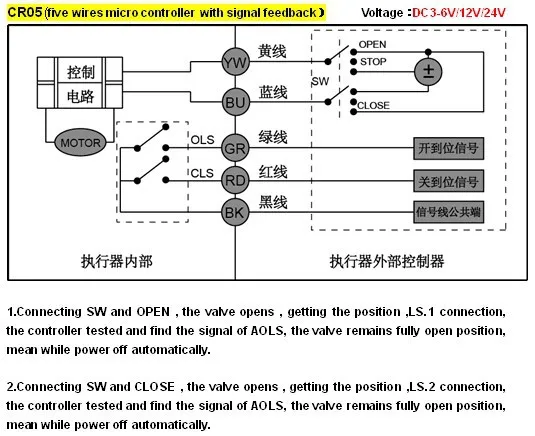

*Wire type: CR01 to CR05

Tianjin Tianfei High-Tech Valve Co., Ltd. is a professional manufacturer, specialized in electric valve, motorized valve and electric actuator in China with more than 9 years' experience.

Especially, the high-quality products -- mini electric water valve "CWX-15Q" has long using life in more than 100,000 times with CE certification. The main markets are in America, Russia and the United Kingdom. Also we hope to find a way to cooperate with all new clients from the world.

TF's products can be used in diversified fluid control, including air, gas, water, etc. Electric actuators are suitable for installing ball valves and butterfly valves. Our electric valves and actuators can be applied to water treatment, HAVC, automatic control system, drinking water, air handling unit and fan coil and solar application, etc.

We would like to grow business with you. Contact us, let's talk more!
