CTF-001 2-way or 3-way brass or stainless steel material 1'' full port electric ball valve 12v 24v for irrigation,water leakag...

FOB Price:

Get Latest Price

Min.Order Quantity:

10 Pieces

Port:

Place of Origin:

Payment Terms:

Brand:

Products Model:

Products Details
Company Profile

Quick Details

Specifications

CTF-001 2-way or 3-way brass or stainless steel material 1'' full port electric ball valve 12v 24v for irrigation,water leakage

Features:
- o Mini dimension suits for small equipment
- o Patented technology-floating seal structure
- o Long service life 700,000 to 100,000 circles
- o Low working current, only 60 to 80mA
- o IP67 and F type are available
- o Manual override function is safe and easy
Applications:
- o HVAC
- o Water treatment
- o Small equipment for automatic control
- o Replacing solenoid valve, particularly when solenoid cannot work reliably

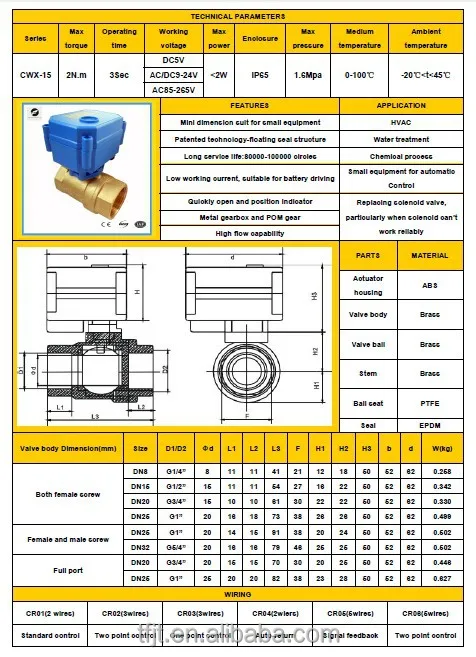

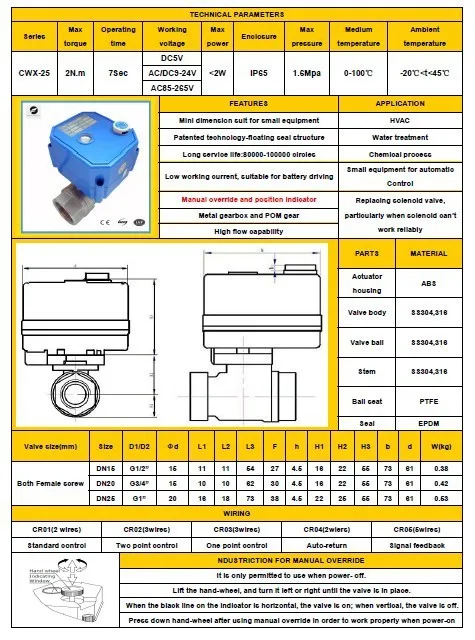

Technical parameters:
- o Size: 1/2 to 2 inches
- o Material: stainless steel (304, 316), brass, PPO
- o Voltage: 5, 12, 24, 85 to 220V AC/DC
- o Working pressure: 1.0 or 1.6mPa
- o Actuator rotation: 90 degree
- o Rotation direction: double acting
- o Power: maximum 5W
- o Manual override: available

Tianjin Tianfei High-Tech Valve Co., Ltd. is a professional manufacturer, specialized in electric valve, motorized valve and electric actuator in China with more than 9 years' experience.

Especially, the high-quality products -- mini electric water valve "CWX-15Q" has long using life in more than 100,000 times with CE certification. The main markets are in America, Russia and the United Kingdom. Also we hope to find a way to cooperate with all new clients from the world.

TF's products can be used in diversified fluid control, including air, gas, water, etc. Electric actuators are suitable for installing ball valves and butterfly valves. Our electric valves and actuators can be applied to water treatment, HAVC, automatic control system, drinking water, air handling unit and fan coil and solar application, etc.

We would like to grow business with you. Contact us, let's talk more!
