CWX-15 series 1/2'' brass 2-way DC12v DC3-6v 3/4'' motorized ball valve electric control

CWX-15 series 1/2'' brass 2-way DC12v DC3-6v 3/4'' motorized ball valve electric control

Details:

1.Model:CWX-15

2.Valve size:1/2’’ (DN15)

3.Valve material(body/ball/stem):brass

4.Working voltage:DC3-6v

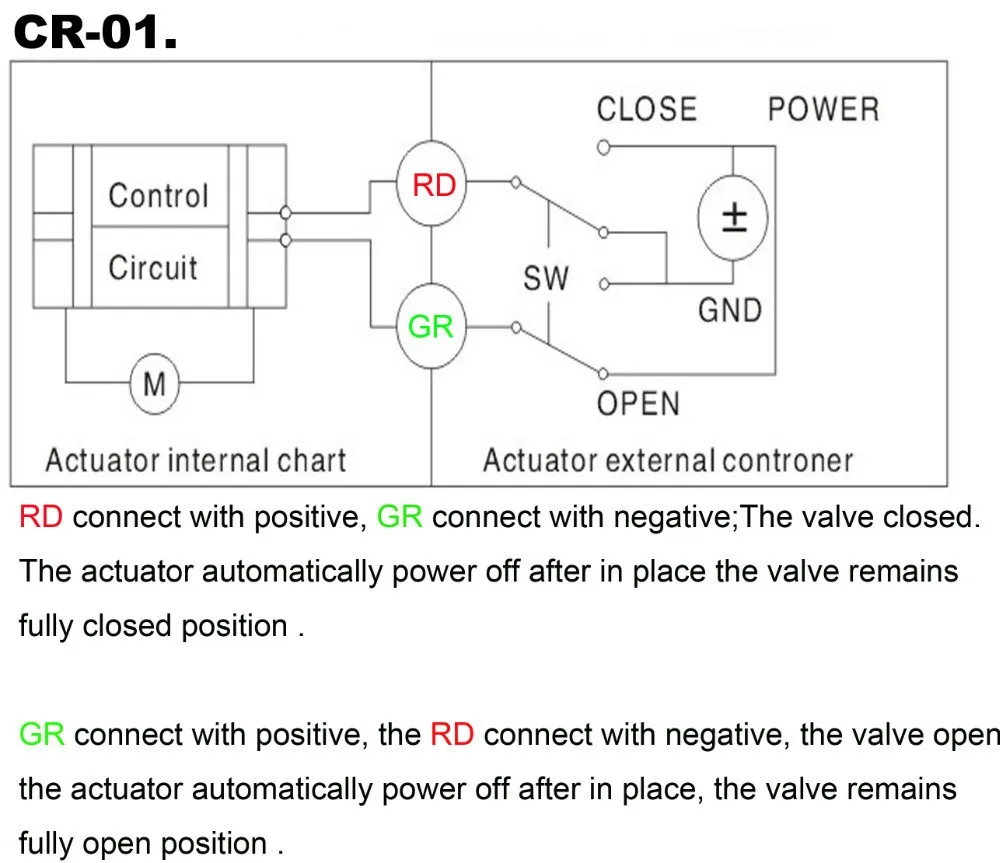

5.Wiring control mode:CR01

6.Connection end:BSP/NPT(NPT for North America)

7.Working current:<100mA

8.Power consumption:<2W

9.Working pressure:1.0MPa/145Psi/10Bar

10.Medium:Water,air,gas,fluid

11.Medium temperature:0-90℃

12.Environment temperature:-15-50℃

13.Actuator torque:1.5Nm/2.0Nm

14.Open/close time:3sec/5sec

15.Working life:100,000 times

16.Protection class:IP65

17.Actuator material:ABS Engineering plastic

18.Actuator rotation:90 degree

19.Sealing material:EPDM$PTFE

20.Cable length:38cm

21.Manual override function:No

22.Position indicator:No

23.Special function:OEM&ODM available

Features:
 1.Smart shape,perform reliably,brass gear,PPO parts,large output torque,long product life for 100,000 times.
 2.Electrical limit and machinery limit design,accurate position,avoid gear with switch.
 3.Multi-angle assembling,easy to install.
 4.Float ball structure,no leakage,especially suitable for heavy pollution conditions.
 5.Good substitution for solenoid or pneumatic valve.
 6.High protection class,can be worked in moist conditions. IP65.

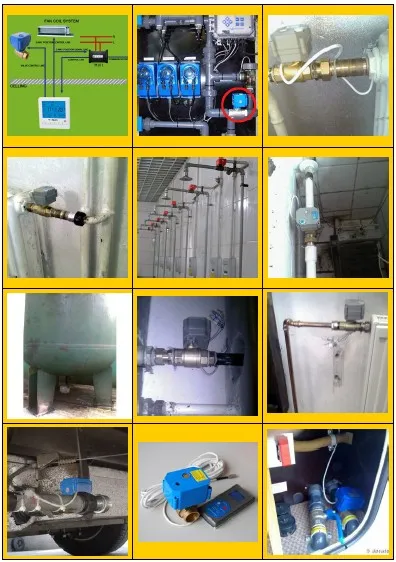

Situable for:
1.IC card meters,heat energy meters
2.Air-warm valve.HVAC and fire works
3.Water equipment,auto-control watersystem,industrial mini-auto equipment, Small equipment for automatic control
4.Irrigation equipment,drinking water equipment,solar water heaters,washing machines,water heaters,industrial humidifier
5.Solar thermal,under-floor,rain water,irrigation,plumbing service,hot water heating and solar glycol loop,ideal for off-grid system
6.Domestic water,Irrigation system,cooling/heating system,Low voltage plumbing system
7.Multiple voltage and control mode, applicable to a variety of occasions
