Brand Name: VENTECH CHINA
Model Number: SCD-VA
Place of Origin: Guangdong, China (Mainland)

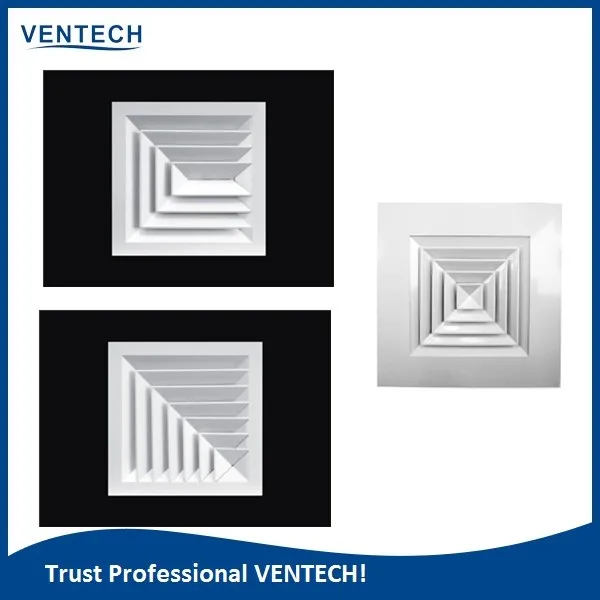

Air Conditioner Aluminum Supply Square Diffuser White Color RAL 9016
| Material | extruded aluminum profile |
| function | air supply ventilation and air distribution |
| shape | square diffuser,rectangular shape 1way 2 way 3way and 4way |
| size | customized made 150x150,225x225,300x300,375x375,450x450 |
| color | white color RAL 9010/9016/9003/9006/aluminum natural anodized color |
| installation | wall and ceiling |
| feature | decorative, four-way air supply, tough and durable |
| optional accessories | opposed blade damper and duct |
| usage | HVAC System terminal for air ventilation |
| sample | free sample |
More details:
| production date | 5-10days can produce a 40HQ 3280pcs 450x450mm square diffuser |
| delivery date | 30days after the confirmation of downpayment |
| payment terms | 30% T/T as downpayment, 70% balance paid before shipment |
| price terms | FOB SHUNDE, CIF, CNF, EX-Work |
| MOQ | 1pcs is avaliable as well |
| delivery method | load in container or pack on pallet by LCL FCL by sea or by air |
| price level | very good coompared with competitors
|
| website | www.htventech.com |
Construction:

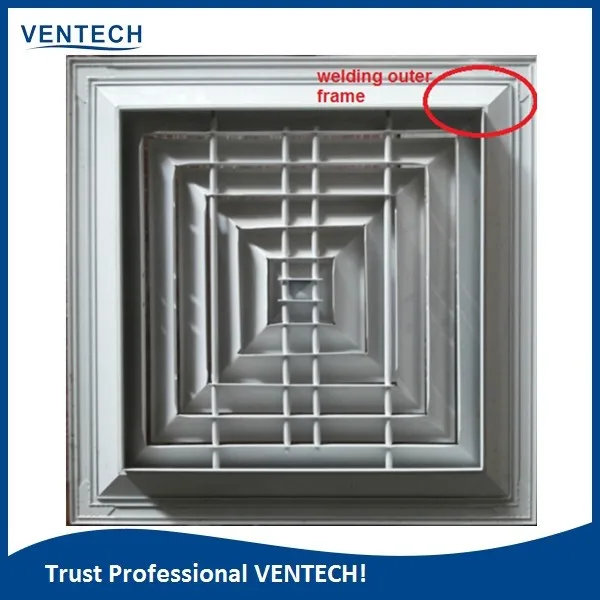

1) frame: high quality aluminum alloy, one-piece inner core and welding outerframe/ one-piece outerframe
2)thickness:0.6mm/0.8mm/0.9mm/1.0mm/1.2mm
3)core; removable core for easy installation
4)color: Customized color or white standard colors
5) face size /neck size: face size=145+neck size

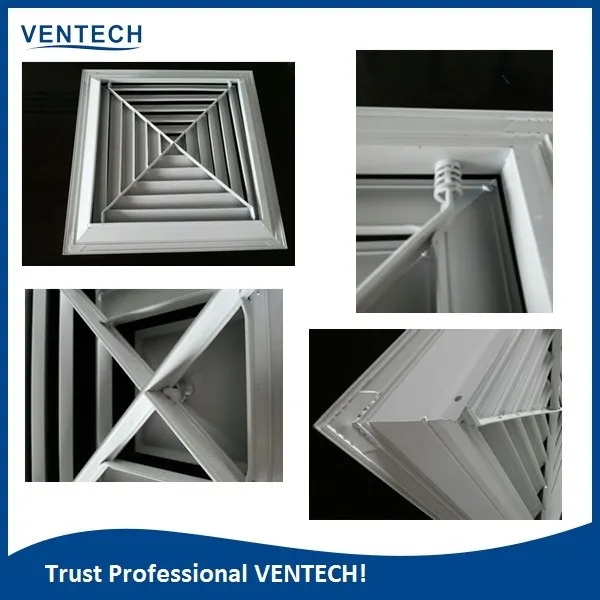

6) accessories: with damper OBD-VA/VB and neck adaptor is optional
Performance Data—SquareDiffuser
SIZE IN MM |
NECK VEL M/S |
2 |
2.2 |
2.5 |
2.8 |
3 |
3.3 |
3.5 |
150*150 F=0.019
|
M3/H |
170 |
190.4 |
212.5 |
232.9 |
255 |
275.4 |
297.5 |
T |
2.5 |
2.8 |
2.8 |
3.1 |
3.1 |
3.5 |
3.5 |
|
P |
0.79 |
0.97 |
1.3 |
1.4 |
1.7 |
2.0 |
2.3 |
|
Db(A) |
15 |
16 |
17 |
19 |
20 |
21 |
22 |
|
225x225 F=0.034 |
M3/H |
380.8 |
428.4 |
476 |
523.6 |
571.2 |
618.8 |
666.4 |
T |
3.8 |
4.1 |
4.4 |
4.4 |
4.7 |
5.0 |
5.0 |
|
P |
0.9 |
1.3 |
1.5 |
1.8 |
2.1 |
2.2 |
2.8 |
|
Db(A) |
18 |
19 |
21 |
22 |
24 |
25 |
26 |
|
300x300 F=0.055 |
M3/H |
680 |
765 |
850 |
935 |
1020 |
1105 |
1190 |
T |
5.0 |
5.6 |
5.9 |
6.2 |
6.5 |
6.8 |
7.1 |
|
P |
1.0 |
1.2 |
1.6 |
1.9 |
2.3 |
2.3 |
3.1 |
|
Db(A) |
18 |
20 |
22 |
23 |
25 |
26 |
28 |
|
380X380 F=0.083 |
M3/H |
1060.8 |
1193.4 |
1326 |
1458.6 |
1591.2 |
1723.8 |
1856.4 |
T |
6.5 |
6.8 |
7.1 |
7.4 |
7.7 |
8.0 |
8.6 |
|
P |
1.1 |
1.5 |
1.9 |
2.1 |
2.5 |
2.8 |
3.3 |
|
Db(A) |
19 |
21 |
23 |
25 |
27 |
28 |
30 |
|
450X450 F=0.115 |
M3/H |
1530 |
1720 |
1913 |
2108 |
2295 |
2485 |
2678 |
T |
7.7 |
8.0 |
8.6 |
8.9 |
9.2 |
9.9 |
10.2 |
|
P |
1.2 |
1.5 |
1.9 |
2.2 |
2.6 |
3.0 |
3.5 |
|
Db(A) |
20 |
21 |
24 |
26 |
28 |
30 |
31 |
|
550X550 F=0.154 |
M3/H |
2081 |
2341 |
2601 |
2861 |
3111 |
3383 |
3641 |
T |
9.2 |
9.9 |
10.2 |
10.8 |
11.4 |
11.7 |
12.0 |
|
P |
1.2 |
1.6 |
1.9 |
2.2 |
2.7 |
3.0 |
3.5 |
|
Db(A) |
20 |
22 |
24 |
26 |
27 |
29 |
31 |
|
600X600 F=0.199 |
M3/H |
2720 |
3060 |
3400 |
3740 |
4080 |
4420 |
4760 |
T |
10.2 |
10.8 |
11.4 |
12.0 |
12.6 |
12.9 |
13.5 |
|
P |
1.2 |
1.6 |
1.9 |
2.3 |
2.7 |
3.2 |
3.6 |
|
Db(A) |
21 |
23 |
25 |
27 |
29 |
32 |
34 |
Notes on Performance Data
T=Throw,m Q=Airflow,m3/h dB(A)=Noise revel

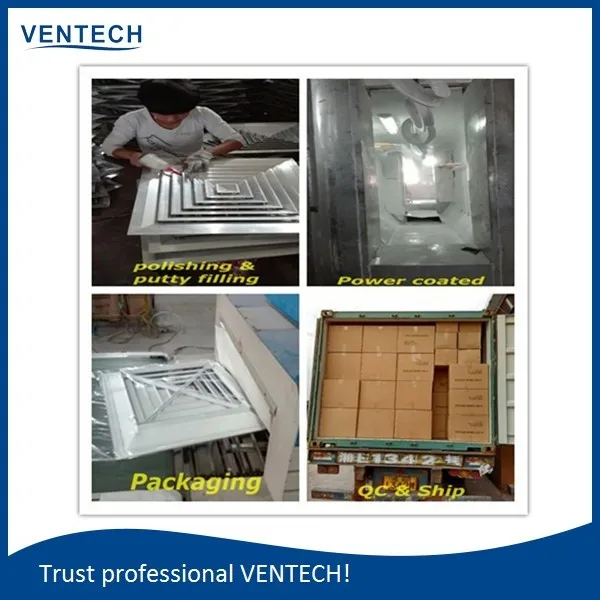

Packing:
1) inner PVC wrap c/w protection corner
2)outer strong carton
3)pallet is for option
Ventech China is a leading manufacturer of air diffusion prducts in China, we produce mainly the air diffuser, damper, grille,HVAC ducts accessories, aluminum louvers and ect.
In our workshope which is located in Foshan city, 7434 square meters, 110workers, there are also 38 sets punching and stamping machines, two sets package line, one set advanced powder coated line.
All our products are made by our own, we are the directly factory can offer you the high quality and best price.
There is only Ventech in China, please kindly notice our brand name very well.
1)Ventech people are very willing to offer you a free sample for checking before placing an order.
2) you're very welcomed to come and have a visit our factory at our working time.
3)E-catalogue and free samples are offered on your requests.
4) Fast delivery date, strict quality control, best quotation and prompt reply are always waiting for you.
