Polyester Fiber Air Filter Cloth for Industry

Polyester Fiber Air Filter Cloth for Industry

FOB Price:

US 1.5-4 / Square Meter

Min.Order Quantity:

1 Square

Supply Ability:

4000000 Square per Meter/Square

Port:

Dalian/Dandong

Place of Origin:

China (Mainland)

Payment Terms:

T/T

Brand:

TianHao

Products Model:

PTFE

Products Details
Company Profile

Quick Details

Brand Name: TianHao

Model Number: PTFE

Place of Origin: China (Mainland)

Packaging & Delivery

Packaging Details: Polyester Fiber Air Filter Cloth for Industry:Rolls with Plastic bags or paper boxes.
Delivery Detail: Shipped in 7 days after payment

Specifications

Polyester Fiber Air Filter Cloth for Industry

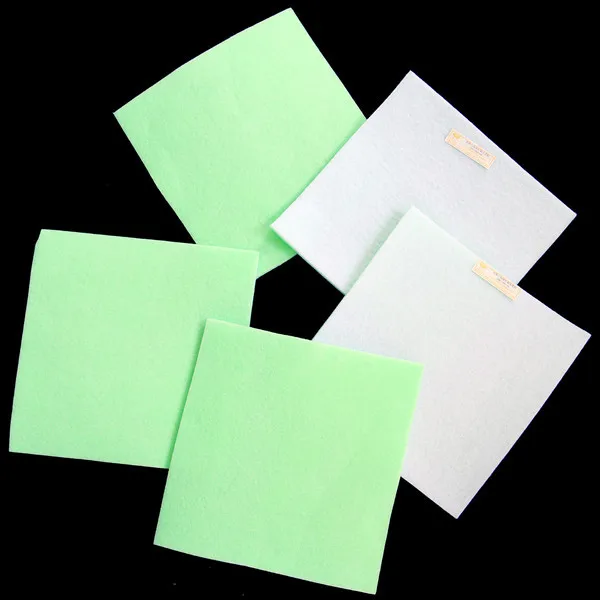

Detail Pictures

Introduction

DE type non-woven air filter media select different thickness three-dimensional hollow fiber and imported low melting point fiber to layer fill at different filling degrees of the rate thus form steps filter manner which has the performance of high tensile strength, low resistance, compact and durable. This type filter material mainly be used to clean air dust from 1μ to 5 μ. It normally can be made into rolling type, flat, and bag filter which are widely used for ventilation and dust removal system of electronic, medicine, automobile, food processing and central air- conditioning device.

Specification Table of Polyester Fiber Air Filter Cloth for Industry

Model	Thickness mm	Filtrate Speed m/s	Resistance		Efficiency %		Capacity g/m²
Model	Thickness mm	Filtrate Speed m/s	Initial	Terminal	Arrestance	count	Capacity g/m²
G4	10-20	2.5	30-45	150-250	80-90		450-650
F5	10	2	44-55	150-250	97.5	41/1.0μm	650
F6	10	2	50-65	200-300	98.6	62/1.0μm	600
F7	10	2	85-100	250-350		85/1.0μm	550
F8	10	1.5	100-150	300-400		91/1.0μm	500
F9	10	1.5	120-180	400-450		96/1.0μm	400

Operating Instructions

Filter efficiency effect and performance can't be affected when working under temperature -40 °C to 120 °C.
It can be repeated use of renewable, namely back blowing method and washing method.
When using in saturate steam or water condition, please specify when ordering.

Production

Package and Delivery

Application

Partners

Exihibit Room

Quality Control

Corporate Culture

More Surprises

Dandong TianHao Clarification Material Co., Ltd. is located on the side of the beautiful Yalu River of China. We are a professional enterprise mainly produces various efficiency levels of non-woven filter material and high efficiency filters. At present, our company can produce filtration products and relative equipments with dozens of models and hundreds of specification. Many products filled the domestic blanks, among which, the DE series filter material with fiber layer of graded density and large dust holding has won Identification of the national scientific research and Science and Technology Progress Award with its unique stepped filtration method.
Guided on science and technology, based on high quality and serve for society is the purpose of survival and development of TianHao Company. TianHao company has established long-term technical cooperation with Tsinghua university, Beijing Institute of Nuclear Engineering and Northeastern University. The Peoples Republic of China Machinery Industry Standard Non-woven adhesive fiber layer filter for gas purification which has been promulgated on 2006 was jointly drafted by our company and Northeastern University.
TianHao company has passed ISO 9001:2008 and established perfect quality control system based on this international standard. Now our company has large filter media production lines bag filter production line and HEPA production line. At present, the variety and technical content of the filter material and filters we produced are all in a leading position. The technical performance of some products has exceeded similar imported products. Meanwhile, TianHao Company can make edible mushrooms project, clean projects of electronics and pharmacy and air compressor air inflow filter project of petrochemical industry.
TianHao Company has advanced filtration testing equipment. According to customers requirements and applications, we can use varieties of particles and methods to test, such as weight method, particle sizing and counting method, sodium flame method, MPPS method and DOP/DOS method.
TianHao Company would like to provide you high quality service with sincerity and super technology.
