air ceiling ventilation aluminum double deflection grille supply air grille supply fresh air grille

air ceiling ventilation aluminum double deflection grille supply air grille supply fresh air grille

Price:

Get Latest Price

Min.Order Quantity:

10 Piece/Pieces

Supply Ability:

10000 Piece/Pieces per Week

Port:

Shunde China Port

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

OEM

Products Model:

DDG-VA

Products Details
Company Profile

Quick Details

Brand Name: OEM

Model Number: DDG-VA

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: Packing of air diffuser: Inner PVC bag + outer strong carton + extra pallet/ wooden case
Delivery Detail: Shipped in 30 days after payment

Specifications

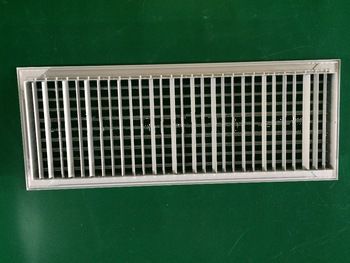

Double Deflection Air Grille

Air grilles are widely used in HVAC ventilation system as the air supply or air return grilles. With adjustable blades, it is easier to adjust the air flow direction according to the practical needs. It has one layer grille and double layers grille.

Single deflection air grille can adjust up and down of the air direction. Return air outlet can be used with filter. The blade angle can be adjusted.

Double deflection air grille is usually used as air supply outlet and also can be used directly with fan coil unit. It is widely used in central air conditioning terminal equipment. Double deflection air grille also can be used with multi-blade opposed air damper used for adjusting the air volume .

Material: Aluminum, thickness 1.0mm

Features:

1.DDG air grille is made up of two sets of air blades, vertical set in front and the horizontal set behind.
2. The blade can be adjusted in any direction between o~180 degree. With the adjustment of different angle of the blade, you can get different reach distance and diffusion angle.
3. It is generally used for supply air or return air.

1.DDG air grille is made up of two sets of air blades, vertical set in front and the horizontal set behind.

2. The blade can be adjusted in any direction between o~180 degree. With the adjustment of different angle of the blade, you can get different reach distance and diffusion angle.

3. It is generally used for supply air or return air.

Accessories: Oppose Blade Damper optional
Installing: Mounting by screws or spring clips.

Surface Finish:

Powder coated color finish as per RAL color----standard color: RAL9016, 9010

Drawing:
