SR1535 split pressurized solar water heater controller for Australia and New Zealand market

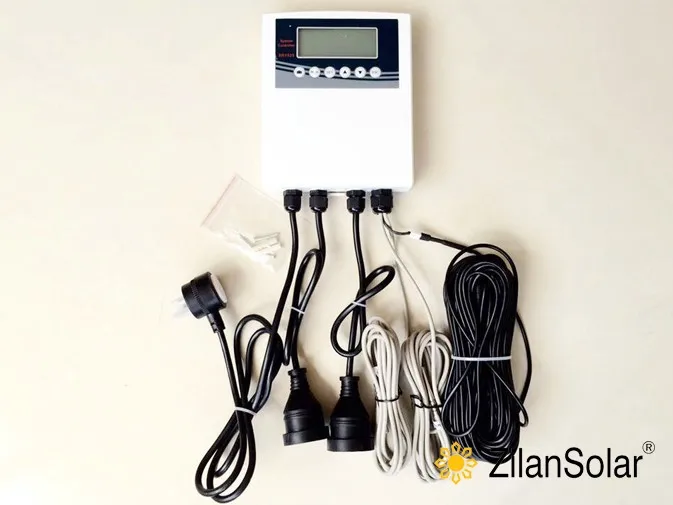

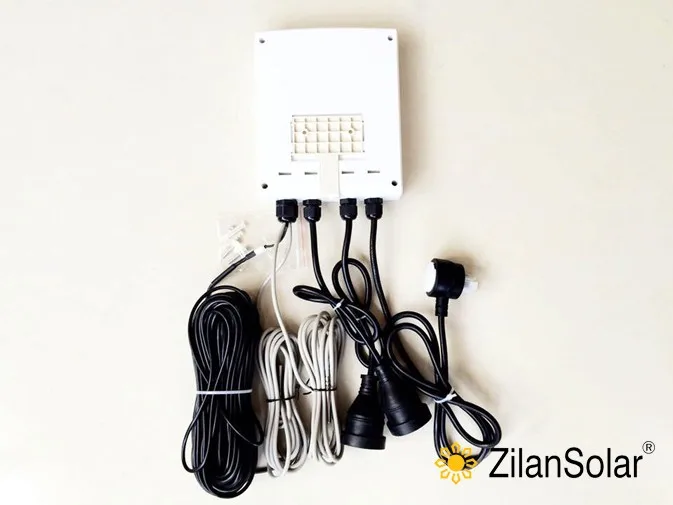

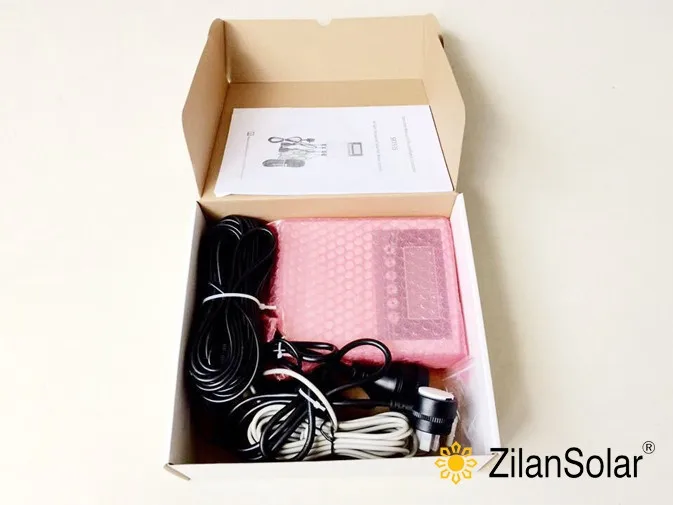

1, Photos:

2, Features:

Max. number of collectors: 1
Max. number of storage tanks: 1
Max. number of relays: 2
Max. number of sensors: 3
Max. number of visualization application system: 1
FRT:1* Rotary vane type electron flow meter

3, Technical datas:

<1>Size of Controller: 153mm x180mm x40mm
<2>Power supply: AC100-240V,50-60Hz. .
<3>Power consumption: <2.5W
<4>Rated impulse voltage: 2.5KV
<5>Housing: Plastic ABS
<6>Protection type: IP41
<7>Mounting: Wall mounting
<8>Operation: 6 push buttons at the front cover.
<9>Accuracy of temperature measuring: ± 0.1oC
<10>Range of collector temperature measuring: -10oC ~220oC
<11>Range of tank temperature measuring: 0oC ~110oC
<12>Suitable power of pump: 1 pump possible to be connected
<13>Suitable power of HK (backup heating): 1pc <1500W .
<14>Inputs: 3 sensors,
1pcs*Pt1000 sensor (≤500oC) for collector (silicon cable≤280oC),
2pcs*NTC10K, B3950 sensor (≤ 135oC) for tank, (PVC cable ≤105oC),
Outputs: 2 relays, for circulation pump and backup heating
1*Electronmagnetic relay, Max.current 2A
1*Electronmagnetic relay, Max.current 10A
<15>Ambient temperature: -10oC ~ 50oC.
<16>Water proof grade: IP43

4, Main functions:

<1>DATE---Date setting
<2>AH---After heating
<3>LOAD---Setup Loading tank1
<4>COL---Collector1
<5>COOL---Cooling function
<6>AUX---Auxiliary function
<7>MAN---Manual mode
<8>BLPR---Blocking protection function
<9>OTDI---Thermal disinfection function
<10>FS---Flow meter type selection.
<11>UNIT---C-F unit switch
<12>BEEP---Beeper
<13>REST---reset
<14>PASS--- password set
<15>Holiday function
<16>Screen Protection
<17>Trouble Protection
<18>Trouble Checking

5, Connection:
