VSP-861C solar pump station for solar water heaters

1, Features:

VSP-86 series solar pump stations, mainly applied to split pressurized solar water heating systems, solar hot water systems for villa and balcony wall mount forced circulation solar water heating systems. It's used heating exchanging between solar collectors and split pressure tank.

This series contains not only the circulating parts, also contains a control module.

2, Material:

<1> Main body: CW617N brass alloy

<2> Thermometer: ABS

<3> Seal gasket: PTFE (polytetrafluoroethylene) / EPDM

<4> O seals: EPDM (ethylene propylene diene monomer)

<5> Insulation shell: EPP, thermal conductivity = 0.041w / (m.k)

3, Function:

<1> Suitable medium: water and glycol solutions

<2> Maximum glycol percentage 50%

<3> Maximum operating temperature: 120 ℃

<4> Maximum system pressure: 10bar

<5> Safety valve set pressure value: 6bar

<6> Pressure gauge scale: 0-10bar

<7> Thermometer range: 0-120 ℃

<8> Meter adjustment range: 0-20L / min

<9> Flowmeter maximum temperature: 120 ℃

<10> Interface caliber 1/2 "

<11> Water injection / discharge pagoda Interface: 13mm hoses

4, Partial parts:

<1> SPCC metal paint shell

<2> Wilo circulation pump RS15/6

<3> Split solar controller (host and display)

<4> Temperature Sensor

<5> Electronic flowmeter

<6> Liquid injection/discharge valve

<7> Check valve (with pressure gauge integrated in one component tee)

<8> Pressure gauge

<9> Solar safety valve

<10> Air vent

<11> Water supply and return pipelines

<12> Aviation plug connection

<13> Interface expansion tank

<14> Auxiliary heating lead

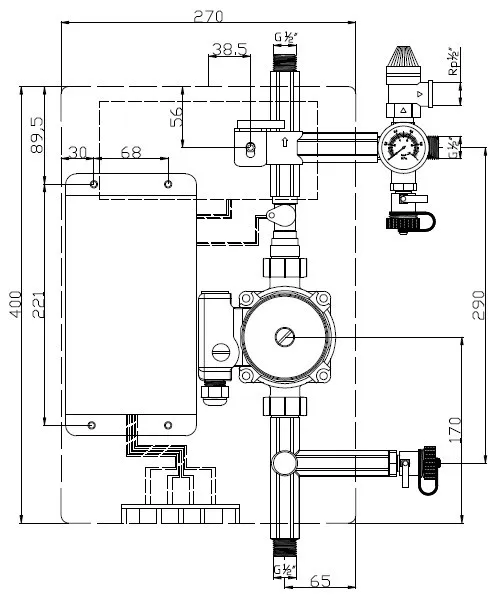

5, Pump station sketch:

6, Application diagram:

7, Certificate

8, Our advantages:

<1> We have 8 senior engineers working on development. that will make us lead the trend whatever on structure or technolgy

<2> 15 QC control the quality, just make sure all is right

<3> Aftersale service is quick, any problem you mentioned will be dealt with in 24 hours!

<4> Our professional salesmen always online for your questions

9, Factory photos:

10, Contact:

Mr Krista Zhang

Position: Sales manager

Phone: 86-573-87090146

Mob: 0086-18857389277

Wechat: Zilansolar

Skype: Krista025

Website: www.zilantech.com

For more details, pls send email to us, thanks!
