High quality gr5 titanium screws for bicycle brakes

FOB Price:

US 0.8-1.5 / Piece

Min.Order Quantity:

100 Piece/Pieces

Supply Ability:

50000 Piece/Pieces per Month

Port:

Shanghai or Tianjin or Qingdao

Place of Origin:

Shaanxi, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal

Brand:

Hanztech

Products Model:

Products Details
Company Profile

Quick Details

Brand Name: Hanztech

Model Number: --

Place of Origin: Shaanxi, China (Mainland)

Packaging & Delivery

Packaging Details: 1. plastic bag inner, wooden case outer 2. according to your requirement 3. adjustable to your order
Delivery Detail: 15-30days

Specifications

Titanium screws

High quality gr5 titanium screws for bicycle brakes

Specifications

Item Name	High quality Gr2 hex head Titanium bolts
Material	Gr1,Gr2,Gr3,Gr4,Gr5(Ti-6AL-4V),Gr7,Gr9,Gr12, etc.
Standard	DIN,JIS,GB,ISO,ASME,etc
Specification	Nominal Dimater		M3-m64
	thread pitch (mm)	p	0.4-6
		b	16-140
		k	2-64 (max)
			1.86-63.26(min)
		s	1.56-46.33(max)
			1.52-46.08(min)
		t	1-38
Surface Treatment	Polishing, Anodizing, Black oxide or Plating color
Features	light weight, acid and alkali resistance, anti-corrosion, excellent mechanical strength etc.
Applications	1 .Equipment accessories: airplane, ship, bicycle, motorcycle, auto, medical, chemical, wheelchair, sports, anchor, weapon, etc. 2. Aerospace,Indusrty,Navigation,Smelting,Chemical plants, and so on.

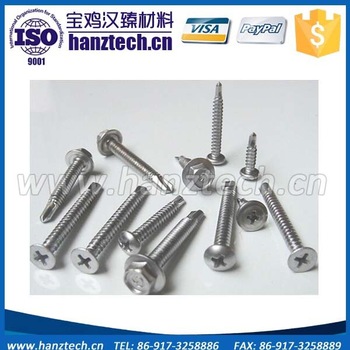

Product Show

Titanium screws

Chemical Compositon

Element	Chemical Composition,%
Element	Gr1	Gr2	Gr3	Gr4	Gr5	Gr7	Gr9	Gr11	Gr12	Gr23
N max	0.03	0.03	0.05	0.05	0.05	0.03	0.03	0.03	0.03	0.05
C max	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08
H max	0.015	0.015	0.015	0.015	0.015	0.015	0.015	0.015	0.015	0.0125
Fe max	0.2	0.3	0.3	0.5	0.4	0.30	0.25	0.2	0.3	0.25
O max	0.18	0.25	0.35	0.4	0.2	0.25	0.15	0.18	0.25	0.13
Al max	/	/	/	/	5.5~6.75	/	2.5~3.5	/	/	5.5~6.5
V max	/	/	/	/	3.5~4.5	/	2.0~3.0	/	/	/
Pd	/	/	/	/	/	0.12~0.25	/	0.12~0.25	/	/

Mechanical Properties

grade	Tensil strength(min)		Yeild strength(min)		Elongation (%)
grade	ksi	MPa	ksi	MPa	Elongation (%)
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
9A/B	90	620	70	438	10/15
12	70	438	50	345	18

Package and Shipping

We will choose the fastest,cheapest and safest shipment way for you!

Company Infomation

Titanium screws

Baoji Hanz Material Technology Co., Ltd located in Baoji,China.With high preciously equipment and rich experience, our company specilizes in manufacturing titanium fasteners.

Our Factory of High quality Gr2 hex head Titanium bolts

Our Certificationsof High quality Gr2 hex head Titanium bolts
Titanium screws

High quality Gr2 hex head Titanium bolts
