Manufacturer nickel titanium alloy polished nitinol Wire

Manufacturer nickel titanium alloy polished nitinol Wire

FOB Price:

US 38-58 / Kilogram

Min.Order Quantity:

2 Kilogram/Kilograms

Supply Ability:

1000 Kilogram/Kilograms per Month

Port:

shenzhen shanghai

Place of Origin:

Shaanxi, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal

Brand:

HANZTECH

Products Model:

nitinol

Products Details
Company Profile

Quick Details

Brand Name: HANZTECH

Model Number: nitinol

Place of Origin: Shaanxi, China (Mainland)

Packaging & Delivery

Packaging Details: Plastic spool / coils according to wire size+carton+pallet/ wooden case According to customer's requirements
Delivery Detail: 7-10 working days

Specifications

Product Show

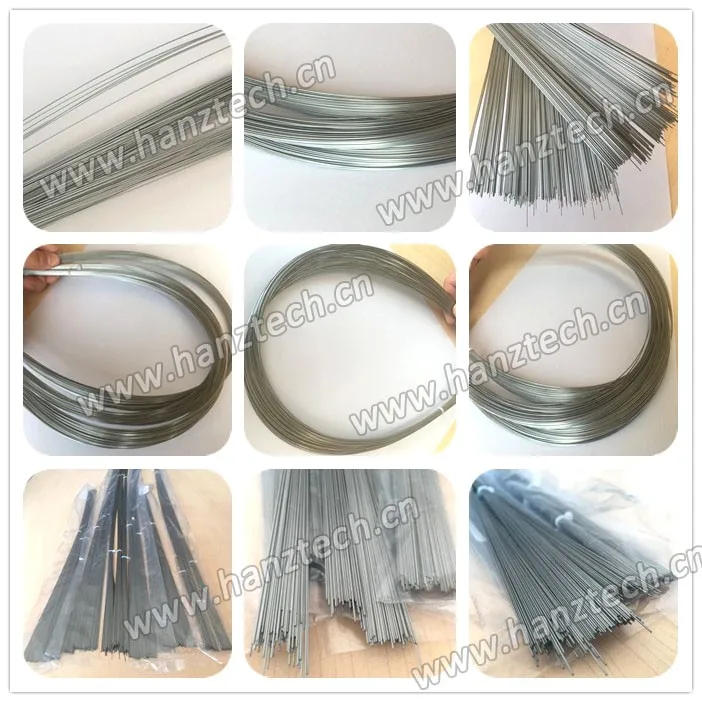

o Manufacturing 0.2mm nickel titanium wire with high quality

Quick details

Name	Grade	Transformation Temperature AF	Form	Standard
Shape Memory Nitinol Alloy	Ti-Ni-01	20 °C~ 40 °C	Wire, bar, plate	Customer specified or Industry standard
Shape Memory Nitinol Alloy	Ti-Ni-02	45 °C~ 90 °C
Superelastic Nitinol Alloy	TiNi-SS	-5 °C~ 5 °C
Low Temperature Superelastic Nitinol Alloy	TN3	-5°C~ -15°C -20°C~ -30°C
Low Temperature Superelastic Nitinol Alloy	TNC	-5°C~ -15°C -20°C~ -30°C
Medical Nitinol Alloy	TiNi-SS	33 ± 3 °C		ASTM F2063
Narrow Hysteresis Nitinol Alloy	Ti-Ni-Cu	As-Ms ≤ 5 °C	Wire, bar
Wide Hysteresis Nitinol Alloy	Ti-Ni-Fe	As-Ms ≤ 150 °C	Wire, bar

1..Size: Manufacturer nickel titanium alloy polished nitinol Wire

Wire:Dia0.05-6.0mm

Bar:Dia3.0mm—20mm

Sheet: Thickness 0.3-10.0mm Width≤400mm Length≤2500mm

2.Surface State Options: Manufacturer nickel titanium alloy polished nitinol Wire

♣ Black oxide surface

  ♣ As cleaned surface
  ♣ Medical grade polished surface
  ♣ Centerless ground surface

3. Chemical composition: Manufacturer nickel titanium alloy polished nitinol Wire

Ni: 55.4% --56.2% C≤0.07 H≤0.005 O≤0.050 N:≤ 0.05

4.Application:of Manufacturer nickel titanium alloy polished nitinol Wire

cell phone antenna, children's toys, experimental materials, glasses leg, women bra, Women's Sports Central,arch wires, instruments, and medical equipment, such as surgical stitching wire,

birth control loop and other areas of high-quality memory alloy wire.

ASTM F2063 polished nitinol dental implant wire

5.Standard: Manufacturer nickel titanium alloy polished nitinol Wire

ASTM F2063-05 Q/XB1516 Customer specified or Industry Standard

Alloy		Chemical composition	A_f (Fully annealed)	Min. elongation to failure [%]	Max. Residual elongation after 6% strain [%]	Main Applications	Specifications
Superelastic Ni-Ti alloy	TiNi-SS	Ti-50.8at%	-5°C ± 5°C.	10	0.1	Eyeglass Frames, Cellular Phone Antennae, Bra Underwire	Q/XB1516.2 Q/XB1516.2
Superelastic Ni-Ti alloy	TN3 TNC	TiNiVAl TiNiCr	-40°C ~50°C	10	0.1	Eyeglass Frames, Cellular Phone Antennae, Bra Underwire	Q/XB1516.2 Q/XB1516.2
Body temperature Ni-Ti alloy	TiNi-YY	Ti-50.7at%Ni	Functional Af=33 ± 3	15	0.1	Implantable devices,Bone staples Vascular Stents	ASTM 2063
Body temperature Ni-Ti alloy	Ti-Ni-01	55.6~55.8 wt%Ni	20 - 40	15	0.1	Guide wires, Stents Orthodontic Arches	Q/XB1516.1
High temperature Ni-Ti alloy	Ti-Ni-02	54.8~55.5wt%Ni	45 - 95	10	0.1	Implantable active devices, Surgical tools, Thermostats Coffeepots	Q/XB1516.1
High temperature Ni-Ti alloy	TiNiCu	TiNiCu	As-Ms ≤ 5	10	0.1		Q/XB1516.1

Packaging and Shipping

Packaging Manufacturer nickel titanium alloy polished nitinol Wire

• Carton with water proof paper and protective foam inside

• Standard wooden case

• As cilents' requirements Manufacturer nickel titanium alloy polished nitinol Wire

Manufacturer nickel titanium alloy polished nitinol Wire

TNT, EMS, UPS, FED, DHL, Air transport, Sea Transport, Railway Transport are available.

Depends on your demands, we will try our best to choose the most suitable way for your tungsten wire. Manufacturer nickel titanium alloy polished nitinol Wire After we send the product, we will send the track number to you with Email, and also we will track

this order until you can received successfully.

Company Information

Manufacturer nickel titanium alloy polished nitinol Wire

Baoji Hanz Material Technology Co., Ltd located in Baoji,China.With high preciously equipment and rich experience, our company specilizes in manufacturing all shapes of nitinol alloy products. Manufacturer nickel titanium alloy polished nitinol Wire FAQ

How to make an order

WNiFe Tungsten nickel iron alloys sheet of China supplier

Manufacturer nickel titanium alloy polished nitinol Wire

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Baoji Hanz Material Technology Co., Ltd.

Sales : Emma Zhai Manufacturer nickel titanium alloy polished nitinol

China Tel: +86-917-3258886

China Fax: +86-917-3258889

Email: hztech06(@)hanztech.cn

SkypID: emma.donerven Manufacturer nickel titanium alloy polished nitinol Wire
