water chilled fan coil unit

FOB Price:

USD 500-3000 / Set

Min.Order Quantity:

2 Set

Supply Ability:

200 Set per Month

Port:

FOB Guangzhou

Place of Origin:

China

Payment Terms:

L/C, T/T

Brand:

palm

Products Model:

FP-51BM

Products Details
Company Profile

Quick Details

Brand Name: palm

Model Number: FP-51BM

Place of Origin: China

Packaging & Delivery

Packaging Details: carton box in 5 layer, wood pallet outside for fasten.
Delivery Detail: 30 days after we confirm payment fro

Specifications

high water chilled fan coil unit

wall mount air conditioner.JPG

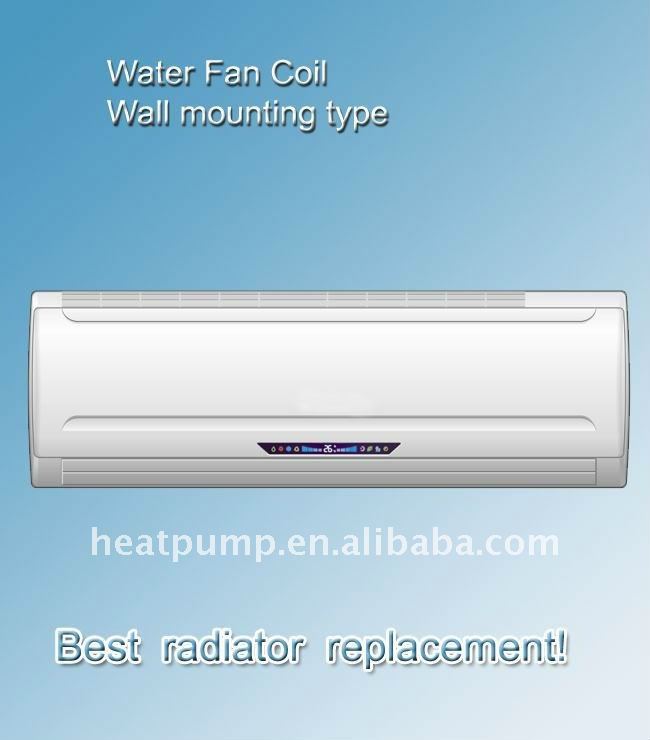

Wall mounting water fan coils

Water Fan coil unit with thin and elegant design. Heating and Cooling function.

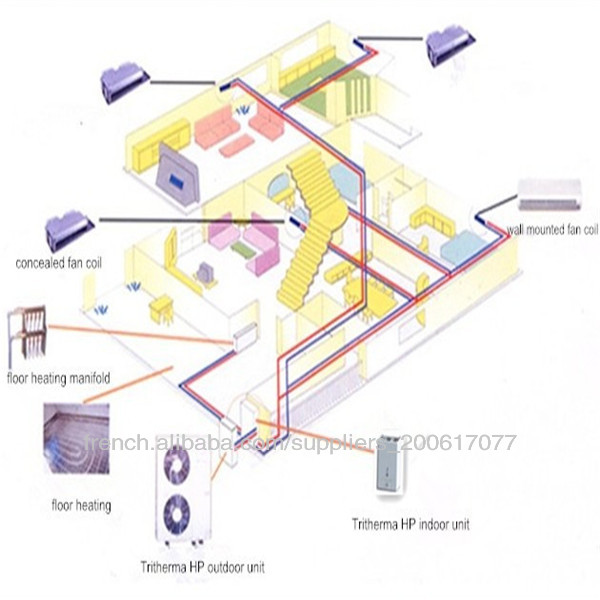

Best partner of heating and cooling heat pumps, reversible heat pumps.

Tritherma heat pump 1_

Detailed Description:

Elegant design and Compact structure for Safe and reliable, long service life and low noise

High performance coils by USA OAK facilities
Airflow: 510CFM to 1360CFM
Fan type: centrifugal Static pressure
I/O connetion: 1/2

Power supply: 230V/1Phase/50Hz-60Hz

Capacity: 2.7KW-10KW

Main products:

fan coil-1.jpg

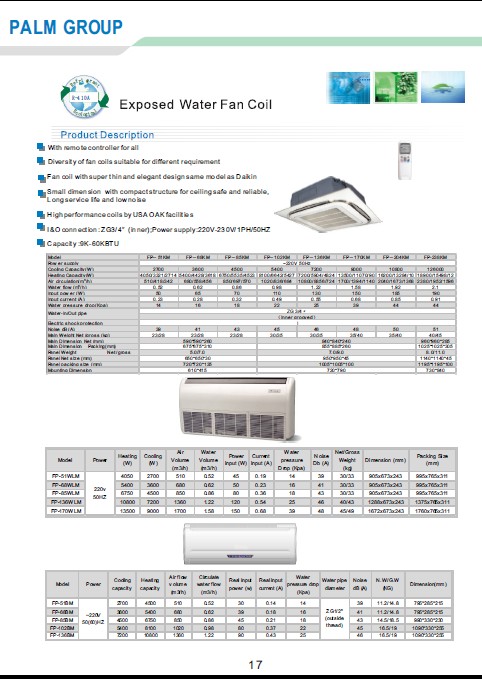

Parameter:

Model	FP-51BM	FP-68BM	FP-85BM	FP-102BM	FP-136BM
Power	220V 50Hz(60Hz)
Cooling capacity(W)	2700	3600	4500	5400	7200
Heating capacity(W)	4500	5400	6750	8100	10800
Air flow volume(m³/h)	510	680	850	1020	1360
Circulate water flow(m³/h)	0.52	0.62	0.86	0.98	1.22
Real input power (W)	30	39	45	80	90
Real input current (A)	0.14	0.18	0.21	0.37	0.43
Water pressure drop (Kpa)	14	16	18	22	25
Excess pressure(pa)	0
Water pipe Diameter	ZG1/2(Outside thread)
Protection against electric shock	I class
Noise dB(A)	39	41	43	45	46
N.W/G.W(kg)	11.2/14.8	11.2/14.8	14.5/18.5	16.5/19	16.5/19
DIMENSIONS(mm)	795285215	795285215	990330230	1090330255	1090330255
Package size(mm)	905370283	905370283	1065375275	1145375315	1145375315

We provide 1% free spareparts with containered order and 2 year warranty of main parts for factory fault since shipment arrival.

We will send the spare parts by courrier method after confirm it is due to factory fault.

We don't cover the cost for failure from shipment, wrong installation and incorrect usage. Of course we can provide parts by customer's cost after warranty period.
