SOLOON CONTROLS Damper actuator S6061-32DF/220V

FOB Price:

Open price

Min.Order Quantity:

1 Piece

Supply Ability:

1000 Piece per Week

Port:

BEIJING, TIANJIN

Place of Origin:

BEIJING

Payment Terms:

T/T

Brand:

SOLOON CONTROLS

Products Model:

S6061-32DF/220V

Products Details
Company Profile

Quick Details

Brand Name: SOLOON CONTROLS

Model Number: S6061-32DF/220V

Place of Origin: BEIJING

Packaging & Delivery

Packaging Details: Carton, pallet
Delivery Detail: Within 2 weeks after receiving the payment

Specifications

S6061-32D damper actuator

Summary:

S6061-32D damper actuator is specially designed for small and middle air damper and terminal control unit of air volume system. Due to the small size and flexible control, usually used in the space where is limited.

Features:

l Controllable by 2/3 point

l The speed of open and close is quickly,, short running time.

l Screw terminal connection

l Universal adapter: circular shaft: max φ20mm, square shaft: max 16*16mm

l Adjustable angle of rotation

l Manual override function

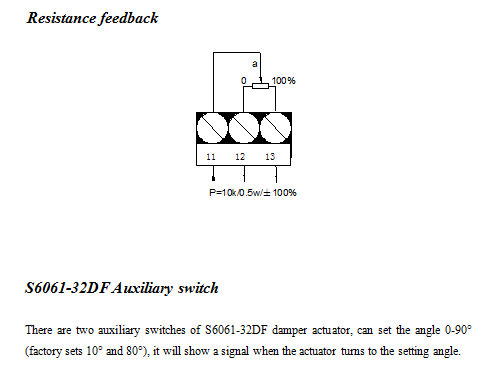

l With 2 auxiliary switches

l With Pre-set up function

Technical datasheet:

Item	Unit	S6061-32DN（F） /24V	S6061-32DN（F） /230V
Torque	Nm	32 Nm
Damper area	m²	6 m²
Running time	sec	114~138
Power supply	V	24VAC/DC	230VAC
Frequency	Hz	50/60
Running consumption	W	4.0W	5.5W
Maintaining consumption	W	0.5W	1.0W
Weight	Kg	1.1Kg

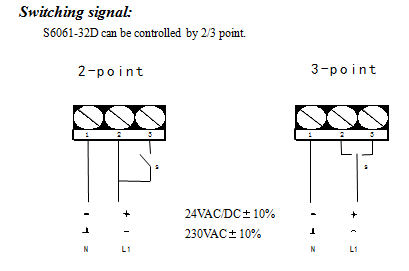

Control signal		2/3 point
Rotation angle		0~90º（Max 93°）

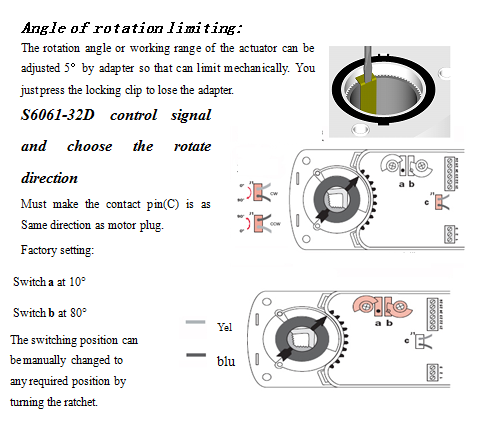

Limited angle		5~85º（Per step 5º）

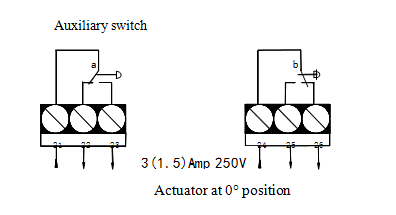

Auxiliary switch rating		3（1.5）Amp 250V
Life cycle		>70000 cycles
Noise level		45dB(A)
Electrical level		Ⅱ
Protection level		IP44 or IP54
Temperature		-20~+50℃
Humidity		5~95%RH
Storage temperature		-40~+70℃
Certificate		CE UL（Except 230V）

Remark: After lead to the actuator wire through PG joint, the protection level

can reach IP54.
