Quick Details
- Place of Origin: China (Mainland)
- Brand Name: MW
- Model Number: NES-100-24
- Output Power: 101 - 200W
- Output Type: Dual
- Input Voltage: 110v/230v AC by switch
- Output Voltage: 24VDC
- Output Frequency: N/A
- Output Current: 0-4.5A
- Certification: CE ROHS UL
- Product Name: NES-100-24
- Type: Dual output(meanwell power supply)
- Protection: SURGE PROTECTION
- Efficiency: 86%(meanwell power supply)
- Size: 159*97*38mm
- Packing: 30Pcs/17.5Kg
- Working temprature: -20 - +60
- Case No.: 901
- Connection: Terminal block for input and output
Packaging & Delivery
Packaging Details: | meanwell power supply 30Pcs/17.5Kg |
---|---|
Delivery Detail: | 3 days |

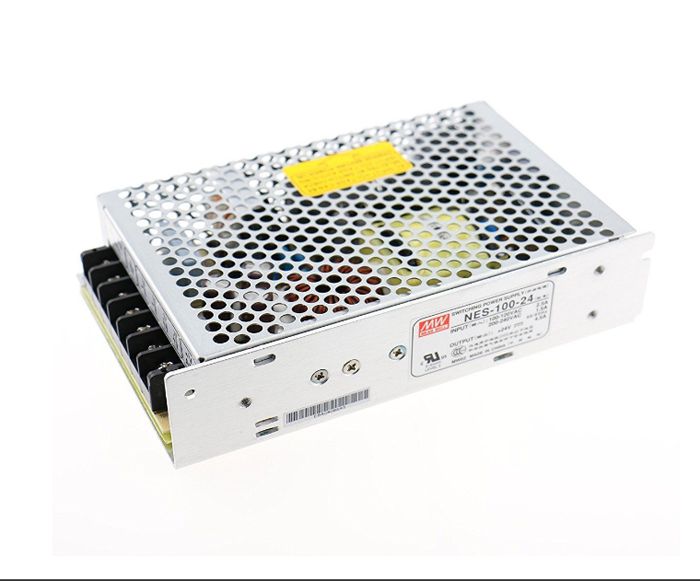

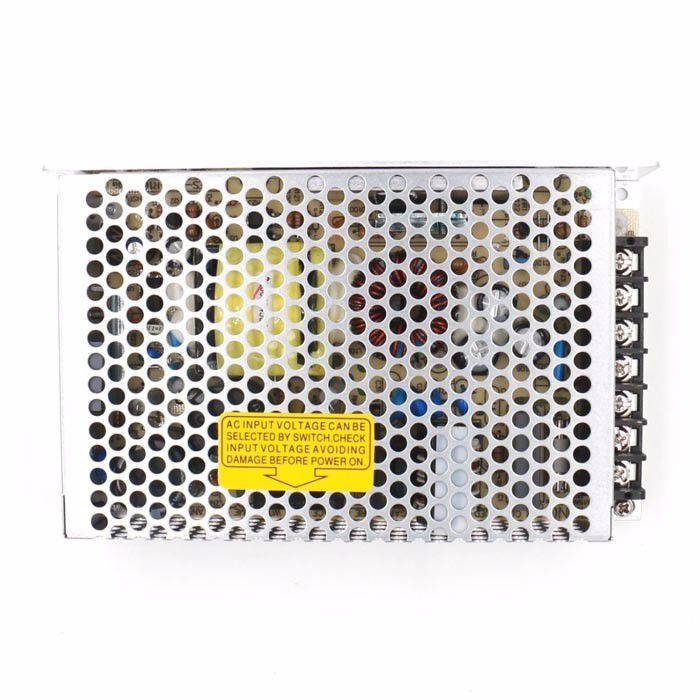

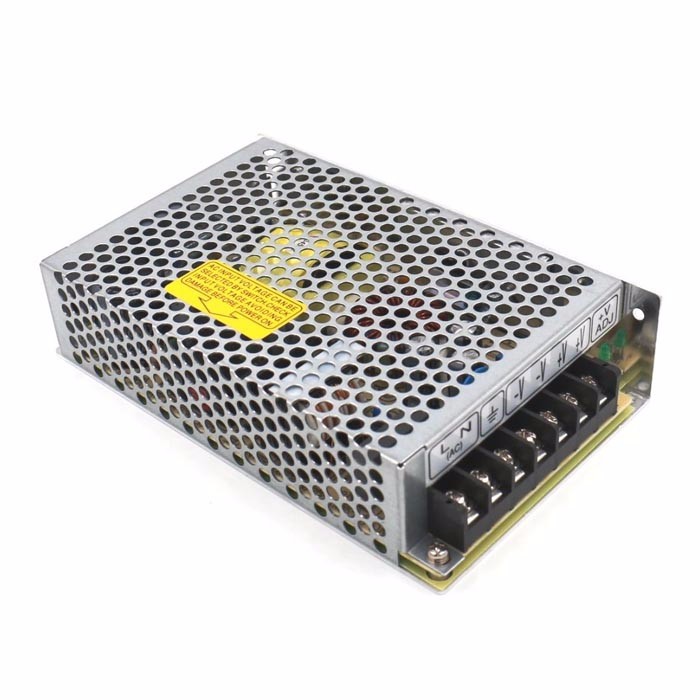

Meanwell MW single output switch Power Supply NES-100-24 100W 24V 4.5A UL listed for 40watts thermoelelectrci cooling system
Features:
1) Protections: Short circuit / Overload / Over voltage
2) Cooling by free air convection
3) LED indicator for power on 100% full load burn-in test
4) High efficiency, long life and high reliability 2 year warranty
