Brand Name: OCSTAT
Model Number: Q7RF
Place of Origin: CHINA

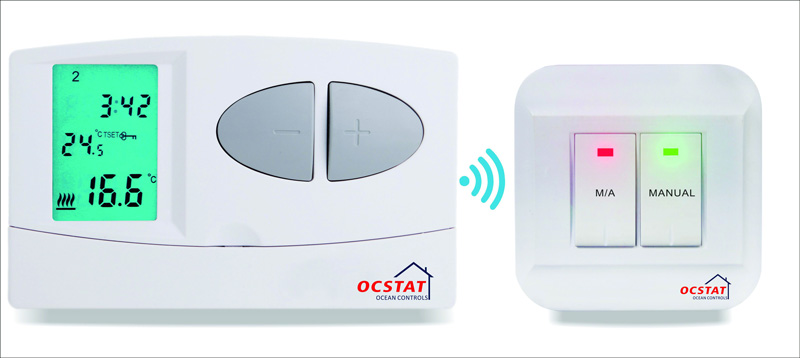

Model :Q7 RF
Transmitter: Receiver:
1. 2*AA size battery 1. AUTO/MANUAL Switch
2. 6 Time & 6 Temp,per day 2. LED system indicator
3. 7 Day programmable 3. Contact rating: 8(2)A 230VAC Max
4. 868Mhz for more stable communication
5. EL back light
6. Manual override mode
Model No.: |
Q7 RF |
Transmitter: |
|
Operating Frequency: |
868.35 MHz |
Programmability: |
Programmable |
Temperature Range (℃): |
5℃-35℃ in 0.5℃ |
Control Temp.Range (℃): |
10℃-30℃ in 0.5℃ |
Temp.Meas.Accuracy: |
±0.5°C |
Sensitivity: |
±0.2°C / ±0.3°C |
Storage Temperature: |
-10°C to +60°C |
Power Method: |
2x1.5 V AA alkaline batteries (LR6 type) |
Power Consumption: |
1.3 mW |
Dimensions: |
130 x 80 x 35mm (without holder) |
Temp. Sensor Type: |
NTC 10 kΩ ±1% at 25°C |
Receiver: |
|
Power Consumption: |
6W |
Power Supply Voltage: |
230V AC, 50Hz |
Switchable Voltage: |
24 V AC / DC,…250 V AC; 50 Hz |
Switchable Current: |
6 A (2 A inductive load) |
Transmission Distance: |
approx. 50 m in open terrain |
