Brand Name: MOTU
Model Number: MT-F2
Place of Origin: CHINA

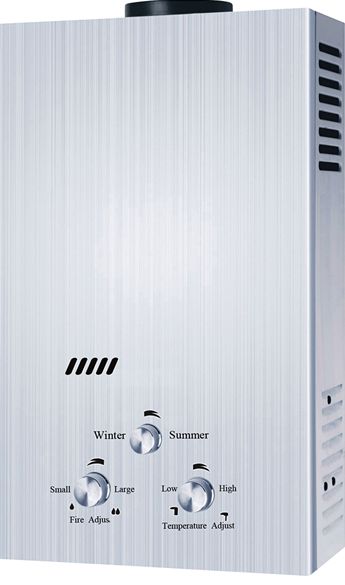

6L-20L Different Type Tankless Gas Water Heater
Product Feature
Technical Specifications
Installation Type | Wall Mounted | ||||||
Exhaust Way | Open Flue/ Force Exhaust Type | ||||||
Capacity | 6L-24L | ||||||
Panel Material | Stainless Steel/Cold Plate | ||||||
Color | White/Silvery | ||||||
Heat Exchanger | 0.8kg-4.0KG | ||||||
Ignition Model | Automatic electrical pulse ignition | ||||||
Heat Efficiency | ≥85% | ||||||
Use Gas Type | Liquefied Petroleum Gas (LPG) or Natural Gas (NG) | ||||||
Rated Gas Pressure (Pa) | LPG : 2800 Pa NG: 1300 Pa & 2000 Pa | ||||||
Connection Pipe Specs | Water Inlet : G1/2'' Pipe ; Water Outlet : G1/2'' Pipe ; Gas Inlet : G1/2'' Pipe ; |
||||||
Heating Status |
Heating time ≤15 Seconds Over Temperature ≤2°C; Stability Time:≤15 Seconds |
||||||
Reted Voltage | Open flue type is ignited by battery power with voltage 3V. Force exhaust type is ignited by electricity with voltage220V50HZ&110V/60 HZ. |
||||||
Rate Heat Input Power(KW) | 12 | 14 | 16 | 20 | 24 | 28 | 36 |
Rate Water Output(T=25°C) | 6L/Min | 7L/Min | 8L/Min | 10L/Min | 12L/Min | 14L/Min | 18L/Min |
Safety Features
Packing details
Quality Warranty & After Sales Service
