GOGO Control units water or air Pneumatic Solenoid micro valve manifold

Quick Details

Type: Valves
Place of Origin: Zhejiang, China (Mainland)
Model Number: RFZ Pneumatic Solenoid
Brand Name: GOGO Pneumatic Solenoid
Media: Air
Control mode:: normally close
Name: Pneumatic Solenoid
Temperature: -10~80 ℃
Orifice: 0.7mm
Seal material: NBR
working pressure: 0~0.8Mpa
Connection ports: M5
Voltage: DC12v/DC24v
Valve body Material: Aluminum(Black oxidation)

Packaging & Delivery

Packaging Details:	CARTONS
Delivery Detail:	Shipped in 7 days after payment

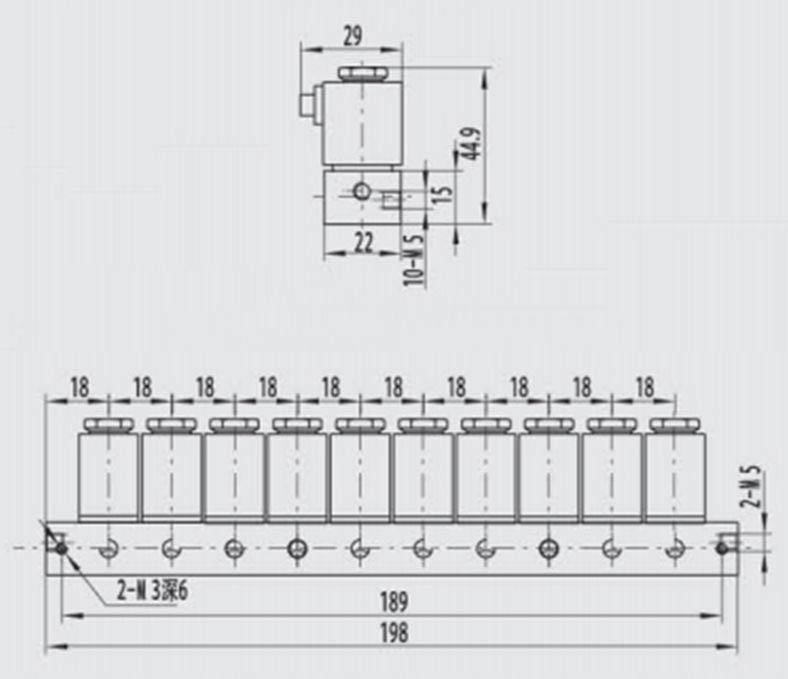

GOGO Control units water or air Pneumatic Solenoid micro valve manifold

Specification

Model	RFZ-10A
Working Medium	Air
Motion Pattern	Direct action 2/2 3/2
Type	Normal closed
Orifice	0.7mm
Port size	M5
Working-pressure	0~0.8Mpa
Max.pressure	1.6Mpa
Operating Temperature	-10~80℃
Voltage	DC12v/DC24v
Protection class	IP65
Insulation class	F class
Valve body Material	Aluminum(Black oxidation)
Seal Material	NBR

Features

1 commonly used for hosiery machine gas open, closed

2 compact structure, convenient installation

3 the number of combinations can be selected by the customer

1 fully meet the latest international standards: IS05211DIN3337 and VD/VDE3845, NAMUR standards.
2 extrusion of high strength aluminum cylinder, the inner surface by fine grinding and hard anodic oxidation treatment, long service life, low coefficient of friction, action quickly.
3 beautiful compact, modern styling, multiple specifications of the series of products to a sound economic benefits.
4 all the active surfaces are made of high quality bearings, low friction, long life, no noise.
5.Two external installation of independent stroke adjustment mechanism to facilitate the adjustment of the 5 degree of full open or close.
6 external structures like actuators have double acting and single acting type (spring reset) for selection. All accessories for easy installation and installation.
Visual indication of 7.NAMUR standard multi function position indicator.
8 preload spring, installation, disassembly, safe and convenient.
9 piston and end caps are made of die cast aluminum, with high strength and light weight.
10 change the seal material, can be applied to high temperature or low temperature occasions.
11 according to the need to provide a variety of angle travel (such as: 120 degrees, 135 degrees, 180 degrees, etc.) and three bit pneumatic actuator.
12 do not need to connect the board, can be directly installed solenoid valve.

Company Information

Founded in July,2014,Ningbo Fenghua GO GO Automatic company is a high-tech enterprise with all vitality , potential and comprehensive strength .The company is located in the Zhejiang Ningbo Science &Technology zone ,a unique place with beautiful scenery and gifts of nature.
On the basis of technology development , the company has taken in a group of experienced personnels who are talented in senior management ,marketing and skills of producing .In the company ,great attention is paid to basic management ,stable quality ,continuously improving pre-sale services,sale and after-sale services,and enhancing the market competitiveness of our products.
Main products of our company : automatic parts, pneumatic solenoid valve , air water solenoid valve, hydraulic valves, gear piston or vane pumps , fittings connectors , temperature pressure transmitter , temperature controller , PLC , DCS parts , hardware stainless steel or brass or plastic parts , etc.

Warranty of solenoid valve

1 years warranty

Maintenance instructions:
1. attention to check the use of components, in the transport process is damaged, and then install the use of.
2. When installing, please note that the gas flow direction and the takeover are correct.
3. when using, please strictly comply with the technical requirements, such as the operating voltage, operating frequency, working pressure, the use of temperature, the whole machine debugging, it is recommended to use a manual device debugging, and then through power debugging.
4. Please pay attention to dust, it is recommended to install the exhaust port or muffler muffler throttle.
5. When connecting pipe, pay attention to only release the strap around the joint may not exceed the end face of the tooth, and pay attention to the elimination of pipe fittings, metal particles inside the pipe, dust and oil, etc
