Brand Name: TISCO JISCO BAOSTEEL ZPSS LISCO
Model Number: 300Series
Place of Origin: Shanghai, China (Mainland)
Specifications:

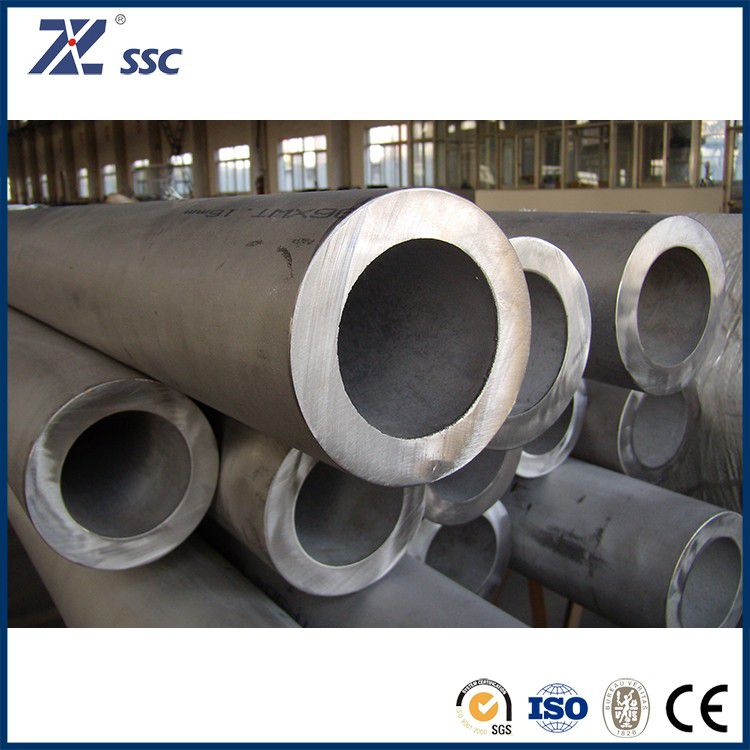

| Commodity | Thick Wall Stainless Steel Pipe |
| Standard | ASTM/AISI/GB/DIN/JIS/EN |
| Material Grade | Stainless Steel/Carbon Steel |
| Certification | SGS,BV,ISO |
| Outer Diameter | 500mm - 1200mm |
| Wall Thickness | 8mm - 60mm |
| Length | 2-12m, or customized |
| Tolerance | a) Outer Diameter: +/-0.2mm |
| b) Thickness: +/- 10%, or customized | |
| c) Length: +/- 10mm | |
| Surface Finish | No.1 |
| Seamless Treatment | |
| Process Method | Hot Rolled/EFW/ERW/etc |
| MOQ | 0.5 Ton |
| Productivity | 3000 Tons/Month |
| Packing | Standard export package, or as requested |
| Delivery | 5-15 days after receiving the deposit |
Technical Requirement:
| TYPE NO. | C | Mn | P | S | Si | Cr | Ni |
| % | % | % | % | % | % | % | |
| 201 | ≤0.15 | 5.5-7.5 | ≤0.050 | ≤0.03 | ≤1.00 | 16.0-18.0 | 3.5-5.5 |
| 202 | ≤0.15 | 7.5-10 | ≤0.060 | ≤0.03 | ≤1.00 | 17.0-19.0 | 4.0-6.0 |
| 301 | ≤0.15 | ≤2 | ≤0.045 | ≤0.03 | ≤1.00 | 16.5-18.0 | 6.0-8.0 |
| 302 | ≤0.15 | ≤2 | ≤0.045 | ≤0.03 | ≤1.00 | 17.0-19.0 | 8.0-10.0 |
| 304 | ≤0.08 | ≤2 | ≤0.045 | ≤0.03 | ≤1.00 | 18.0-20.0 | 8.0-10.5 |
| 304L | ≤0.03 | ≤2 | ≤0.045 | ≤0.03 | ≤1.00 | 18.0-20.0 | 8.0-12.0 |
| 316 | ≤0.08 | ≤2 | ≤0.045 | ≤0.03 | ≤1.00 | 16.0-18.0 | 10.0-14.0 |
| 316L | ≤0.03 | ≤2 | ≤0.045 | ≤0.03 | ≤1.00 | 16.0-18.0 | 10.0-14.0 |
| 321 | ≤0.08 | ≤2 | ≤0.045 | ≤0.03 | ≤1.00 | 17.0-19.0 | 9.0-12.0 |
| 410 | ≤0.15 | ≤1.00 | ≤0.040 | ≤0.03 | ≤1.00 | 11.5-13.5 | |
| 430 | ≤0.12 | ≤1.00 | ≤0.040 | ≤0.03 | ≤1.00 | 16.0-18.0 |
Mechanical Properties:
| TYPE NO. | Y.S | T.S | ELOG. | Hardness | ||
| N/mm2 | N/mm2 | % | HB | HRB | HV | |
| 301 | ≥205 | ≥520 | ≥40 | ≤207 | ≤95 | ≤218 |
| 304 | ≥205 | ≥520 | ≥40 | ≤187 | ≤90 | ≤200 |
| 304L | ≥175 | ≥480 | ≥40 | ≤187 | ≤90 | ≤200 |
| 316 | ≥205 | ≥520 | ≥40 | ≤187 | ≤90 | ≤200 |
| 316L | ≥175 | ≥480 | ≥40 | ≤187 | ≤90 | ≤200 |
| 321 | ≥205 | ≥520 | ≥40 | ≤187 | ≤90 | ≤200 |
| 410 | ≥205 | ≥440 | ≥20 | ≤201 | ≤93 | ≤210 |
| 430 | ≥205 | ≥450 | ≥22 | ≤183 | ≤88 | ≤200 |
Competitive Advantage:
(1) Heat and corrosion resistance
(2) Fine mechanical properties
(3) Great intensity in low temperature
(4) No hardening phenomenon when in heat treatment
(5) Good hot workability such as in stamping and bending
(6) Non-magnetic
Applications:
(1)Construction
(2)Decoration
(3)Engineering
(4)Machine
(5)Industrial material
(6)Chemical industry
(7)Food industry
(8)Boiler heat exchangers
(9)Natural gas industry
(10)Pharmaceutics
(11)Water transfer
(12)Environmental protection
Process Flows:
Packaging & Shipping
Company Information
Zhuxin Stainless Steel, was established in 1998.
We have four branches in Shanghai, Jiangsu Province, Gansu Province, Qinghai Province.
Our company is one of the largest steel distribution companies in Northwest China.
We are specialized in stainless steel processing and sales.
Our Services
Advantages:
(1) ISO9001:2008 certified company.
(2) Quality & Quantity Assurance with competitive prices.
(3) Delivery & dealings as per commitment.
(4) Highly experience qualified production and sales team.
(5) Your satisfaction is guaranteed according your demands.
Testing:
(1)Eddy Current
(2)Hydrostatic
(3)Ultrasonic
(4)Intergranular Corrosion
Fast delivery & Quality assured.
Welcome to order more products.
Verified Supplier - shanghai zhuxin Stainless Steel Co.,Ltd
Bussiness Type: Manufacturer
