WINTECO Misting System W108-45N

WINTECO misting systems offers a large variety of different configurations and styles of Misting Systems for any application. we designs, builds and installs misting systems including the premier stainless steel misting systems made for industrial cooling, patio misting, outdoor cooling, restaurant cooling, mist cooling system, portable misting systems and outdoor misting systems specifically designed for customer's applications. Many factors need to be considered when choosing the right misting system including wind direction, height of the misting systems, amount of humidity, time of day the misting system will be used along with cost and customer's cooling preferences.

WINTECO produces high pressure misting system which operates between 800 and 1200 psi. the misting system will create a flash evaporation which cools the environment without wetness feeling.
WINTECO High pressure misting systems work best in restaurants, resorts, commercial and high end application where there is a low tolerance to wetness. High pressure misting systems sometimes combined with misting fans are the best choice in a humid environment.There are many models with different numbers of nozzles for customers to choose, depending on the area and the cooling effect they want to acheive.

TECHNICAL SPECIFICATIONS

Power: 750W
Pressure: 60bar,860psi
Flow rate: 3L/MIN
Fog diameter: 5μm
Continous time: 12 hours
effective area: 300m2
G.W.20kg
Packing size: 53*28*32cm
Digital timer: NO
Temperature drop: 4-10 degrees

FEATURES

Forged brass manidold
NSK bearing
Italian seal
First-grade ceramic plunger
Stainless steel casing (poder-coated metal casing is also available)

Clients can purchase whole set with the listed accessories, or just purchase the fog machine without accessories

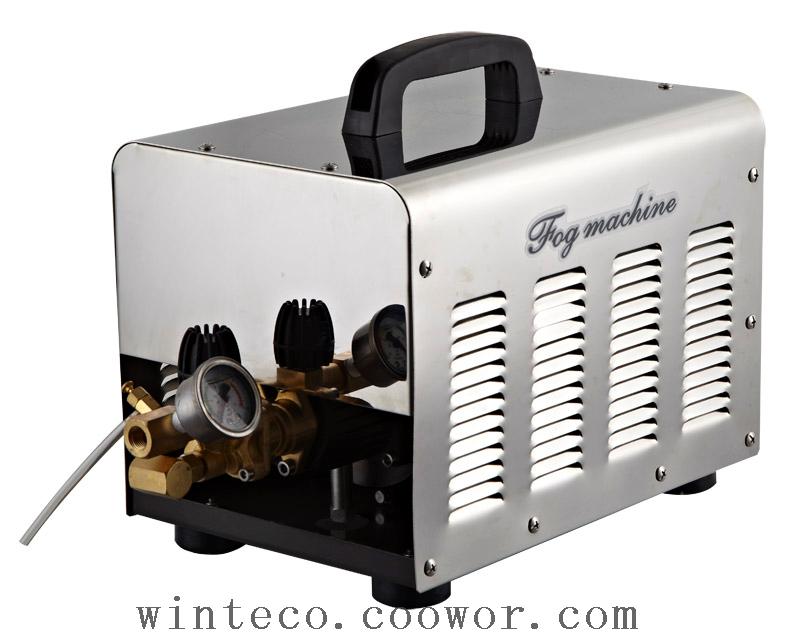

Picture of the product

Application of the product

WINTECO misting system is a very good product for summer time especially in outdoor and open space like restaurants, bars, swimming pools, parties, resorts，patio, deck, textile, mines...when the water misting evaporates, it can take away the heat and cool down the temperature by 4-8 degrees depending on environmental conditions, which will make people feel much more comfortable even sit outdoor in hot summmer. it can also eliminate the dust in the air which will make the air fresher.

Winteco Industrial Co., Limited is a professional manufacturer and exporter specializing in heat exchanger coils like condenser and evaporator, and also commercial and industrial electrical appliances like outdoor mist fan, fog machine and air curtain. We are dedicated to creating a comfortable environment for people all over the world with our products.

Q1. What is the MOQ?
A1. The prices we offered is one 20GP for MOQ. We can also accept small order and samples if you really need. It needs extra charge.

Q2. What is the Trade Term?
A2. We accept FOB Ningbo, CIF,CNF, or EXW, as your requirement.


Q3. How long is our production leading time?
A3. Our lead time is 20-30 days after receiving your deposit, if there is public vacations, the production time may be longer, but we will inform you in advance for any possible delay.

Q4. What is the Payment term?
A4. The payment term is 30% deposit after confirming the PI, and 70% balance before shipping when we inform the exact loading date. For future cooperation we can also accept 70% balance after shipping against B/L copy.

Q5. What is your products warranty?
A5. We guarantee one year for our products, during the warrantee period, we will offer free spare parts to you in time if there is any damage for manufacturing defects. But we will still supply spare parts at cost price even beyond the warrantee.
