VA-7000 SERIES EASY INSTALLATION ACTUATOR

FOB Price:

Get Latest Price

Min.Order Quantity:

10 Piece

Supply Ability:

500 Piece per Week

Port:

Guangzhou

Place of Origin:

Guangzhou, China

Payment Terms:

T/T

Brand:

Sinro

Products Model:

VA-7000 SERIES

Products Details
Company Profile

Quick Details

Brand Name: Sinro

Model Number: VA-7000 SERIES

Place of Origin: Guangzhou, China

Packaging & Delivery

Packaging Details: standard export carton package
Delivery Detail: around 15 working days after order confirmed

Specifications

DESCRIPTION

VA-7000 series easy installation actuator can be used with VB-7000Q series valve. With different connectors, it can match with other different valve bodies.

VA-7000Q series actuator has 3 basic types:

VA-7300 (VA-7400) reversible motor operation and provide increasing control;
VA-7301 (VA-7401) can accept input 0~10V DC or 4~20mA DC control signal and provide proportional control, and also can provide 0~10V DC feedback signal to indicate the position of the actuator;
VA-7302 (VA-7402) can accept input 0~10V DC or 4~20mA DC control signal and provide proportional control.

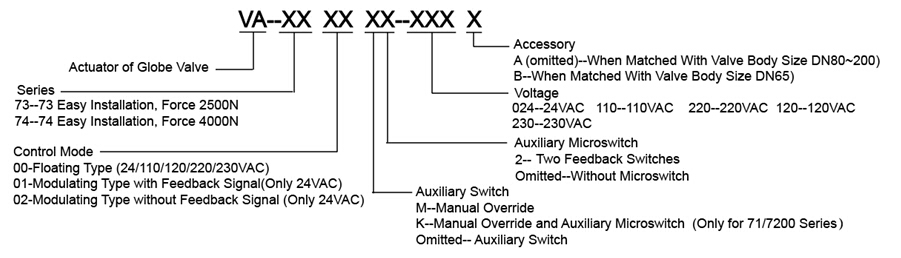

MODEL SELECTION

CHARACTERISTICS

Low AC voltage synchronic reversible motor.
The action uses gear to transit. Output gear rollers are supported by surface rolling bearing, which rotate around the central bearing.
Valve working position indicator.
Fireproof ABS plastic casing.
Conveniently mounting.
0~10V DC or 4~20mA DC control
Working state (DA or RA) can be selected by jumper.
Apply to 24mm, 36mm, 40mm, or 42mm stroke can be selected by jumper.
Have overtime protection function, and failure protection function when without control signal.
Have 0~10V DC feedback signal.
Have manual open or close valve function (only for VA-7XXXM)

Sinro Group was founded in 1986, having almost 30 years rich experience on HVAC control products like motorized zone valves/ball vales/globe valves/flow balancing valves, damper actuators, thermostats and flow switches, etc.

We have 3 owned factories of 12,000m2 with ISO9001 certificate, 2 experimental bases and a professional engineers team to be our strong backup, as well as a high qualified sales team to follow up well all clients accounts.

Most of our products have acquired the international certifications like CE, UL, CSA, what we pursue is to supply users the qualified products with better application and with the most competitive price we can do, and we always try best to offer clients the satisfied and simplified solutions.

Please kindly check more products details from our website: http://www.sinro.com
