Accumulator

Introduction

In circulatory system, the refrigerant must be convert became gas before returning to compressor. So it has to separate gas and liquid before the refrigerant enters into the compressor. And let the gas refrigerant enters into the compressor will not cause strike. The liquid refrigerant evaporate slowly in the vessel, then enter the compressor after evaporation. In order to make the residual refrigerant oil come back to compressor, there is no hole in the bottom of tube in Accumulator which may let the oil come back. When the residual refrigerant in the system come into Accumulator, it will go back to compressor with gas refrigerant. Because of the protection from Accumulator, The life time of compressor can be longer and the circulatory system can run better.

Feature

·“U” tube design keeps maximum refrigerant flow and minimum oil blocking

·“U” tube entrance is installed in the back of the inlet oriented pipe to prevent liquid refrigerant entering into compressor and damaging it.

·Throttle hole matched will with system capacity assures optimum liquid refrigerant and oil that flow back to compressor

·Four balance on the bottom, Installed stably and securely

·Highly corrosion-resistant power coating finish, can be used in all environments.

·Refrigerant: R22/R134a/ R407C//R410A /R404A/ R507A

·Medium temperature: -40～60℃

·Maximum working pressure: 2.8MPa

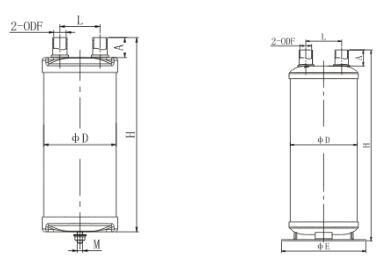

Diagram

Specification

 Can design and manufacture according to customers' requirement.
