GREATCOOL Air-Cooled Condenser/Evaporative Condenser/Condenser Coil

FOB Price:

USD 1-30 / Piece

Min.Order Quantity:

200 Piece

Supply Ability:

10000 Piece per Month

Port:

SHANGHAI,NINGBO

Place of Origin:

CHINA

Payment Terms:

L/C, T/T

Brand:

GREATCOOL

Products Model:

FC104

Products Details
Company Profile

Quick Details

Brand Name: GREATCOOL

Model Number: FC104

Place of Origin: CHINA

Packaging & Delivery

Packaging Details: carton/ply-wooden case/pallet for air cooled condenser
Delivery Detail: 30 days for air cooled condenser

Specifications

------Specifications of air cooled condenser

We can supply according to costomers drawings or samples,also we can design as you need.

product length: up to 4meters.

product height: not limited

Size from 1/4HP to 40HP

fin type: flat or corrugated or sine-wave

available temperature is above -40 degree.

Air Cooled Condenser And Evaporator (Copper Tube)

We also have our series of condenser, for example, EFN series, GFN series, SFN series and so on.

GFN SERIES CONDENSER

MODELO	DIMENSIONES (MM)			SUPERFICIE (m²)	VENTILADOR NOS.	VENTILADOR DIA.(Φmm)	ENTRADA (Φmm)	SALIDA (Φmm)	CAPACIDAD
MODELO	L	W	H	SUPERFICIE (m²)	VENTILADOR NOS.	VENTILADOR DIA.(Φmm)	ENTRADA (Φmm)	SALIDA (Φmm)	CAPACIDAD
GFN-1/3HP	344	120	280	3.44	1	250	9.52	9.52	1417
GFN-1/2HP	344	140	280	4.59	1	250	12.7	9.52	1891
GFN-3/4HP	394	152	370	6.44	1	300	12.7	9.52	2653
GFN-1.0HP	444	152	370	8.55	1	300	12.7	9.52	3522
GFN-1.5HP	544	182	422	12.26	1	350	15.88	12.7	5050
GFN-2.0HP	644	182	473	16.52	1	400	15.88	12.7	6805
GFN-2.5HP	644	200	473	20.65	1	400	19.05	15.88	8506
GFN-3.0HP	644	234	473	24.78	1	400	19.05	15.88	10208
GFN-3.0HPD	1044	182	420	24.53	2	350	19.05	15.88	10105
GFN-4.0HP	644	234	575	30.29	1	400	19.05	15.88	12477
GFN-4.0HPD	1044	182	525	33.72	2	350	19.05	15.88	13890
GFN-5.0HP	844	215	780	36.76	1	450	22.22	15.88	15143
GFN-5.0HPD	1044	195	625	36.78	2	400	22.22	15.88	15151
GFN-5.5HPD	1044	195	625	36.78	2	450	22.22	15.88	15151
GFN-6.0HPD	1244	195	680	47.85	2	400	22.22	15.88	19711
GFN-7.5HPD	1244	215	830	58.88	2	450	25.4	15.88	24255
GFN-10HPD	1644	230	830	78.56	2	500	25.4	15.88	32361
GFN-12HPD	1644	230	930	88.38	2	630	28.575	19.05	36407
GFN-15HPD	1844	230	930	99.30	2	630	28.575	19.05	40905
GFN-18HPT	2024	230	930	109.27	3	500	31.75	19.05	45012
GFN-20HPT	2044	230	1075	128.76	3	550	31.75	22.22	53040
GFN-20HPF	2044	230	1075	128.76	4	400	31.75	22.22	53040
GFN-25HPF	2244	230	1075	141.67	4	450	31.75	22.22	58358

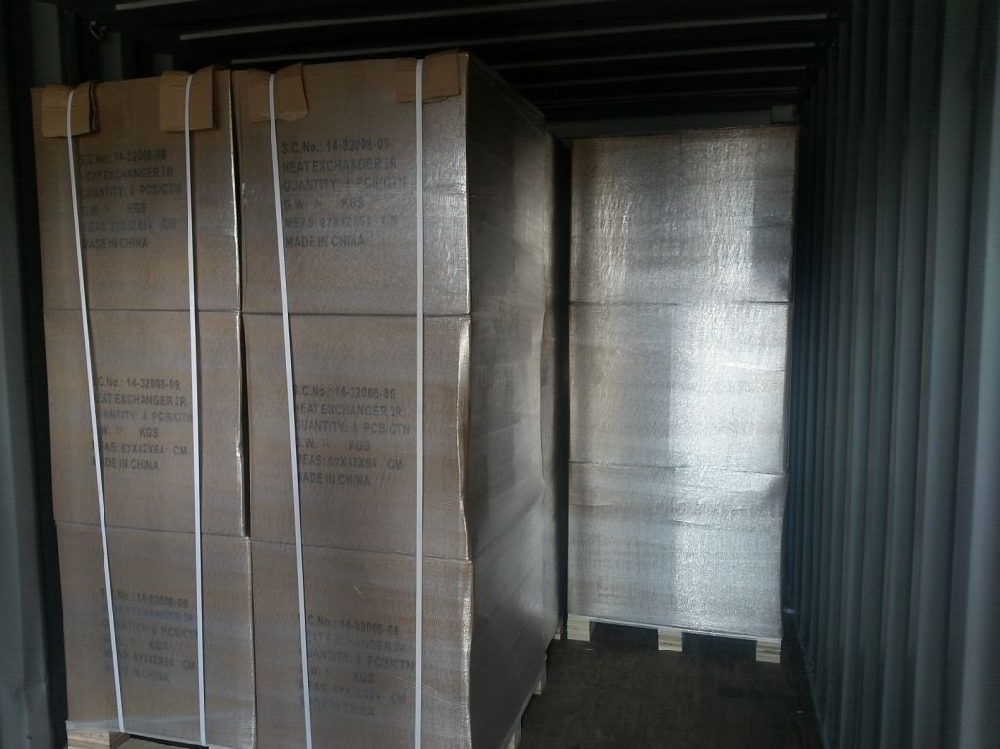

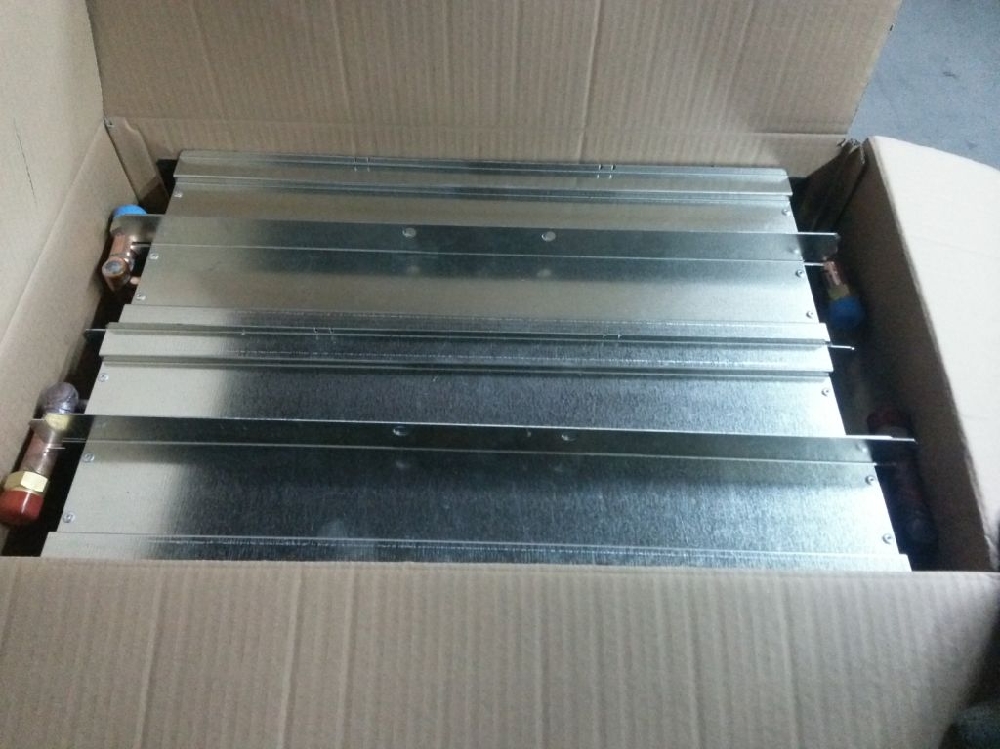

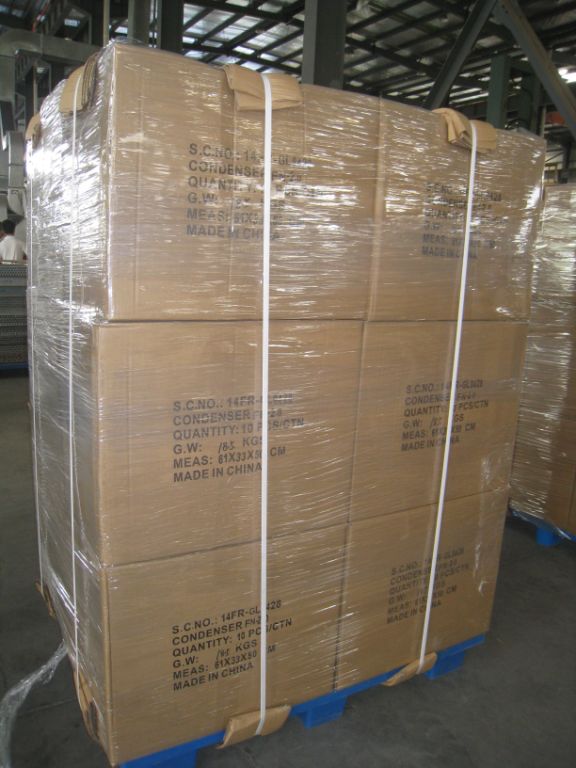

------PACKING

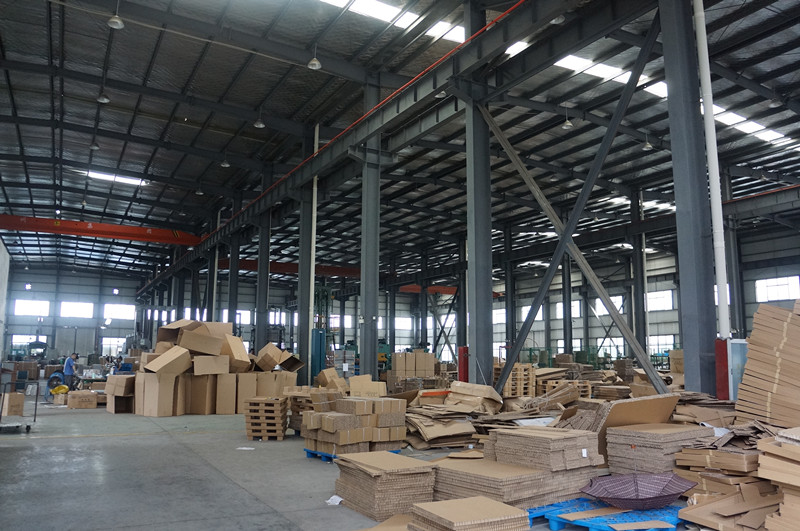

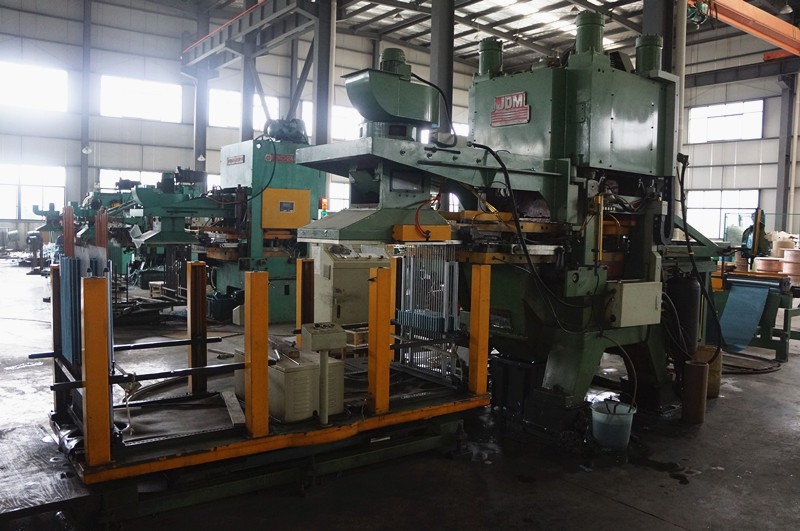

------WORKSHOP

------EXHIBITIONS

2013 Thailand Bangkok RHVAC

2015 ACREX INDIA EXHIBITION

2015 SHANGHAI REFRIGERATION FAIR

Hangzhou Friever Imp&Exp CO.,LTD.established in 2006,we supply equipment and spare parts in HVACR industry. Now We are supplying our products to the factories of refrigerator and freezer, water cooler, show-case and cold room, air-conditioner in more than 30 countries and areas. We export our products to the country like USA, Mexico, Albania, Sweden, Spain, Poland, France, Ukraine, Russia, Brazil, Argentina, Chile, Pakistan, Israel, Iraq, Egypt, Turkey, Macedon, Algeria, Jordan, Nigeria, Indonesia .....

Basic Information

Business Type: Manufacturer,Trading Company
Main Products: Copper tube aluminum fin condenser,roll bond evaporator, wire tube condenser, access valve,filter drier and other refrigeration parts,tools.
Location: Zhejiang, China (Mainland) Asia
Year Established:

Trade Capacity

Accepted Delivery Terms: FOB,CIF,EXW
Accepted Payment Currency: USD,RMB,EUR
Accepted Payment Type: L/C,T/T
Nearest Port: shanghai,ningbo,guangzhou

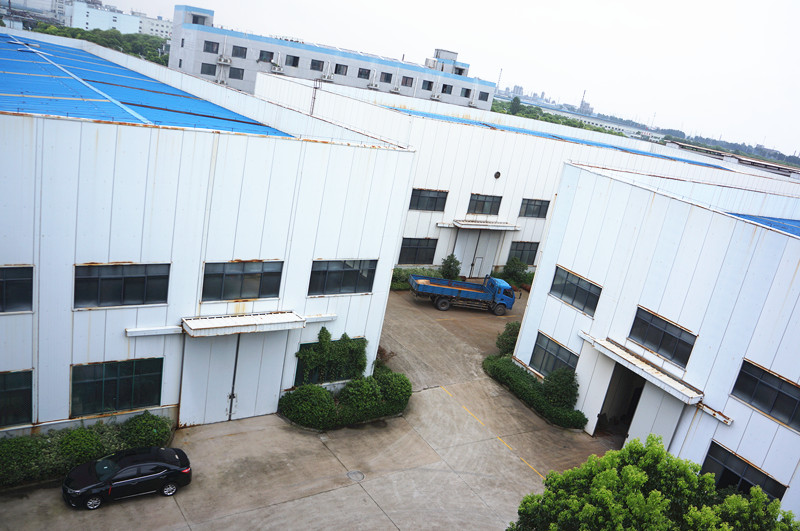

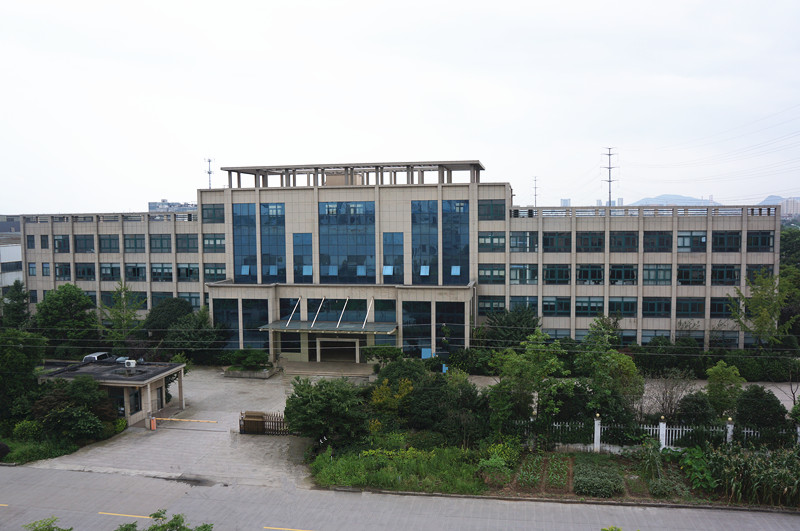

Company Photos
