Brand Name: ZOER
Model Number: ZRB-02
Place of Origin: China
Ball valves
product introduction
It is a manual adjustment stop valve for two-way flow, the valve seat and sealing part sealed well and can be used for refrigeration and air conditioning liquid and heat pipeline.
Features:
1. Flow without pressure fdrop
2. Rotate 1/4 circle valve from fully open to fully closed
3. Two-way flow, the installation of valve is not relative to flow direction in pipeline
4. Prevent the internal fluid.
Design functions:
1. ODF connection(TP2Y2)
2.Valve seat(HPb59-1)
3.Valve boday(HPB59-1)
4.Stainless steel ball(0Cr18Ni9Ti)
5.Detection port

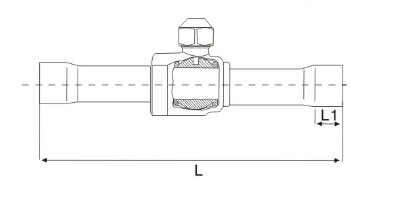

Specification:
Type |
Connection size(in) |
Dimensions(mm) |
|
L |
L1 |
||
ZRB-02 |
1/4 |
144 |
7 |
ZRB-03 |
3/8 |
144 |
8 |
ZRB-04 |
1/2 |
160 |
11 |
ZRB-05 |
5/8 |
160 |
15 |
ZRB-06 |
3/4 |
186 |
20 |
ZRB-07 |
7/8 |
186 |
20 |
ZRB-09 |
1-1/8 |
214 |
23 |
ZRB-11 |
1-3/8 |
248 |
25 |
ZRB-13 |
1-5/8 |
280 |
28 |
ZRB-17 |
2-1/8 |
304 |
33 |
ZRB-21 |
2-5/8 |
304 |
37 |
ZRB-25 |
3-1/8 |
304 |
41 |
