Brand Name: ZOER
Model Number: ZRH-515
Place of Origin: China
Heat exchanger of liquid receiver & accumulator
product introduction:
ZRH refrigeration heat exchanger accumulators&liquid receivers is designed with combination of liquid accumulator, liquid receiver and heat exchanger. ZRH can adjust the liquid flowing capacity, and more which can hava good refrigeration ability and assure the normal working of compressor.
Features:
1.Electric energy saving: using the wasting refrigeration capacity caused by the low pressure side of accumulator, to cool the liquid in the high pressure liquid receiver.
2.Increasing the refrigeration effect: heat exchange between the accumulator and liquid receiver increases over refrigeration or over heating of the system and thus increase refrigeration capability.
3. Avoiding the liquid compression: ensure no liquid returns to the compressor and causes liquid compressed.
4. No water driping and no heat preservation material needed
5.Saving works installation material and installation space
6.Overall aesthetic style, no water dripping and lubricating, and no pollution of the enviroment.

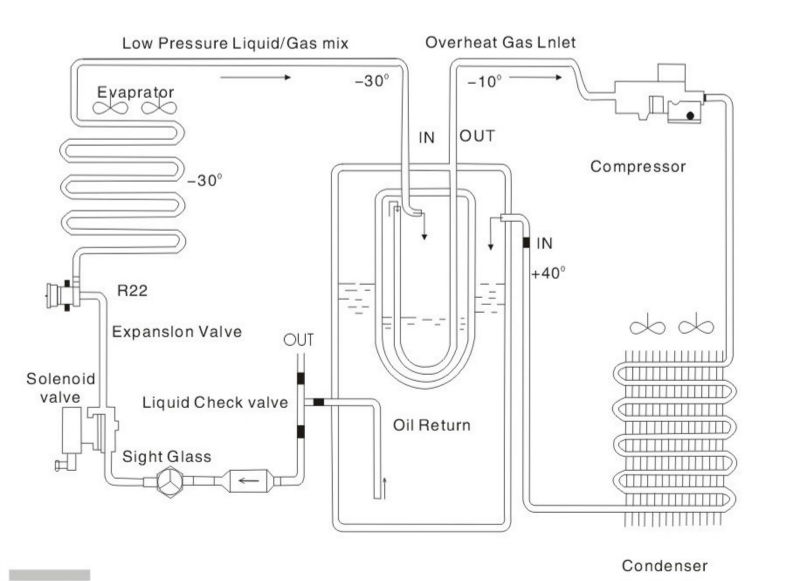

Working drawing:
Specification:
Type |
Connection size (in) |
Dimensions(mm) |
Volume(L) |
|||||||
Low pressure connection |
High pressure connection |
H1 |
H2 |
H3 |
H4 |
A |
B |
High pressure volume |
Low pressure volume |
|
ZRH-304 |
1/2 |
3/8 |
245 |
185 |
60 |
52 |
102 |
76 |
0.9 |
0.5 |
ZRH-305 |
5/8 |
3/8 |
240 |
190 |
60 |
52 |
140 |
102 |
1.9 |
0.9 |
ZRH-307 |
7/8 |
3/8 |
340 |
270 |
80 |
70 |
159 |
127 |
3.1 |
2.4 |
ZRH-411 |
1-1/8 |
1/2 |
346 |
248 |
76 |
80 |
219 |
165 |
4.5 |
4.2 |
ZRH-513 |
1-3/8 |
5/8 |
406 |
308 |
76 |
80 |
219 |
165 |
5.8 |
5.2 |
ZRH-515 |
1-5/8 |
5/8 |
445 |
375 |
76 |
80 |
219 |
165 |
8 |
6.3 |
ZRH-721 |
2-1/8 |
7/8 |
490 |
370 |
120 |
105 |
273 |
219 |
12 |
10 |

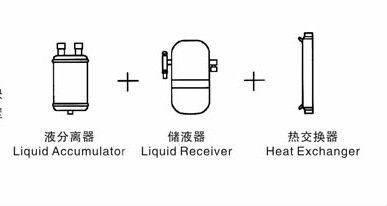

ONE PRODUCT EQUAL:
In our workshop:

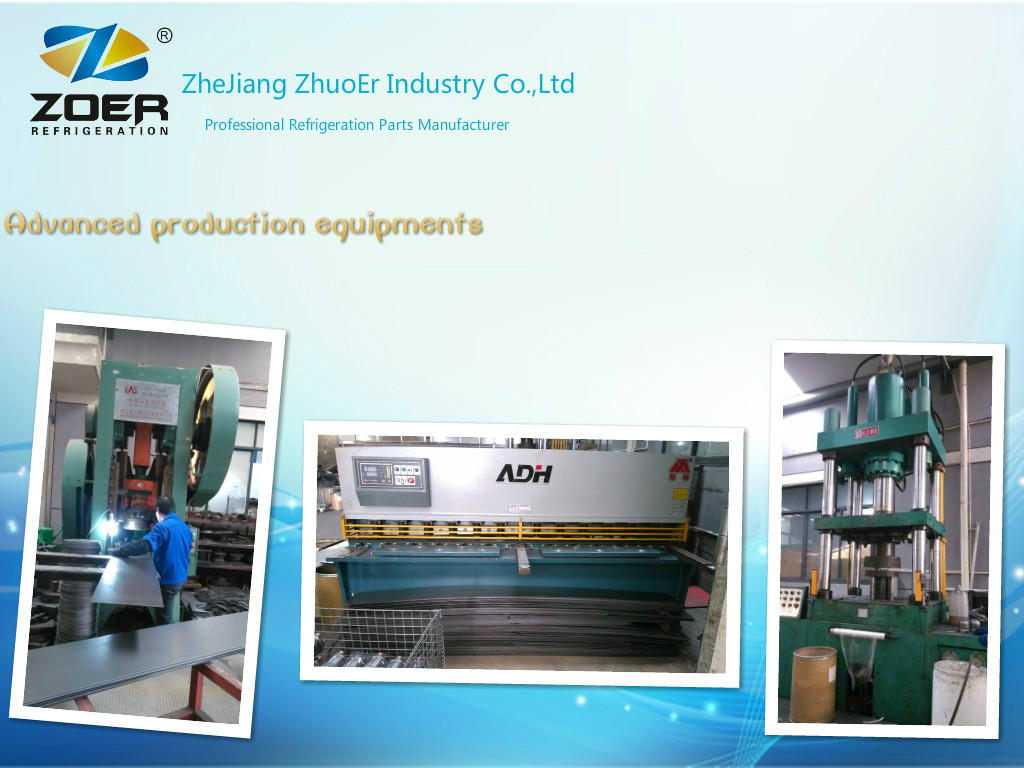

About our factory:
MOQ: Unlimited at first time
Delivery time:15-20days after receiving the deposite
If you have any requirement, you can inquiry us at any time.
