Brand Name: ZOER
Model Number: ZRR-2404
Place of Origin: China
Heat exchanger of gas -liquid separator
Product introduction:
ZRR refrigeration heat exchanger suction accumulator has strong construction. It tries it's best to prevent the refrigerant lost.
Features:
1.''U'' tube design keeps max. refrigerant flow and minimum oil blocking.
2.Saving refrigerant
3.Throttle hole matched well with system capacity assures optimum liquid refrigerant and oil that flow back to compressor.
4.Surface corrosion resistant static electrical painting procedure protecting the shell from the rust.
5.Max. working pressure:3.0MPA

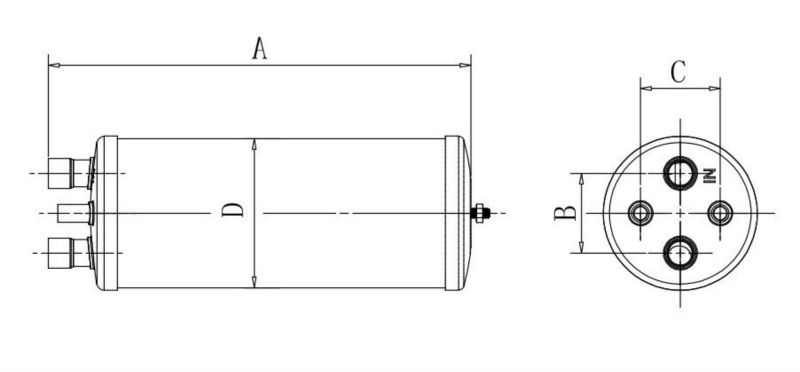

Specification:
Type |
Conection size(in) |
Dimensions |
Volume(L) |
||||
Low pressure connection |
High pressure connection |
A |
B |
C |
D |
||
ZRR-2404 |
1/2 |
3/8 |
254 |
52 |
52 |
102 |
1.5 |
ZRR-2405 |
5/8 |
3/8 |
294 |
52 |
52 |
102 |
1.8 |
ZRR-2406 |
3/4 |
1/2 |
316 |
75 |
75 |
140 |
3.8 |
ZRR-2407 |
7/8 |
1/2 |
356 |
75 |
75 |
140 |
4.3 |
ZRR-2411 |
1-1/8 |
5/8 |
450 |
85 |
85 |
159 |
7.3 |
ZRR-2413 |
1-3/8 |
3/4 |
574 |
85 |
85 |
159 |
9.6 |
ZRR-2415 |
1-5/8 |
7/8 |
624 |
85 |
85 |
159 |
10.4 |
ZRR-2417 |
2-1/8 |
7/8 |
629 |
85 |
85 |
159 |
10.4 |

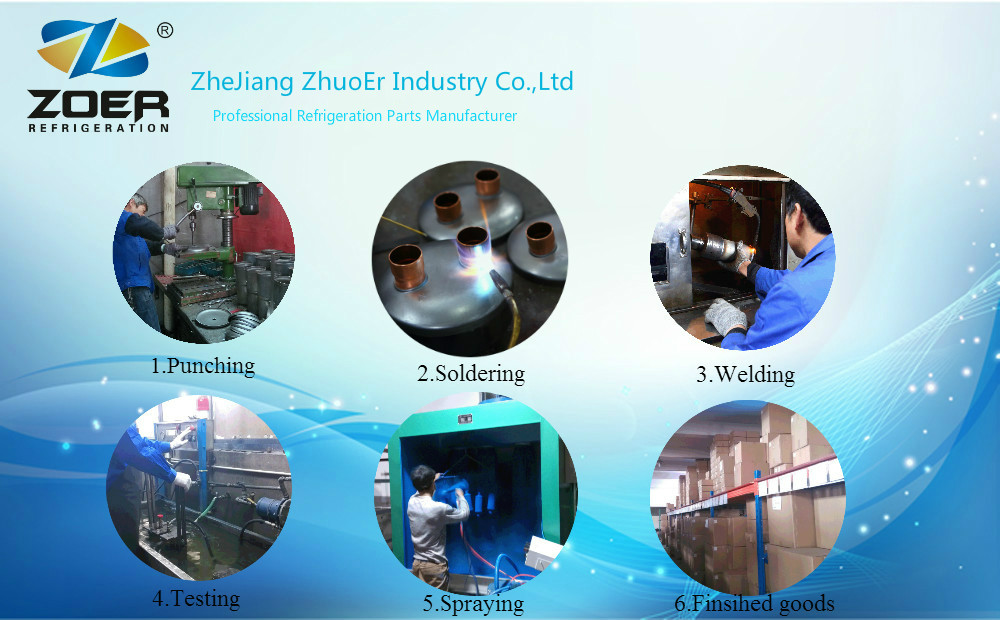

In our workshop:

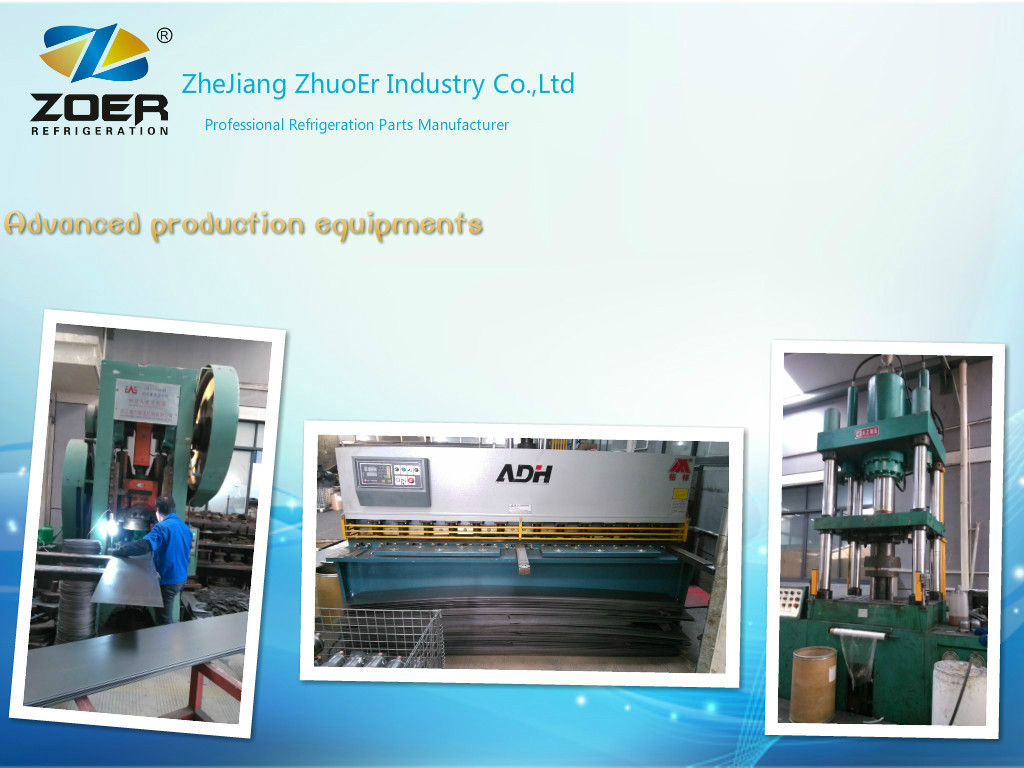

About our factory:
MOQ: Unlimited at first time
Delivery time:15-20days after receiving the deposite
If you have any requirement, you can inquiry us at any time.
