Brand Name: SUNRISE
Model Number: 032~419s
Place of Origin: CHINA
Introduction
The refrigerant must be clear and dry before entering into the expansion valve in the refrigerating recycle system, otherwise the contaminant will cause jam for expansion valve, And will cause ice jam if have the water. In order to prevent the above two bad results. We need to install an filter drier before the refrigerant
enters in to the expansion valve. It filtrate the scrap iron and welding slag. And dry the water in system. Liquid line filter drier is a premium compacted bead filter drier with a fine 20 micron fine outlet pad for maximum filtration.
Feature
·Drying and filtering effect of combining
·100% 3A Molecular sieve, High drying capacity, The formation of acid (hydrolysis) of the risk to a minimum
·Compatible with all HFC、HCFC refrigerants and oils
·Auto-compress device replaces the damaged molecular automatically
·ODF and SAE connection
·Highly corrosion-resistant power coating finish, can be used in all environments.;

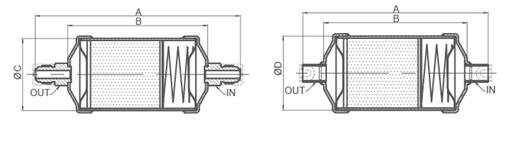

Diagram
Specification
| Model | Connection | A(mm) | B(mm) | C(mm) | Liquid Flow capacity Tons | |||||
| ODF | SA E | |||||||||
| R134a | R22/R410A | R407C | R404A/R507 | R502 | ||||||
| SCD-032 | 1/4” | 113 | 66 | 42 | 2 | 2.2 | 2.1 | 1.4 | 1.4 | |
| SCD-032S | 1/4” | 110 | 2.7 | 2.9 | 2.9 | 2 | 1.9 | |||
| SCD-033 | 3/8” | 123 | 3 | 3.3 | 3.2 | 2.2 | 2.1 | |||
| SCD-033S | 3/8” | 114 | 3 | 3.3 | 3.2 | 2.2 | 2.1 | |||
| SCD-052 | 1/4” | 119 | 76 | 64 | 2.1 | 2.3 | 2.2 | 1.5 | 1.5 | |
| SCD-052S | 1/4” | 116 | 3.3 | 3.6 | 3.5 | 2.4 | 2.3 | |||
| SCD-053 | 3/8” | 129 | 3.5 | 3.8 | 3.7 | 2.5 | 2.5 | |||
| SCD-053S | 3/8” | 120 | 4.4 | 4.8 | 4.7 | 3.2 | 3.1 | |||
| SCD-082 | 1/4” | 145 | 96 | 2.3 | 2.5 | 2.4 | 1.7 | 1.6 | ||
| SCD-082S | 1/4” | 142 | 3.1 | 3.4 | 3.3 | 2.2 | 2.2 | |||
| SCD-083 | 3/8” | 155 | 4 | 4.3 | 4.3 | 2.9 | 2.8 | |||
| SCD-083S | 3/8” | 146 | 4.5 | 4.9 | 4.8 | 3.3 | 3.2 | |||
| SCD-084 | 1/2” | 163 | 6.7 | 7.3 | 7.1 | 4.9 | 4.7 | |||
| SCD-084S | 1/2” | 148 | 7.1 | 7.7 | 7.5 | 5.1 | 5 | |||
| SCD-085 | 5/8” | 173 | 6.9 | 7.5 | 7.5 | 5 | 5.1 | |||
| SCD-085S | 5/8” | 146 | 7.5 | 7.9 | 7.9 | 5.4 | 5.6 | |||
| SCD-162 | 1/4” | 159 | 120 | 3.5 | 3.8 | 3.7 | 2.5 | 2.5 | ||
| SCD-162S | 1/4” | 156 | 4.4 | 4.8 | 4.7 | 3.2 | 3.1 | |||
| SCD-163 | 3/8” | 169 | 3.9 | 4.2 | 4.1 | 2.8 | 2.7 | |||
| SCD-163S | 3/8” | 160 | 4.4 | 4.8 | 4.7 | 3.2 | 3.1 | |||
| SCD-164 | 1/2” | 177 | 6.1 | 4.4 | 6.5 | 4.2 | 5.1 | |||
| SCD-164S | 1/2” | 162 | 8.5 | 9.2 | 9 | 6.2 | 6 | |||
| SCD-165 | 5/8” | 185 | 9.7 | 10.5 | 10.3 | 7 | 6.8 | |||
| SCD-165S | 5/8” | 160 | 10.1 | 10.9 | 10.7 | 7.3 | 7.1 | |||
| SCD-167S | 7/8” | 172 | 15.5 | 16.8 | 16.5 | 11.2 | 10.9 | |||
| SCD-304 | 1/2” | 250 | 191 | 76 | 8.1 | 8.8 | 8.6 | 5.9 | 5.7 | |
| SCD-304S | 1/2” | 235 | 10 | 10.8 | 10.6 | 7.2 | 7 | |||
| SCD-305 | 5/8” | 258 | 10.6 | 11.5 | 11.3 | 7.7 | 7.5 | |||
| SCD-305S | 5/8” | 233 | 12.5 | 13.5 | 13.3 | 9.1 | 8.8 | |||
| SCD-306 | 3/4” | 264 | 13 | 14.2 | 14 | 9.6 | 9.4 | |||
| SCD-306S | 3/4” | 239 | 14.8 | 16 | 15.7 | 10.7 | 10.4 | |||
| SCD-307S | 7/8” | 245 | 16.8 | 18.2 | 17.9 | 12.2 | 11.8 | |||
| SCD-309S | 1-1/8” | 245 | 19.6 | 21.2 | 20.8 | 14.2 | 13.8 | |||
| SCD-415 | 5/8” | 265 | 194 | 89 | 12 | 13 | 12.8 | 8.7 | 8.5 | |
| SCD-415S | 5/8” | 240 | 17 | 18.4 | 18.1 | 12.3 | 12 | |||
| SCD-417S | 7/8” | 252 | 20.3 | 22 | 21.6 | 14.7 | 14.3 | |||
| SCD-419S | 1-1/8” | 252 | 27.7 | 30 | 29.4 | 20.1 | 19.5 | |||
