3/4 Hight Current Thermostat Series - KSD301C

Price:

Open price

Min.Order Quantity:

100 Sets

Supply Ability:

100000 Pieces per Month

Port:

Shanghai,Ningbo

Place of Origin:

Zhejiang,China

Payment Terms:

Brand:

Longterm

Products Model:

KSD301C

Products Details
Company Profile

Quick Details

Brand Name: Longterm

Model Number: KSD301C

Place of Origin: Zhejiang,China

Packaging & Delivery

Packaging Details: CARTON
Delivery Detail: 5-30 DAYS

Specifications

KSD301C系列是3/4"双金属温控器，大电流/大功率控制，使用寿命长，多电路与多温度档位控制。最大电流能达到45A，产品有多种安装方式和接线端子。

产品认证：UL CUL TUV CQC

应用：加热和通风设备、热水器、贩卖机、空气压缩机、火炉、干衣机

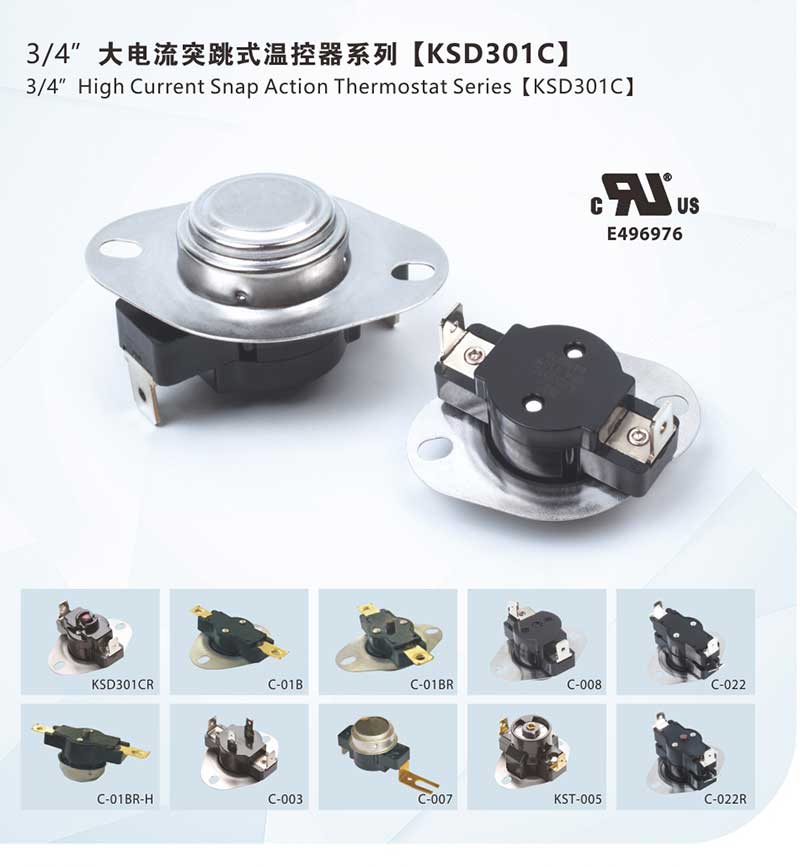

KSD301C SERIES is 3/4" (19mm) bimetal temperature controls.The snap action of the temperature sensing bimetal disc provides high-speed contact separation, resulting in exceptional life characteristics at electrical loads up to 45 amps at 250VAC.

A wide variety of terminal and mounting configurations are available for maximum design flexibility.

Available with an exposed or enclosed bimetal disc for either increased thermal response or protection from airbome contaminants. Available with automatic and manual reset SPST(Single Pole, Single Throw) or automatic reset SPDT (Single Pole,Double Throw) switch configurations.

Approval: UL CUL TUV CQC

Applications: Heating and ventilating equipmeng,Water heater,Dryers Vending machines,Air compressor,Furnaces
