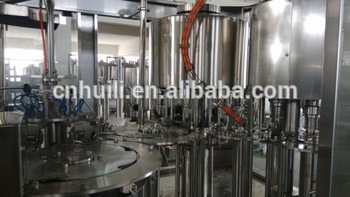

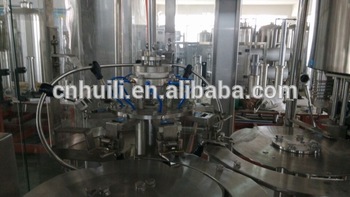

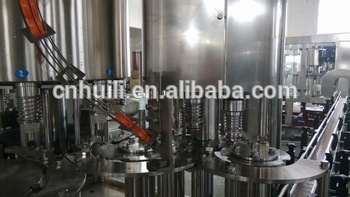

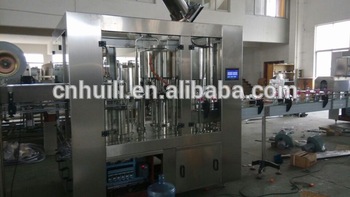

Pure/Mineral Water Production Line(Washing, filling and capping 3 in 1 machine )
Main material stainless steel 304 which is suitable for bottle size from 300ml to 2 Liter. It is an automatic washing, filling and capping three in one machine.
1)External dimensions: 2200×1550×2500 mm
(2)Weight: 2200kg
(3)Washing heads:12
(1)Filling heads:12
(4)Capping heads:5
(5)Production capacity: 4500bph at 500ml bottle
(6)Total power: 4.5KW
(7)Filling material: water
(8)Conveyor form: air conveyor
(9)Bottle application: plastic PET
Diameter of bottle body: Φ50mm—Φ100mm
Height: 150mm-320mm
Maximum of cap: Φ25-Φ40mm
Cap application: plastic
Adjustable form: transducer
(10)Volume of bottle: 330ml-2.L
(11)Power of cap unscramble:0.25KW
