Brand Name: Zhongwei
Model Number: zwhgR600a
Place of Origin: China
Isobutane/R600a eco-friendly Refrigerant Gas
R600a(Isobutane) is a new type hydrocarbon refrigerant, which is eco-friendly and energy saving. It has no damage to the Ozone layer, so it can well replace Freon.
The advantage
1) R600a refrigerant has no destructive effect to the ozone sphere and it conforms to “Montreal Agreement”.
2) The operating pressure of R600a is not high, so the noisy is low.
3) The quantity of R600a is more or less 50g which is less than other refrigerant for each refrigerator.
4) R600a has no special requirement to the system, so the system can runs reliably.
Physical Data:
Molecular Formula: C4H10
Molecular weight: 58.12
UN No.: 1969
HS code: 36069090
CAS No.: 75-28-5
Melting point ℃: -159.4
B.P. ℃: -161.48
Density: 0.589g/cm3
ODP: 0
GWP: 0.01
Quality data:
Specification Item |
Standard (%) |
Result |
Iso butane (wt %) |
99.9min |
99.91% |
N-butane (wt%) |
0.05max |
0.0335 |
Unsaturated hydrocarbon (ppm) |
10max |
0 |
sulfur (wt ppm) |
1ppm max |
0.62 |
moisture(wt ppm) |
15max |
10.0 |
Residues ml/100ml |
|
None |

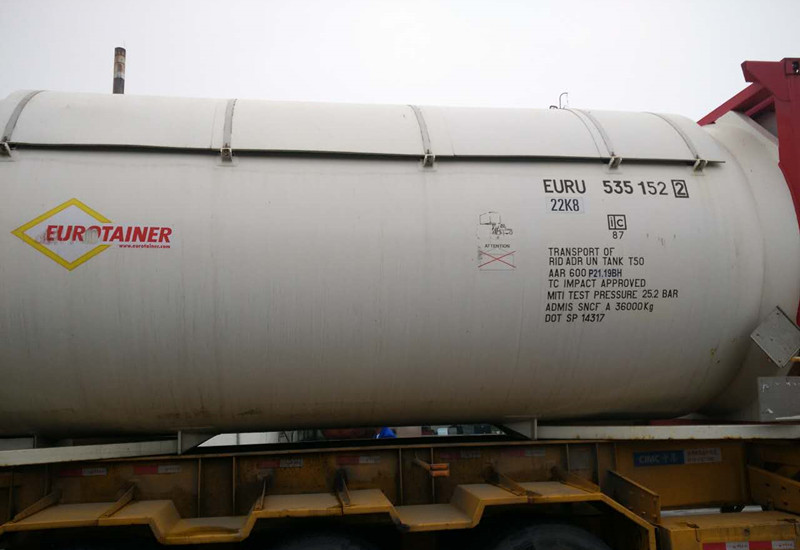

Tank package showing:
