SOLOON CONTROLS Fast Reaction Damper actuator S6061-16AFK/24V

FOB Price:

Open price

Min.Order Quantity:

1 Piece

Supply Ability:

1000 Piece per Week

Port:

BEIJING, TIANJIN

Place of Origin:

BEIJING

Payment Terms:

T/T

Brand:

SOLOON CONTROLS

Products Model:

S6061-16AFK/24V

Products Details
Company Profile

Quick Details

Brand Name: SOLOON CONTROLS

Model Number: S6061-16AFK/24V

Place of Origin: BEIJING

Packaging & Delivery

Packaging Details: Carton, pallet
Delivery Detail: Within 2 weeks after receiving the payment

Specifications

S6061-(08、16) Modulating rapid running damper actuator

Summary:

S6061-08/16Nm Modulating Type Rapid Running Damper Actuator is specially designed for small air damper and terminal control unit of air volume air system. Due to the small size and control flexibly, also usually used in the space where is limited.

Features:

l Proportional control

l Setting the independent running time

l Screw terminal connection

l Universal adapter: circle shaft size: max φ20mm, square shaft size: max 16*16mm

l Adjustable angle of rotation

l Can manually control by button

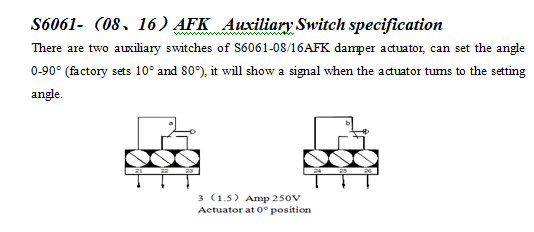

l With 2 auxiliary switches

l With Pre-set up function

Technical datasheet:

Item	Unit	S6061-08 AFK	S6061-16 AFK	S6061-08ANK	S6061-16ANK
Torque	Nm	8	16	8	16
Damper area	m²	2	4	2	4
Running time	sec	8	16	8	16
Power supply	V	24VAC/DV
Frequency	Hz	50/60 7.5W 50/60Hz
Running consumption	W	8.5W
Maintaining consumption	W	0.7W
Weight	Kg	1.1Kg

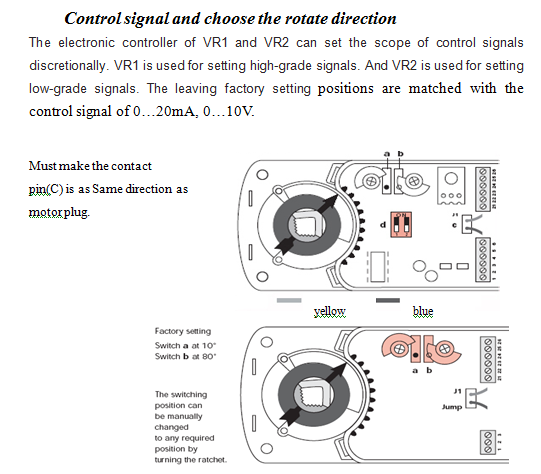

Control signal		0(4)…20mA 0(2)…10V

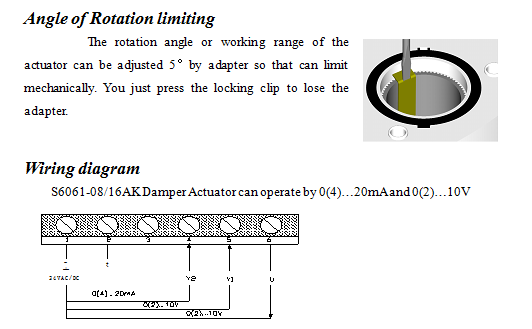

Rotation angle		0~90º（Max 93°）
Limited angle		5~85º（Per step 5º）
Auxiliary switch rating		3（1.5）Amp 250V
Life cycle		>70000 cycles
Noise level		45dB(A)
Electrical level		Ⅱ
Protection level		IP44 or IP54
Temperature		-20~+50℃
Humidity		5~95%RH
Storage temperature		-40~+70℃
Certificate		CE UL（Except 230V）

Remark: After lead out the Actuator wire by PG joint, the IP Protection can reach IP54.
