Plastic Blow Molding Mold Air Chiller

FOB Price:

USD 2000-18000 / Set

Min.Order Quantity:

1 Set

Supply Ability:

1000 Set per Quarter

Port:

Shanghai or Ningbo port

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C, T/T

Brand:

CNCEN

Products Model:

ZCL-xxA (05A)

Products Details
Company Profile

Quick Details

Brand Name: CNCEN

Model Number: ZCL-xxA (05A)

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: PLYWOOD + POLYETHILENE WRAPPING
Delivery Detail: Shipped in 15 days after payment

Specifications

Plastic Blow Molding Mold/5ton USA Scroll Copeland Chiller from CNCEN CHILLER

Product Description

Benefits

Fully Packaged with Integrated Pump and Tank
Lowest Operating Costs
Generous Operating Limits
Weatherproof Construction(Box type)
Individually Tested for Assured Quality
Extremely Precise Water Temperature Control

Features

Piston or scroll compressors
Eco-friendly & energy efficient
CE certificated
Innovative Evaporator-in-tank configuration for increased efficiency
Stainless Steel storage tank with insulation packing

High Efficient Air Cooled Industrial Chiller

I.Application :

CNCEN brand industrial chiller are the perfect solution for any application, in particular for the plastic field, such as : injection molding, extrusion(sheet & profile), blow molding, thermoforming, PET, plastic film, and other industrial field : electroplating (surface treatment), medicine, chemical, hydraulic system, leaser, shoe-making, electronic, print, etc

II.Quality in each parts

CNCEN brand CE certificate Air Cooled Chiller adopts international brand compressors made in USA,Germany, Italy and Japan, each chiller equipped with numerous safety devices for key parts, Quality, reliability and energy-saving are the three core philosophies embodied in all CNCEN products

III.Special requirements on air cooled chiller by customer :

Optional packages:

1. Differing Refrigerants:R22, R407, R134a can be supplied on request

2. Special voltages: 115V 220V~240V 50 Hz or 60 Hz (Single and Three Phase) are available

IV.Packing :

Export packing standard : PLYWOOD + POLYETHILENE WRAPPING

Shipping : BY SEA

Innovative solutions coupled with tailor made engineering represent the starting point of any new project for us at CNCEN CHILLER.

V.Warranty : 12 month after shipment

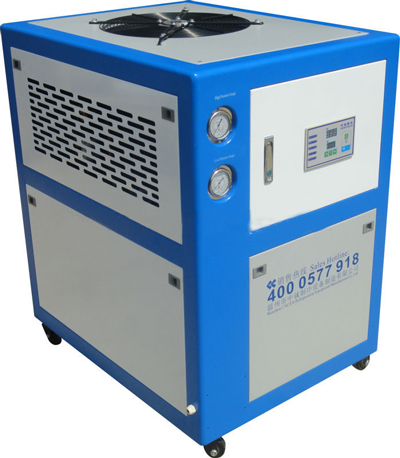

VI.CNCEN products' color can choose :

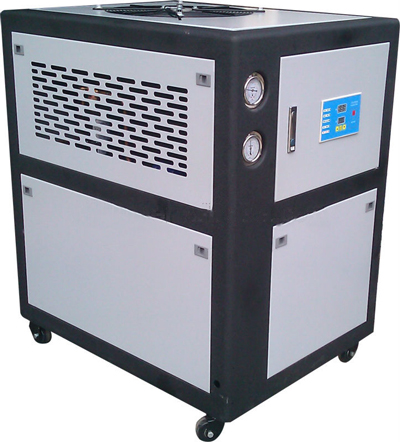

Air Cooled Chiller ZCL-05A/08A/10A
No	Parts Name			Quantities	Brand
1	Controller			1unit	CNCEN
2	Compressor			1unit	Copeland or Mitsubishi
3	Condenser V Shape Aluminum Fin			2 pcs	CNCEN
4	Evaporator			1 pcs	CNCEN
5	High & low pressure switch			1 unit	Fengsheng
6	Pressure Gauges			1pcs	changcheng
7	Refrigerant			R22 or R407 or 410
8	PUMP			1	Taiwan LF brand
9	Sensor			1	CNCEN
10	Circuit breaker			1	CHINT or Schneider
11	Compressor contactor			1	CHINT or Schneider
12	Compressor thermal overload			1	CHINT or Schneider
13	Pump contactor			1	CHINT or Schneider
14	Pump thermal overload			1	CHINT or Schneider
15	Filter			1	Danfoss
16	Frame			1	CNCEN
17	Fan			2	DUNLI

I.Techinical data
No	Item & Description
1	CNCEN Air Cooled Chiller
	Model		ZCL-05A	ZCL-08A	ZCL-10A
	Cooling Capacity	KW/50HZ	13	21	26
		KW/60HZ	15.75	25.2	31.5
		Kcal/Hr /50HZ	11350	18160	22700
		Kcal/Hr /60HZ	13000	20800	26000
	Input Power	KW	4.2	6.7	8.3
	Power Supply		3PH-380V/50HZ
	Refrigerant	Type	R22 or R407
	Refrigerant	Type of control	capillary vessel / expansion valve
	Compressor	Type	hermetic piston (scroll)
	Condenser V Shape	Type	Air Cooled Condenser shell and tube Highly effective red copper pipe socket string aluminum wing piece+low noise axial fan
	Condenser V Shape	Cooling Air Flow(m3/h)	5000	8000	10000
	Evaporator	Type	tank with coil / shell and tube
		Chilled fluid flow(m3/h)	2.13	3.27	4.26
		Volume(L)	130	220	220
		Inlet and Outlet Pipe Diameter (inch)	1"	1-1/2"	1-1/2"
	Internal Pump	Horsepower(kw)	0.37	0.75	0.75
	Internal Pump	Lift(m)	20	25	25
	Safety Protection	compressor over temperature, over current, high and low pressure, over temperature,flow Switch, phase sequence, phase-missing, exhaust overheating, antifreezing
	Dimension:	mm	12507501100	1360800*1400	14508501400
	Net Weight :	kg	258	378	417
II.Outstanding Features for CNCEN Brand Air Cooled Chiller :
1.Temperature range 5°C to 30°C
2.All Adopt imported compressor : piston & scroll type are optional.
3.Fin & V shape design air cooled condenser with excellent heat transfer and rapid cooling.
4.Adopts SUS made insulated water tank.
5.R22 or R407 or R410 for efficient cooling.
6.Other voltage 115V,208V,220V,230V/460V/480V/575V(Single and Three Phase) 50/60HZ available.
