Home > Products > Heating > Floor Heating
brass pex pipe floor heating manifold brass pex pipe floor heating manifold

brass pex pipe floor heating manifold

FOB Price:
USD 5-80 / Set
Min.Order Quantity:
10 Set
Supply Ability:
50000 Set per Month
Port:
shanghai
Place of Origin:
Zhejiang, China (Mainland)
Payment Terms:
L/C, T/T, Western Union
Brand:
OEM
Products Model:
QRM
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: OEM

    Model Number: QRM

    Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

  • Packaging Details: According to customer's requirment or standard
  • Delivery Detail: within 10 days

Specifications

radiant heating manifold type:2 loops-12loops
cetification:ISO9001-2008
small order accepeted
export to UK US Denmark,USA


radiant floor heating manifolds







Packaging & Shipping







Description:



The distribution manifolds are designed for low-temperature hot water radiant panel heating systems.
The supply distribution manifold equipped with built-in balancing valves, and the return distribution manifold equipped with built-in shut-off valves suitable for electro-thermal actuator which is controlled by room thermostat to meet your individual requirement for comfortable room temperature

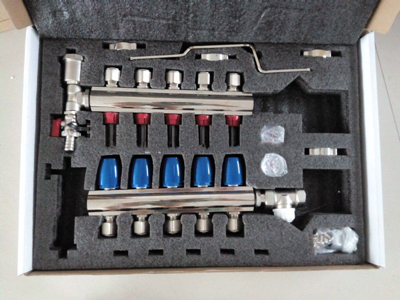

The heating circuit manifold includes:







-       Manifold supply and return bars



-       Brackets with sound absorption lining for wall mounting of manifold, 2 pcs. per manifold



-       Flow meter installed in the supply bar, to determine and display the flow rate of heating circuits manifolds, 1 piece for each outlet



-       Control valve installed in the return bar, for exact adjustment of water quantities, 1 piece for each outlet



-       Ball valves, 2 pcs. per manifold



-       Automatical vent valve, 2 piece,



-       Tee connector, 2 pcs. per manifold



-       Drain vavle 2 pcs per manifold



Material: Brass Hpb59-1
Pip-connector size fork outlet:20mm*2,16mm*2 multilayer or pex pipe
pip-connector distance:45mm,50mm,60mm,70mm(Optional)
Wall thickness:3.5mm
Loop:2 loops to12 loops (Optional)
Applied Medium:Water
Max Pressure: 10 bar
Max Temperature: 110°C
Certificate: ISO9001,CE,ROHS
Surface: Polished and chrome plated
Seal compose material:EPDM or NBR
Packing: bubble bag/inner box/outer box/pallet



 Features:

1. Hot-stamped brass body
2.Nature color, surface anticorrosion processing
3.Outlets in composite with the main body to exterminate the leakage possibility of manifolds
4.Axial static seal technology
5.No O-ring for pipe fittings
6.Freestyle combination for multi-loops





 Optional accessory

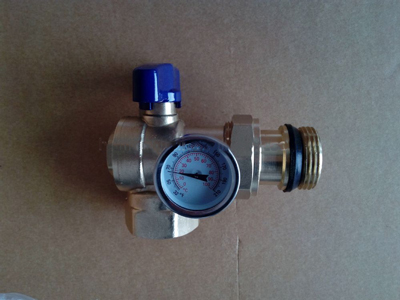

ball valve with temperature meter

viewable flowmeter

adapter

actuator

room temperature controller

bracket
