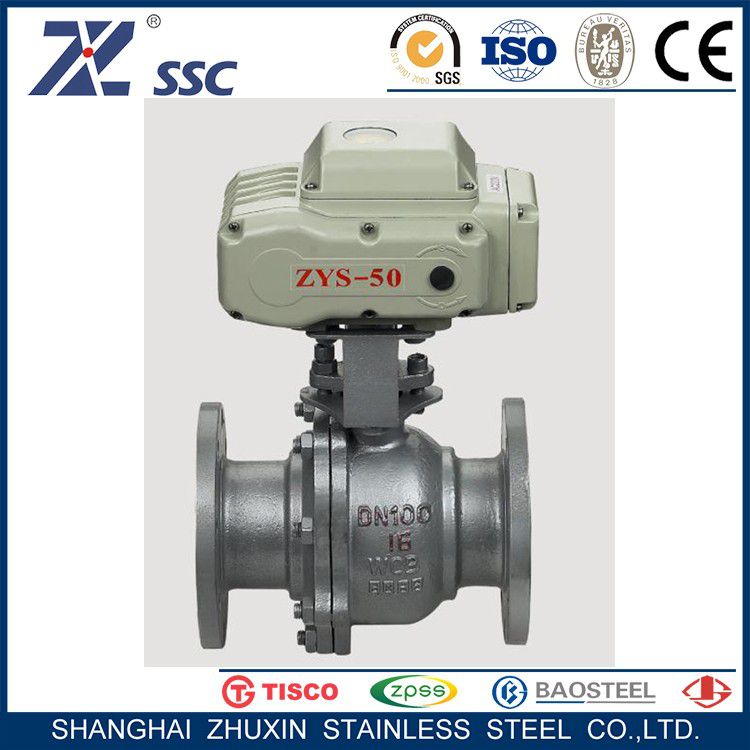

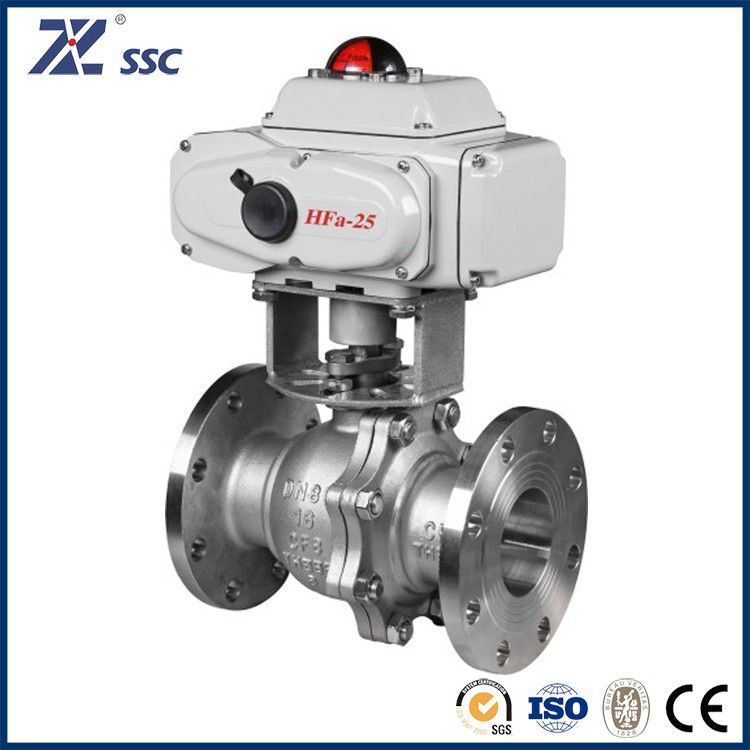

Low Price PN16 PN64 WCB CF8 CF8M 304 316 ANSI JIS DIN BS Flanged Electric Ball Valve with Actuator

FOB Price:

USD 1-1000 / Piece

Min.Order Quantity:

1 Ton

Supply Ability:

10000 Ton per Month

Port:

Shanghai

Place of Origin:

Shanghai, China (Mainland)

Payment Terms:

L/C, D/A, D/P, T/T

Brand:

TISCO JISCO BAOSTEEL ZPSS LISCO

Products Model:

Q9(11-41)F

Products Details
Company Profile

Quick Details

Brand Name: TISCO JISCO BAOSTEEL ZPSS LISCO

Model Number: Q9(11-41)F

Place of Origin: Shanghai, China (Mainland)

Packaging & Delivery

Packaging Details: Standard export seaworthy package or as requested
Delivery Detail: Shipped in 10 days after payment

Specifications

Product Name	Ball Valve with Electric Actuator
Material	Stainless Steel
Port Size	1/2'' - 4''
Connection	Thread/Weld/Clamp/Union/Flange
Thread End	NPT/BSP/DIN2999/DIN259/ISO228
Testing Standard	API-598/EN12266
Surface Finish	Annealing/Natural Anodization/Heat Treatment/ Polishing/Nickel Plating/Chrome Plating/Galvanizing etc

Processing Method	CNC Machining/Turning/Milling/Drilling/ Grinding/Broaching/Welding and Assembly

Dffset Distance	±0.02mm
Tolerance	±0.01mm
Certificate	ISO9001:2008

Specifications:

Nominal Pressure		PN1.6-6.4, Class 150/300, 10k/20k
Strength Testing Pressure		PT 1.5PN
Seat Testing Pressure(low pressure)		0.6MPa
Applicable Media	11 Q9₄₁F-(16-64)C	Water/Oil/Gas
	11 Q9₄₁F-(16-64)P	Nitric acid
	11 Q9₄₁F-(16-64)R	Acetic acid
Applicable Temperature		-40 ~ 180℃
(WCB,CF8,CF8M,Ti,Ni)

Materials of Mail Parts:

Description of Parts	Q41F-(16-64)C	Q41F-(16-64)P	Q41F-(16-64)R
Body	WCB	ZG1Cr18Ni9Ti CF8	ZG1Cr18Ni12Mo2Ti CF8M

Bonnet	WCB	ZG1Cr18Ni9Ti CF8	ZG1Cr18Ni12Mo2Ti CF8M

Ball	1Cr18Ni9Ti 304	1Cr18Ni9Ti 304	1Cr18Ni12Mo2Ti 316

Stem	1Cr18Ni9Ti 304	1Cr18Ni9Ti 304	1Cr18Ni12Mo2Ti 316

Sealing	Polytetrafluorethylene (PTFE)
Packing	Polytetrafluorethylene (PTFE)

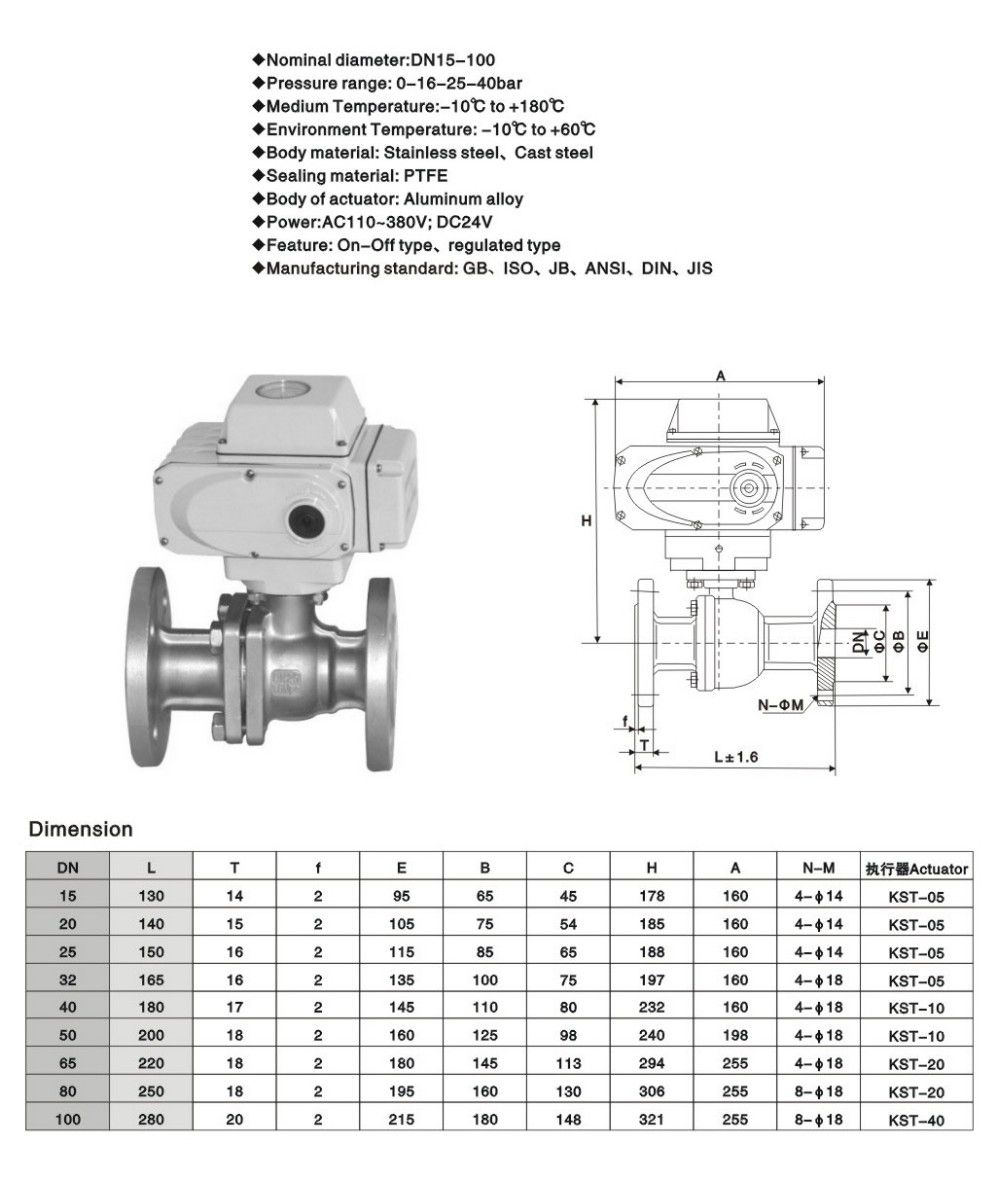

Main Outer Size:

Packaging & Shipping

Company Information

Zhuxin Stainless Steel, was established in 1998.

We have four branches in Shanghai, Jiangsu Province, Gansu Province, Qinghai Province.

Our company is one of the largest steel distribution companies in Northwest China.

We are specialized in stainless steel processing and sales.
