High Quality Spiral Quick Freezer for Fish

High Quality Spiral Quick Freezer for Fish

FOB Price:

USD 20000-80000 / Set

Min.Order Quantity:

1 Set

Supply Ability:

20 Set per Month

Port:

Tianjin Port

Place of Origin:

Tianjin, China (Mainland)

Payment Terms:

L/C, T/T, Western Union, Credit Card, PayPal

Brand:

Products Model:

SD-300 SD-500 SD-1000 SD-1500 SD-2000

Products Details
Company Profile

Quick Details

Brand Name: HX

Model Number: SD-300 SD-500 SD-1000 SD-1500 SD-2000

Place of Origin: Tianjin, China (Mainland)

Packaging & Delivery

Packaging Details: Seaworthy standard package for quick freezer.
Delivery Detail: Shipped in 50 days after payment

Specifications

High Quality Spiral Quick Freezer for Fish

Product Description

Brief Introduction

SD series net belt quick freezer has the simplest structure. According to different conveyor belt, it can be divided into mesh belt and plate belt. It uses a stainless steel net belt as conveyor, prepared foods put in containers or put on the stainless steel net belt directly and frozen by cooling air from bottom to top. To make sure that food can be frozen quickly and homogeneously.

Application	It is suitable for freezing small nub, strip, grain foods such as dumpling, spring roller, ice cream, seafood, fried food, fruit and vegetable and other small package food.
Product Feature	1.Guaranteed the food sanitation
	2.Freezing efficiency high, saving energy
	3.Proven and reliable design and manufacture, low maintenance
	4.Good products quality and high efficiency
	5.Different type is optional
	6.Run steady, reliability good, use life long
	7.Custom design

Main Technical Specification:

Model Date	SL-300D	SL-500D	SL-1000D	SL-800S	SL-1000S	SL-1500S	SL-2000S
Production (kg/h)	300	500	1000	800	1000	1500	2000
Freezing Temp.(℃)	-35	-35	-35	-35	-35	-35	-35
Evaporation Temp.(℃)	-42	-42	-42	-42	-42	-42	-42
Feeding Temp.(℃)	25	25	25	25	25	25	25
Out-feeding Temp.(℃)	-18	-18	-18	-18	-18	-18	-18
Cooling Capacity (kW)	50	80	160	128	160	238	318
Refrigerant	R717, R22
Products	Standard products like dumplings, spring roll, the freezing time is about 30min,the put density is 5.8kg/m^2.Other food need adjusted depend on above.
Defrosting Method	Water, Hot ammonia
Defrosting Times	1 time/12hours
Power (kW)	6.5	8.6	15	12.5	22	30	38
Frozen Dimension (LBH m)	6.53.52.85	6.53.53.6	9.04.53.6	123.53	124.53	124.53.6	1553.6

Notes:

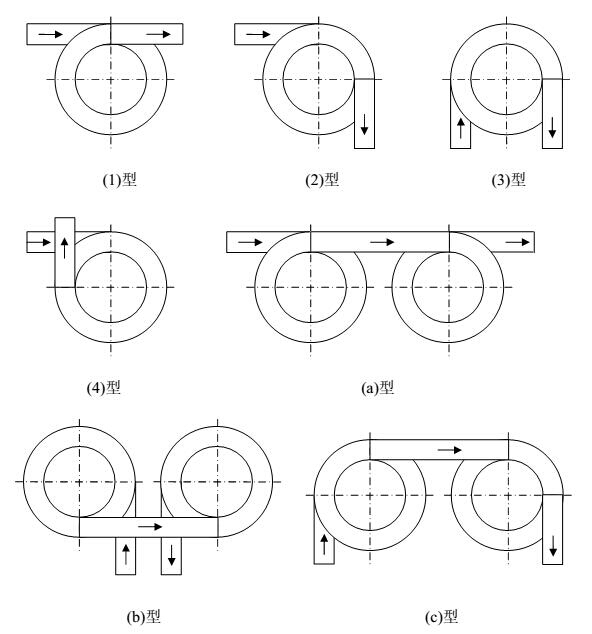

a. SL-XXXD is single spiral, SL-XXXS is dual spiral

b. the production capacity is at the base of 20g weight per dumpling.

c. the production capacity is different with frozen food sort.

D. besides above types, we can manufacture at the requests of clients.

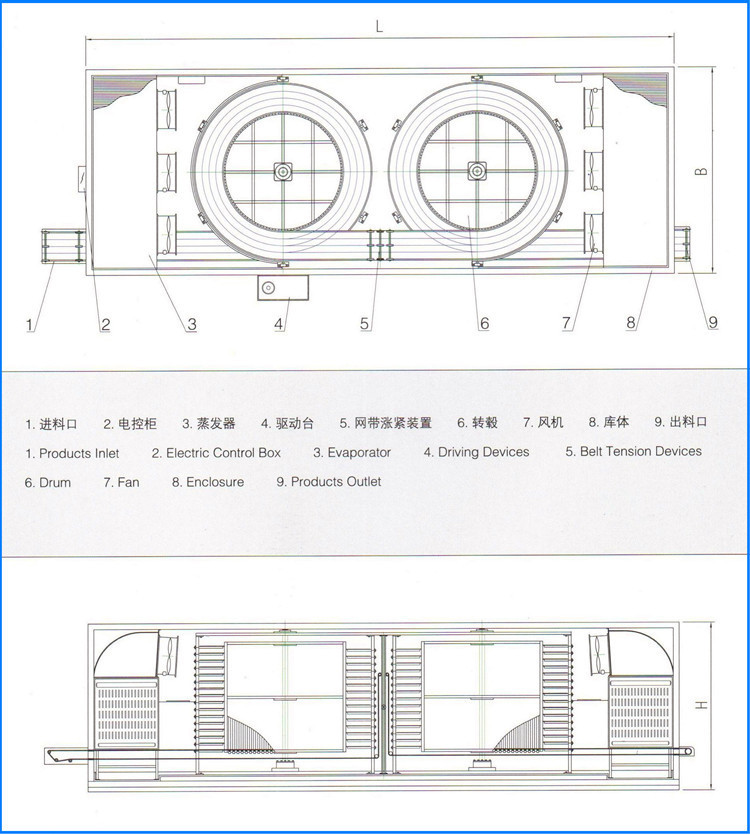

Structure Scheme

Drawing pictures

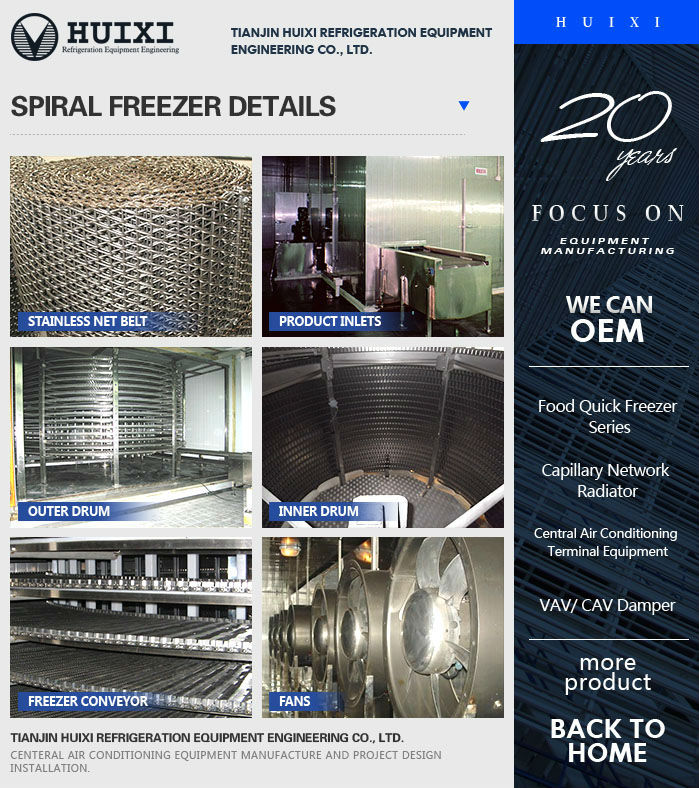

Detailed Images

Packaging & Shipping

Packaging Of new commercial spiral iqf freezer

Our Services

1.Offer the most professional design.

2.Expert engineers install for you overseas.

3.Free to amend and change the parts in two years.

4.Free technical guidance from our professional technical team.

4.We can provide refrigeration units and design parameter.
