Brand Name: OCSTAT
Model Number: Q3
Place of Origin: CHINA

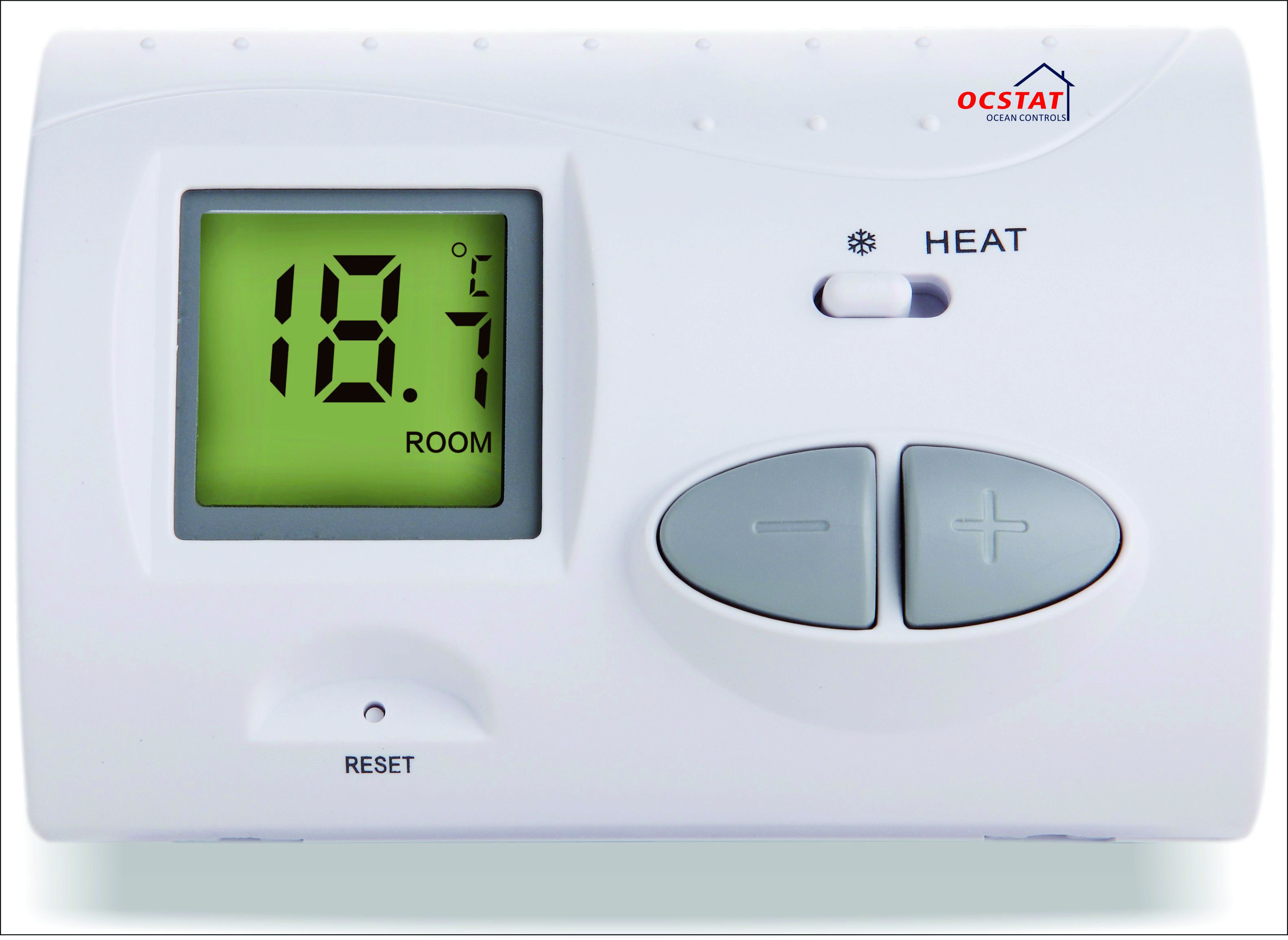

Model Q3
Transmitter: Receiver:
1. POWER:2*AA size battery 1. AUTO/MANUAL Switch
2. Temperature range:5℃-35℃ in 0.5℃ 2. LED system indicator
3. Control temp.range:10℃-30℃ in 0.5℃ 3. Contact rating:8(2)A 230VAC Max
4. 868Mhz for more stable communication
5. ON/OFF switch
6. Bat-low indicator
Applications:
1. HVAC System
2. Building ventilation systems
3. Industry ventilation systems
4. Airport,train station,shopping mall, office, classroom and other public places for air quality indication heat/cool
5. Lab.wrehouse and other places to detect CO2+TEMP.+RH%
6. All other ventilation systems
Model No.: |
Q3 |
Switchable Voltage: |
24 V AC / DC,…250 V AC; 50 Hz |
Switchable Current: |
8 A (2 A inductive load) |
Programmability: |
Non-Programmable |
Temperature Range (℃): |
5℃-35℃ in 0.1℃ |
Control Temp.Range (℃): |
10℃-30℃ in 0.5℃ |
Temp.Meas.Accuracy: |
±0.5°C |
Sensitivity: |
±0.2°C / ±0.3°C |
Defrosting Temperature: |
+7°C |
Power Method: |
2x1.5 V AA alkaline batteries (LR6 type) |
Power Consumption: |
1.5 mW |
Dimensions: |
110 x 75 x 45 mm |
Temp. Sensor Type: |
NTC 10 kΩ ±1% at 25°C |
