Soloon Electric Control Actuator S6062-05/10

FOB Price:

USD 49.21-95.24 / Piece

Min.Order Quantity:

1 Piece

Supply Ability:

3000 Piece per Week

Port:

Tianjin and Beijing

Place of Origin:

Beijing, China

Payment Terms:

T/T

Brand:

Soloon

Products Model:

S6062

Products Details
Company Profile

Quick Details

Brand Name: Soloon

Model Number: S6062

Place of Origin: Beijing, China

Packaging & Delivery

Packaging Details: Paper carton with pallet
Delivery Detail: Within 2 weeks after receiving the payment

Specifications

S6062-05/10 Electric Control Actuator

Models

S6062-05/10 has two models:

S6062-05/10A: 0~10V, 2~10V; 0~20mA, 4~20mA input signal, proportional control.

S6062-05/10D: synchronic reversible motor, electric wiringdiagram.

Features

Die cast aluminum stand, light volume, easy for transportation and installment.
synchronic reversible motor, hysteresis clutch separates the motor output shaft and drive part when reaching limiting position, then protecting the motor.
High accuracy, fast reaction, supply for valve position feedback signal.
Standard manual control configuration.

Specification

Model	S6062-05/10D	S6062-05/10A
Action	reversible	direct or reverse
Control	incremental	proportional
Input Signal	―――	0~10V,2~10V; 0~20mA,4~20mA
Output Signal	―――	0~10V,2~10V; 0~20mA,4~20mA
Motor	Synchronic and reversible
Rating	24VAC 50/60Hz 3W
Consumption	―――	3W
Force	500N/S6062-05 ; 1000N/S6062-10

Material (all types)	Gear: nylon Cradle: galvanized steel plate Stand:die cast aluminum Cover: ABS engineering plastics
Material (all types)
Protection	IP40 or IP42
Full Stroke Time(25mm)	100s
Ambient Temperature	Operation: -15 ~ 55^oC Storage:-20 ~ 65^oC
Relative Humidity (all types)	non condensing	90% non condensing
Net Weight	0.66Kg	0.72Kg

Remark

The actuator connection by PG joint after derivation, protection grade could be IP42.

Attention

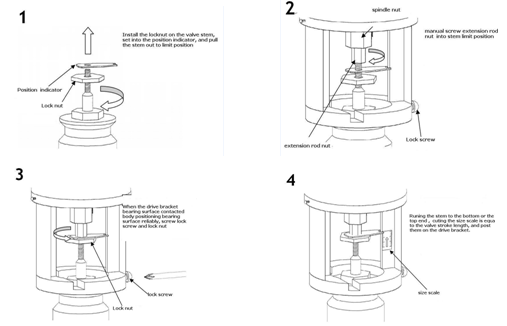

1. Mounting Order

A. Actuator mechanical connection installed with the body.

B. Connect the power supply with control signal lines.

C. Dial the toggle switch to the required position.

D. Turn on the power supply, the indicator light (power) in PCB is on, press the "red" adaptive button about 3 seconds, loose the button after the operation light (RUN) in PCB start flashing , at this point, the valve stem down to the bottom firstly, then move up to the top, RUN is flashing all the time. When the lights stop flashing, the adaptive process of electric drives with the valve body end, the actuator into the regular operation state and will be operation in accordance with the control signal.

2. Valve Position Feedback Signal

Actuator can provide real-time position feedback signal, feedback signal direction always correspond to the change of the control signal.

Variable feedback signal direction.

3. Indicator Light

Power indicator light (red): the light remains on during the actuator normal work.
Working indicator light (red and green) : the red indicator light is on when actuator shaft running up ;the green light is on when actuator shaft running down ;The lights go out when the actuator stops.

4. Reset the dial switch state, the changes take effect after the actuator re-start after power on.

5. Manual operate the actuator, please be sure to disconnect the power supply; manual axial direction please refer to the sketch map.

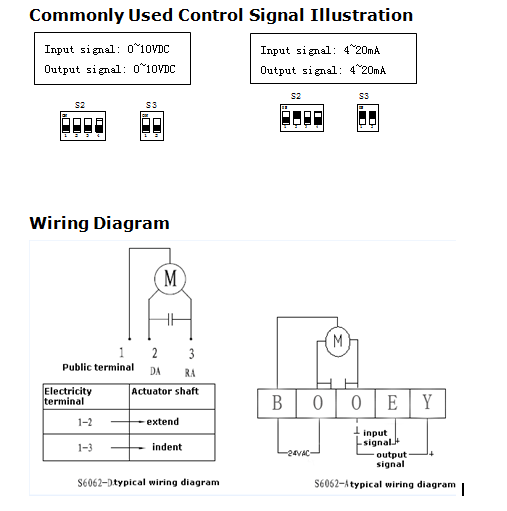

Dial Switch Instructions

S2 Dial Switch	Function	Set Value Function Description
1	working curve	on	LOG: equal percentage flow feature.
		off	LIN: equal linearity flow feature.
2	control/Valve position feedback signal start point setting	on	20%:control/Valve position feedback signal start point is 20%. (feedback signal is 4~20mA or 2~10VDC)
		off	0:control/Valve position feedback signal start point is 0. (feedback signal is 0~20mA or 0~10VDC)
3	working model	on	DA: control signal increased, actuator shaft extended running, control signal decreased, actuator principle axis indented running.
		off	RA: control signal increased, actuator shaft indented running, control signal decreased, actuator principle axis extended running.
4	cutting signal model (control signal terminal vacant)	on	DW: control signal is voltage or current type, cutting off the signal line, actuator inside would provide a minimum control signal.
		off	UP: 1)control signal is voltage type, cutting off the signal line, actuator inside would provide a maximum control signal. 2)control signal is current type, cutting off the signal line, actuator inside would provide a minimum control signal.

S3 Dial Switch	Function	Set Value Function Description
1	control signal model	on	II: control signal is current type.
		off	UI: control signal is voltage type.
2	Valve position feedback signal model	on	IO: Valve position feedback signal is current.
		off	UO: Valve position feedback signal is voltage.
