Refrigeration Vibration absorber Refrigeration Vibration absorber

Refrigeration Vibration absorber

FOB Price:
USD 3-100 / Piece
Min.Order Quantity:
50 Piece
Supply Ability:
100000 Piece per Month
Port:
ningbo/shanghai
Place of Origin:
China
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Brand:
ZOER
Products Model:
ZRP-5
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: ZOER

    Model Number: ZRP-5

    Place of Origin: China

Packaging & Delivery

  • Packaging Details: inner box with carton
  • Delivery Detail: 25days

Specifications

Vibration absorbers

product introduction:

The vibration absorber are designed to be installed in the suction and exhaust pipes of air conditioning and refrigeration systems to reduce vibration in the transmission of compressor-induced vibration through system piping.

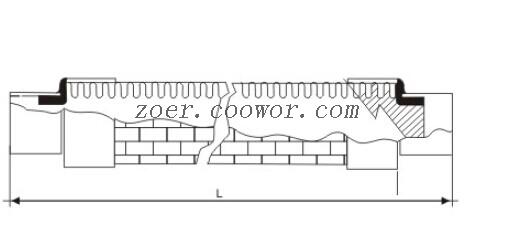

The vibration absorber is made of deep pitch corrugated tubing for increasing tube flexibility and vibration absorption, covered by high tensile stainless steel mesh for superior strength. The corrugated tubing and stainless steel mesh reinforced by ferrules at each end, and the copper tube connected to internal thread is welded by high temperature brazed alloys.



Features:

1. Hose and copper tube are brazed welded.;

2. All parts have been cleaned and dehydrated for refrigeration service;

3. Each product is vacuumized and tested by stress tests, and sealed in plastic film;



Design functions:

1. Pipe joints;

2. Stainless steel metal ferrule;

3. Stainless steel Soft tube;

4. Stainless steel metal cable

Specification:

Type

Connection size(in)

Dimensions(mm)

Max. working pressure(Mpa)

Max. limit pressure(Mpa)

L

ZRP-3

3/8

210

3.1

15.5

ZRP-4

1/2

230

3.1

15.5

ZRP-5

5/8

250

3.1

15.5

ZRP-6

3/4

260

3.1

15.5

ZRP-7

7/8

300

3.05

15.25

ZRP-9

1-1/8

330

2.8

14

ZRP-11

1-3/8

400

2.8

14

ZRP-13

1-5/8

400

2.7

13.5

ZRP-17

2-1/8

520

2.65

13.25

ZRP-21

2-5/8

620

2.5

12.5

ZRP-25

3-1/8

680

2.0

10.0

ZRP-29

3-5/8

820

2.0

10.0

PERFORMANCE:
