Pancake Coil tube

FOB Price:

USD 4-5 / Kilogram

Min.Order Quantity:

1000 Kilogram

Supply Ability:

30000 Ton per Year

Port:

SHANGHAI / NINGBO

Place of Origin:

CHINA

Payment Terms:

L/C, D/P, T/T

Brand:

MINGHUA

Products Model:

PANCAKE COIL TUBE

Products Details
Company Profile

Quick Details

Brand Name: MINGHUA

Model Number: PANCAKE COIL TUBE

Place of Origin: CHINA

Packaging & Delivery

Packaging Details: CARTON BOX / PLYWOOD PALLET
Delivery Detail: 5-10DAYS(DEPENDING ON ORDER QUANTITY)

Specifications

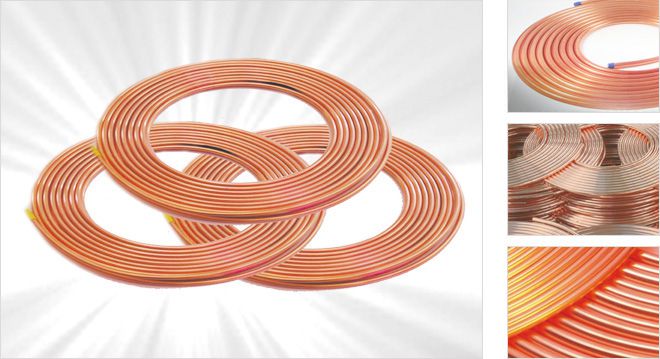

Cuilong Pancake Coil Tube

Technical Specification:

It is single-layer, double-layer of multi-layer spiral coil tube with orderly alignment and compact structure which is easy for transportation and carrying.

Application:
The tube especially used as the connecting tube in the air-conditioner or refrigerating equipments, and the general liquid or gas connecting tube.

Technical Specification:

外径范围 Outer Diameter Range (mm)	壁厚 Wall Thickness （mm）	盘管外径 O.D. of Spiral Coil Plane （mm）
4-6.35	0.35-1.25	500
6.35-8		550
8-12		600
12-15		650
15-19		700
19-22		750

The products above could be produced as per the standard of GB/T17791 ofr ASTM B280

产品形式 Product form	标准长度 Standard length（m）
单层Single Layer	15
双层Double Layer	30
多层Multi-Layer	＞30

Mechanical Characteristic of Copper Tubes:

状态 Temper	抗拉强度 Tensile Strength (Mpa)	延伸率 Elongation (%)	硬度 Hardness HR15T	晶粒度 Grain Size(mm)
硬Hard	>294	-	>100	-
半硬1/2Hard	245-314	-	80-100	-
轻拉1/4Hard	>206	>40	>65	<0.040
软Annealed	>206	>40	>60	0.015-0.060

JIANGSU CUILONG PRECISION COPPER TUBE CORPORATION established in 1986,with more than 30 years' experience in producing copper tube.
At present,Cuilong has 2 complete sets of high efficiency tube production lines from melting, extruding, rolling, stretching, annealing to finished copper tubes. Its annual production capacity is thirty thousand tons.
It is the biggest enterprise producing high efficiency heat exchange tube in china.Cuilong obtained the certificate of ISO 9001 in 1999, ISO 14001 and OHSAS 18001 certificate in 2009, and PED certificate in 2013.

Basic Information

Business Type: Manufacturer
Main Products: Copper and copper alloy tube:1.pancake coil tube 2.LWC 3.high efficiency heat exchange tube 4.inner groove tube 5.high fin tube. High efficiency heat exchange tube including:condenser tube,evaporator tube,falling film evaporator tube,saw tooth tube.
